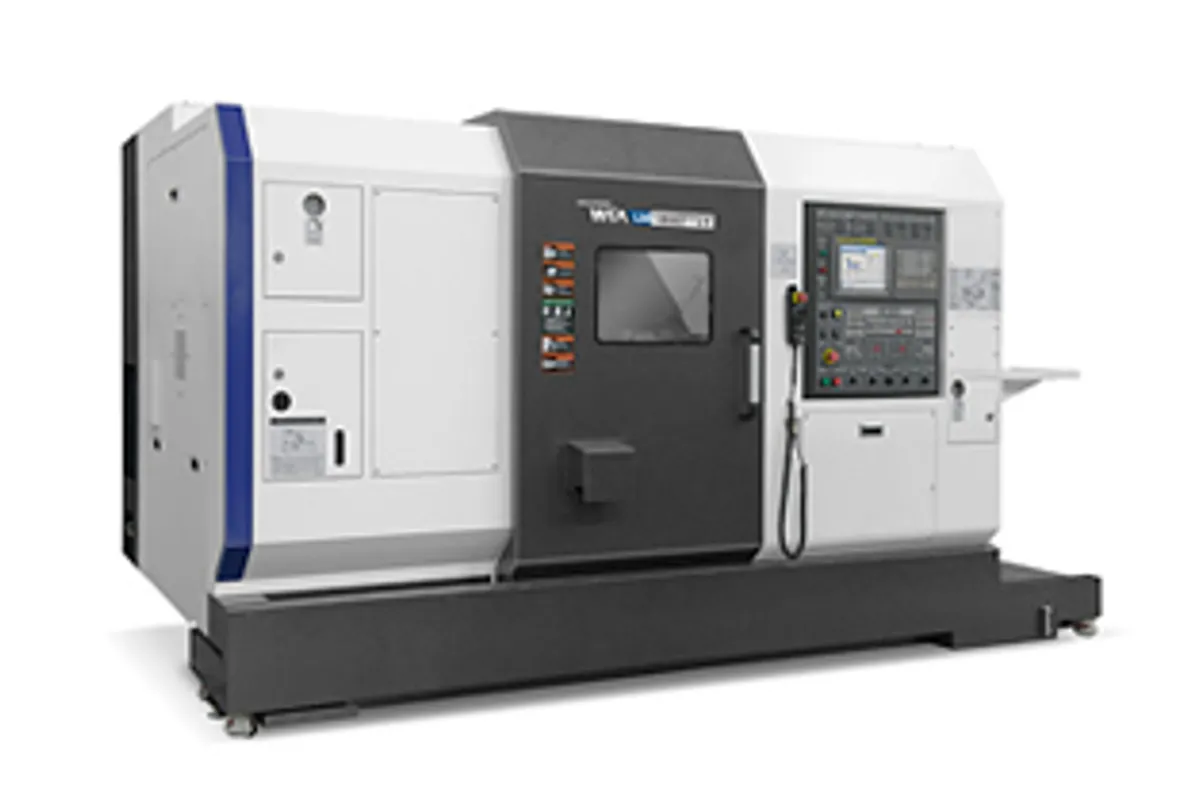

Hyundai WIA LM1600TT Series
Key Specifications
Y Travel
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
max turning diameter
Overview
The Hyundai WIA LM1600TT Series is a twin-turret, twin-spindle CNC turning center available in multiple configurations: LM1600TTS (twin turret, sub-spindle), LM1600TTMS (twin turret, milling, sub-spindle), and LM1600TTSY (twin turret, sub-spindle, Y-axis). With a 6-inch main chuck and 6-inch sub-spindle, twin 12-station turrets, and a built-in spindle reaching 6,000 RPM, the LM1600TT is engineered for maximum throughput on small-diameter complex parts.
The built-in main spindle delivers 15/11 kW (20/15 hp) at up to 6,000 RPM with 208/140 N.m of torque. The built-in design eliminates belt vibration and enables smoother surface finishes at high RPM -- critical for the small-diameter precision parts this machine targets. The sub-spindle matches at 6,000 RPM for full-speed backworking capability. Both spindles use 6-inch chucks, providing symmetric capability for main and sub operations.
The twin turret configuration with 2 x 12 tool stations (24 total) is the LM1600TT's primary productivity advantage. Both turrets can operate simultaneously -- one on the main spindle and one on the sub-spindle, or both on the same spindle for balanced turning. LM guideways deliver the positioning speed needed for short-cycle production, with rapid traverse rates of 20/20/40/40/40 m/min across the five axes. The TTMS variant adds 5,000 RPM live milling to the upper turret, while the TTSY variant adds both live milling and Y-axis capability (100 mm travel) for off-center operations.
New LM1600TT Series machines price between $160,000 and $250,000 depending on configuration. The series competes with the existing Hyundai WIA LM1800TTSY (8-inch class), Nakamura-Tome SC-100/150, and Star SR-38. For high-volume production of small, complex parts in automotive, medical, and precision component manufacturing, the LM1600TT delivers twin-turret simultaneous machining in a compact 6-inch platform.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 230 mm (9.1 in) |
| Max Turning Length | mm |
| Main Chuck Size | 6" (150 mm) |
| Sub Spindle Chuck | 6" (150 mm) |
| Max Spindle Speed | 6,000 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) |
| Spindle Torque | N.m |
| Spindle Drive | Built-in |
| Upper Turret | 12 stations |
| Lower Turret | 12 stations |
| Total Tool Stations | 2 x 12 (24 total) |
| Tool Size | mm |
| Travel X1 | 165 mm (6.5 in) |
| Travel X2 | 195 mm (7.7 in) |
| Travel Z1 | 700 mm (27.6 in) |
| Travel Z2 | 720 mm (28.3 in) |
| Travel Zb | 700 mm (27.6 in) |
| Y-Axis Travel | 100 mm (3.9 in) (TTSY only) |
| Rapid Traverse Rate | 20/20/40/40/40 m/min X1/X2/Z1/Z2/ZB |
| Live Tool Speed | 5,000 RPM (TTMS/TTSY variants) |
| Guideway Type | LM guides |
| Machine Configuration | Twin-turret, twin-spindle mill-turn |
| CNC Control | Fanuc 31i-B |
| Description | Unit |
| Max Turning Dia | mm |
| Chuck Size | inch |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Milling Tool Speed | r/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 6,000 RPM built-in spindle provides the highest speed in Hyundai WIA's lathe lineup, enabling maximum surface speed on small-diameter precision parts
- Twin turret with 24 total tool stations allows simultaneous cutting on both spindles, reducing cycle times by 30-50% versus single-turret machines
- Built-in spindle design eliminates belt vibration for superior surface finish quality at high RPM on precision components
- 40 m/min rapid traverse on Z-axes is exceptionally fast, minimizing non-cutting time in short-cycle production programs
- TTSY variant with Y-axis adds off-center milling capability for complete done-in-one production of complex parts
- Symmetric 6-inch main and sub chucks provide equal capability for front and back operations without workholding compromise
Limitations
- 6-inch chuck limits the machine to small-diameter parts only -- shops with larger part diameters need the LM1800TTSY or L-SY series
- 15 kW spindle power is modest for heavy roughing -- the machine is optimized for small parts rather than aggressive material removal
- Twin-turret programming complexity requires experienced programmers and multi-channel CAM software
- LM guides prioritize speed over vibration damping -- not ideal for heavy interrupted cuts on rough castings
Best For
Frequently Asked Questions
01
Hyundai WIA's distributors quote the LM1600TT per variant, and the variant is the single biggest driver: TTS is turning only, TTMS adds 5,000 rpm live tooling to the upper turret, and TTSY adds the 100 mm Y-axis on top of that. Beyond the variant, the bar feeder, chucks and collets, and holders for 24 turret stations across two turrets accumulate quickly on a twin-turret machine. Multi-channel CAM licensing for twin-turret programming is a real cost too, and it is not part of the machine quote.
02
TTS = Twin Turret + Sub-spindle (turning only). TTMS = Twin Turret + Milling + Sub-spindle (adds 5,000 RPM live tooling to upper turret). TTSY = Twin Turret + Sub-spindle + Y-axis (adds both live tooling and Y-axis for off-center milling). Each step up adds capability and cost.
03
The LM1600TT has 6-inch chucks (vs. 8-inch), faster spindle (6,000 vs. 5,000 RPM), and faster Z-axis rapids (40 vs. 30 m/min). The LM1800TTSY handles larger parts with more spindle power (18.5 kW vs. 15 kW). Choose the LM1600TT for small parts at maximum speed; the LM1800TTSY for larger parts requiring more power.
04
Multi-channel CAM is essential: GibbsCAM (strong multi-turret support), ESPRIT (Hexagon), Mastercam Mill-Turn, and SolidCAM all support twin-turret synchronization. The Fanuc 31i-B control handles the multi-channel G-code these CAM systems generate for coordinating two turrets and two spindles simultaneously.
