Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

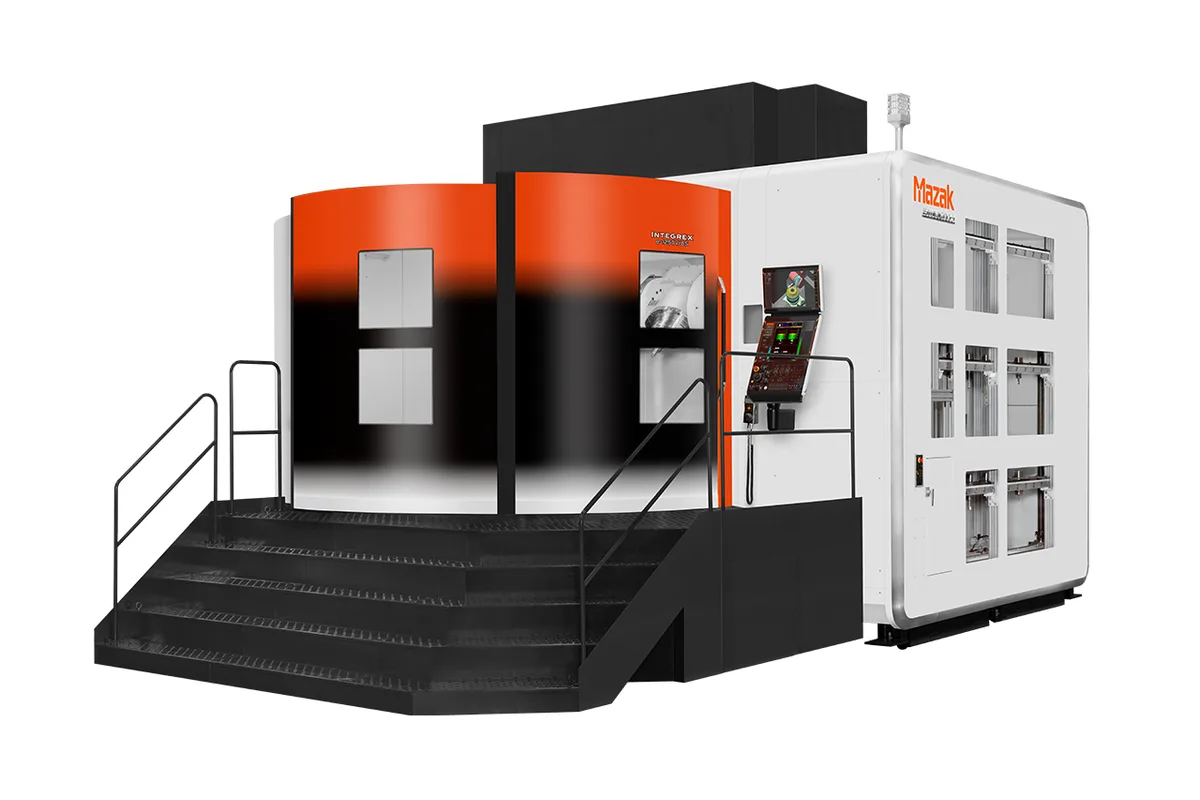

Mazak INTEGREX e-1250V/8

Est. $1,000,000 - $2,000,000 Updated 2026-08-10

Key Specifications

X Travel

1875 mm (74 in)

Y Travel

1250 mm (49 in)

Z Travel

1345 mm (53 in)

Tool Capacity

max machining diameter

Φ1450 mm (Φ57 in)

max workpiece size

Φ1450 mm × 1600 mm (Φ57 in × 63 in)

Overview

The Mazak INTEGREX e-1250V/8 is a vertical multi-tasking machine: a large vertical turning table with a full B-axis milling spindle working above it. Work is chucked flat and held by gravity rather than cantilevered off a horizontal spindle nose, which is what makes rings, discs, casings and large flanges practical at this size. Maximum machining diameter is Φ1450 mm (Φ57 in), the machine accepts a workpiece up to Φ1450 × 1600 mm (Φ57 × 63 in), and table load capacity is 2,700 kg (5,952 lb) including fixturing.

The table is the turning spindle. It runs to 500 rpm, delivers 3,434 N·m continuous from a 40 kW (53 HP) continuous drive, and doubles as a C axis with 360° of rotation, 0.0001° minimum increment and 25 rpm of rapid positioning. Read those together and the machine's character is clear: high torque at low speed, sized for interrupted cuts on large forgings and castings, where a Φ1450 mm workpiece reaches full cutting speed well below the table's top speed.

Milling runs through a BT50 spindle to 10,000 rpm at 37 kW (50 HP) and 260 N·m peak, 30 kW (40 HP) and 191 N·m continuous, on a B axis with 150° of swing, 0.0001° resolution and 30 rpm of rapid. That is enough power to treat the milling head as a machining centre in its own right rather than as a finishing operation bolted to a vertical lathe, and 150° of B covers everything from drilling straight down into the face to working on the outside diameter.

Linear travels are 1,875 mm (74 in) on X, 1,250 mm (49 in) on Y and 1,345 mm (53 in) on Z, all rapiding at 42,000 mm/min (1,654 IPM). The 42-station magazine takes tools to Φ135 mm (Φ5 in), or Φ260 mm (Φ10 in) with adjacent pockets empty, 650 mm (26 in) long and 30 kg (66 lb), so long boring bars and heavy face mills are anticipated rather than exceptional.

At 49,500 kg (109,127 lb), 5,200 × 8,010 mm (205 × 315 in) of floor and 4,400 mm (173 in) of height, this is a foundation-and-crane installation. It belongs in aerospace, energy and heavy industrial shops where a single large part currently shuttles between a vertical boring mill and a machining centre.

Full Specifications

Parameter	Value
Max Machining Diameter	Φ1450 mm (Φ57 in)
Max Workpiece Size	Φ1450 mm × 1600 mm (Φ57 in × 63 in)
Table Load Capacity	2700 kg (5952 lbs)
Table Speed Max	500 rpm
Table Torque Cont	3434 N･m
Table Motor Cont	40 kW (53 HP)
Rapid Traverse C	25 rpm
C Axis Min Increment	0.0001°
Milling Spindle Speed	10000 rpm
Milling Spindle Torque	260 N･m
Milling Spindle Torque Cont	191 N･m
Milling Spindle Power	37 kW (50 HP)
Milling Spindle Power Cont	30 kW (40 HP)
Rapid Traverse B	30 rpm
B Axis Min Increment	0.0001°
Tool Shank	BT50
Tool Capacity	42
Max Tool Diameter	Φ135 mm (Φ5 in)
Max Tool Diameter No Adjacent	Φ260 mm (Φ10 in)
Max Tool Length	650 mm (26 in)
Max Tool Weight	30 kg (66 lbs)
X-Axis Travel	1875 mm (74 in)
Y-Axis Travel	1250 mm (49 in)
Z-Axis Travel	1345 mm (53 in)
B Axis Range	150°
C Axis Range	360°
Rapid Traverse X	42000 mm/min (1654 IPM)
Rapid Traverse Y	42000 mm/min (1654 IPM)
Rapid Traverse Z	42000 mm/min (1654 IPM)
Machine Dimensions	5200 mm × 8010 mm (205 in × 315 in)
Machine Height	4400 mm (173 in)
Machine Weight	49500 kg (109127 lbs)
Milling Spindle Torque 30min	260 N･m

Specifications sourced from www.mazak.com — verified 2026-08-08

Strengths & Limitations

Strengths

Maximum machining diameter is Φ1450 mm (Φ57 in), taking workpieces up to Φ1450 x 1600 mm (Φ57 x 63 in) - ring, disc and casing sizes a horizontal turning centre cannot reach
Work is chucked flat and held by gravity rather than cantilevered off a horizontal spindle nose, which is what makes large flanges and casings practical at this size
The table delivers 3,434 N·m continuous from a 40 kW (53 HP) continuous drive: high torque at low speed, sized for interrupted cuts in large forgings and castings
The table doubles as a C axis with 360° of rotation and a 0.0001° minimum increment, so turning and indexed milling share one datum
The BT50 milling spindle is a machining centre in its own right - 10,000 rpm, 37 kW (50 HP) and 260 N·m peak, 30 kW (40 HP) and 191 N·m continuous, on a B axis with 150° of swing
The 42-station magazine takes tools 650 mm (26 in) long and 30 kg (66 lb), and up to Φ260 mm with adjacent pockets empty, so long boring bars and heavy face mills are anticipated rather than exceptional

Limitations

Table load capacity is 2,700 kg (5,952 lb) including fixturing, and that is the real ceiling on a machine whose envelope otherwise invites very heavy parts
Table top speed is 500 rpm; ample at Φ1450 mm, but small-diameter work will never reach useful surface speeds here
At 49,500 kg (109,127 lb), 5,200 x 8,010 mm (205 x 315 in) of floor and 4,400 mm (173 in) of height, this is a foundation-and-crane installation rather than something dropped into an existing bay
The B axis has 150° of swing, which covers face and OD work but is a narrower window than a full trunnion machining centre offers
Envelope, table drive and tooling are all sized for large-format work, and none of it redirects usefully to smaller general-purpose jobs if that volume dries up

Best For

Large rings, discs, flanges and casings turned and milled complete in a single setup Aerospace engine cases, turbine discs and large structural components Power generation work - turbine wheels, large bearing housings, heavy pressure-vessel components Oil and gas flanges, valve bodies and large housings approaching Φ1450 mm Shops where one large part currently shuttles between a vertical boring mill and a machining centre

Frequently Asked Questions

01 What size parts does the e-1250V/8 handle?

Maximum machining diameter is Φ1450 mm (Φ57 in), and the machine accepts a workpiece up to Φ1450 x 1600 mm (Φ57 x 63 in). The binding limit is usually mass rather than size: table load capacity is 2,700 kg (5,952 lb) including fixturing, so heavy workholding has to be budgeted before the part is.

02 How does a vertical multi-tasking machine differ from the horizontal INTEGREX e-Series?

On the vertical machine the turning spindle is the table, and the workpiece sits flat, held by gravity. That suits large discs, rings, flanges and casings, which are awkward and stress-prone when cantilevered off a horizontal spindle nose. Horizontal machines remain the better answer for shaft-type parts and work supported between centres.

03 Is the milling head a real machining spindle or a finishing attachment?

A full BT50 spindle, rated 37 kW (50 HP) and 260 N·m peak, 30 kW (40 HP) and 191 N·m continuous, to 10,000 rpm, on a B axis with 150° of swing and 0.0001° resolution. That is enough to treat milling as primary work rather than as a pass bolted onto a vertical lathe, and 150° of B covers drilling straight into the face through to working the outside diameter.

04 What does installing an e-1250V/8 involve?

The machine weighs 49,500 kg (109,127 lb), occupies 5,200 x 8,010 mm (205 x 315 in) and stands 4,400 mm (173 in) tall. That means an engineered foundation, a bay with the height to load parts from above, and crane capacity for both the machine and the workpieces. Facility preparation should run alongside the order rather than after it.
