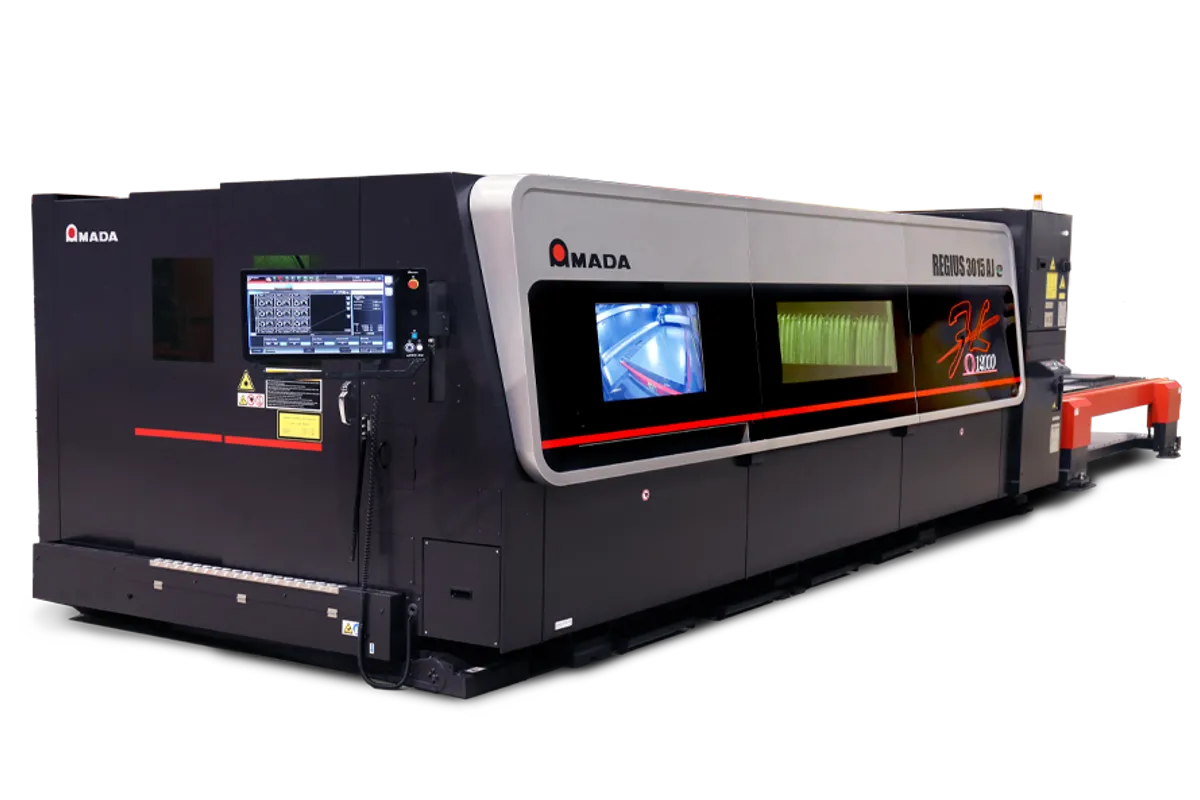

Amada REGIUS 3015 AJe

Est. $650,000 - $1,200,000 Specs verified 2026-10-03 · amada.eu Updated 2026-10-03

Image: amada.com, Amada

Key Specifications

laser power

6000 W / 9000 W / 12000 W / 15000 W / 26000 W

machine type

Fibre laser cutting machine

working range x y

3070 x 1550 mm

working range z

100 mm

repeatable positioning accuracy

± 0.01 mm

max table load

920 kg

How much does the Amada REGIUS 3015 AJe cost?

Estimated price range

Est.$650,000 - $1,200,000

Our best estimate for a cnc laser cutting machine in this class — not a quote from Amada. Configuration moves it a long way.

Overview

The Amada REGIUS 3015 AJe is a linear-drive fibre laser cutting machine with a 3070 x 1550 mm working range and oscillators from 6000 W to 26000 W: the steps are 6000 W, 9000 W, 12000 W, 15000 W and 26000 W. There is no version below 6000 W. Table load is 920 kg and repeatable positioning accuracy is ± 0.01 mm.

Stainless steel and aluminium are both listed at 25 mm regardless of oscillator, so in those two materials power does not move the thickness ceiling. In mild steel, 6000 W, 9000 W and 12000 W all give 25 mm. Amada shows 30 mm for 15000 W and 26000 W but marks that figure as to be confirmed. Brass is 15 mm at 6000 W and 18 mm from 9000 W. Copper is 12 mm up to 12000 W and 15 mm on the two largest units. Thickness alone, then, seldom justifies going above 9000 W on this machine. The reason to buy the higher powers is cutting speed, and the table does not state one.

The two top versions are not fully specified yet. For 6000 W, 9000 W and 12000 W the machine is 10346 mm long with the shuttle table, 2990 mm wide and 2450 mm high, and it weighs 11900 kg, 12000 kg and 12100 kg in that order. For 15000 W and 26000 W Amada gives length, width, height and weight as to be confirmed. Anyone planning a 15000 W or 26000 W installation should get those four numbers, and the 30 mm mild steel figure, in writing.

This is a heavier machine than the ENSIS 3015 AJe, which shares the 920 kg table load and is listed at 9500 kg with a 6000 W oscillator, against 11900 kg here at the same power. The REGIUS 4020 AJe takes the same five oscillators to a 1570 kg table.

Full Specifications

Parameter	Value
Laser Power	6000 W / 9000 W / 12000 W / 15000 W / 26000 W
Machine Type	Fibre laser cutting machine
Working Range X Y	3070 x 1550 mm
Working Range Z	100 mm
Repeatable Positioning Accuracy	± 0.01 mm
Max Table Load	920 kg
Drive System	Linear drive
Max Thickness Mild Steel	6000 W, 9000 W, 12000 W: 25 mm / 15000 W, 26000 W: 30 mm (to be confirmed)
Max Thickness Stainless Steel	25 mm
Max Thickness Aluminium	25 mm
Max Thickness Brass	6000 W: 15 mm / 9000 W, 12000 W, 15000 W, 26000 W: 18 mm
Max Thickness Copper	6000 W, 9000 W, 12000 W: 12 mm / 15000 W, 26000 W: 15 mm
Machine Length with Shuttle Table	6000 W, 9000 W, 12000 W: 10346 mm / 15000 W, 26000 W: TBC
Machine Width	6000 W, 9000 W, 12000 W: 2990 mm / 15000 W, 26000 W: TBC
Machine Height	6000 W, 9000 W, 12000 W: 2450 mm / 15000 W, 26000 W: TBC
Machine Weight	6000 W: 11900 kg / 9000 W: 12000 kg / 12000 W: 12100 kg / 15000 W, 26000 W: TBC

Specifications sourced from amada.eu — verified 2026-10-03

Strengths & Limitations

Strengths

Linear drive with a repeatable positioning accuracy of ± 0.01 mm
Oscillator range runs from 6000 W to 26000 W in five steps
Stainless steel and aluminium are listed to 25 mm on every version, including 6000 W
Brass is listed to 18 mm from 9000 W, and copper to 15 mm at 15000 W and 26000 W
Weight changes little with power: 11900 kg at 6000 W, 12000 kg at 9000 W and 12100 kg at 12000 W

Limitations

No oscillator below 6000 W is offered
The 30 mm mild steel figure for 15000 W and 26000 W is marked to be confirmed
Length, width, height and weight for the 15000 W and 26000 W versions are to be confirmed
At 11900 kg with 6000 W it is heavier than the ENSIS 3015 AJe, listed at 9500 kg with the same power

Best For

Stainless steel and aluminium up to 25 mm at any listed power Mild steel up to 25 mm with 6000 W, 9000 W or 12000 W Copper up to 15 mm with the 15000 W or 26000 W oscillator Sheet within a 3070 x 1550 mm working range and 920 kg

Frequently Asked Questions

01 What laser powers is the REGIUS 3015 AJe available with?

Amada lists five: 6000 W, 9000 W, 12000 W, 15000 W and 26000 W. Dimensions and weight are published for the first three. For 15000 W and 26000 W they are given as to be confirmed.

02 How thick can the REGIUS 3015 AJe cut mild steel?

25 mm with a 6000 W, 9000 W or 12000 W oscillator. For 15000 W and 26000 W Amada shows 30 mm and marks it as to be confirmed, so treat 25 mm as the firm figure until Amada confirms the higher one.

03 Does more power increase the stainless steel or aluminium thickness?

No. Stainless steel and aluminium are both listed at 25 mm for every oscillator from 6000 W to 26000 W. Brass and copper do change: brass is 15 mm at 6000 W and 18 mm above it, and copper is 12 mm up to 12000 W and 15 mm at 15000 W and 26000 W.

04 How big and heavy is the REGIUS 3015 AJe?

With a 6000 W, 9000 W or 12000 W oscillator it is 10346 mm long including the shuttle table, 2990 mm wide and 2450 mm high. Weight is 11900 kg at 6000 W, 12000 kg at 9000 W and 12100 kg at 12000 W.

05 How does the REGIUS 3015 AJe differ from the REGIUS 4020 AJe?

The oscillator list is the same on both. The REGIUS 3015 AJe has a 920 kg table load and weighs 11900 kg at 6000 W. The REGIUS 4020 AJe has a 1570 kg table load and weighs 14900 kg at 6000 W.
