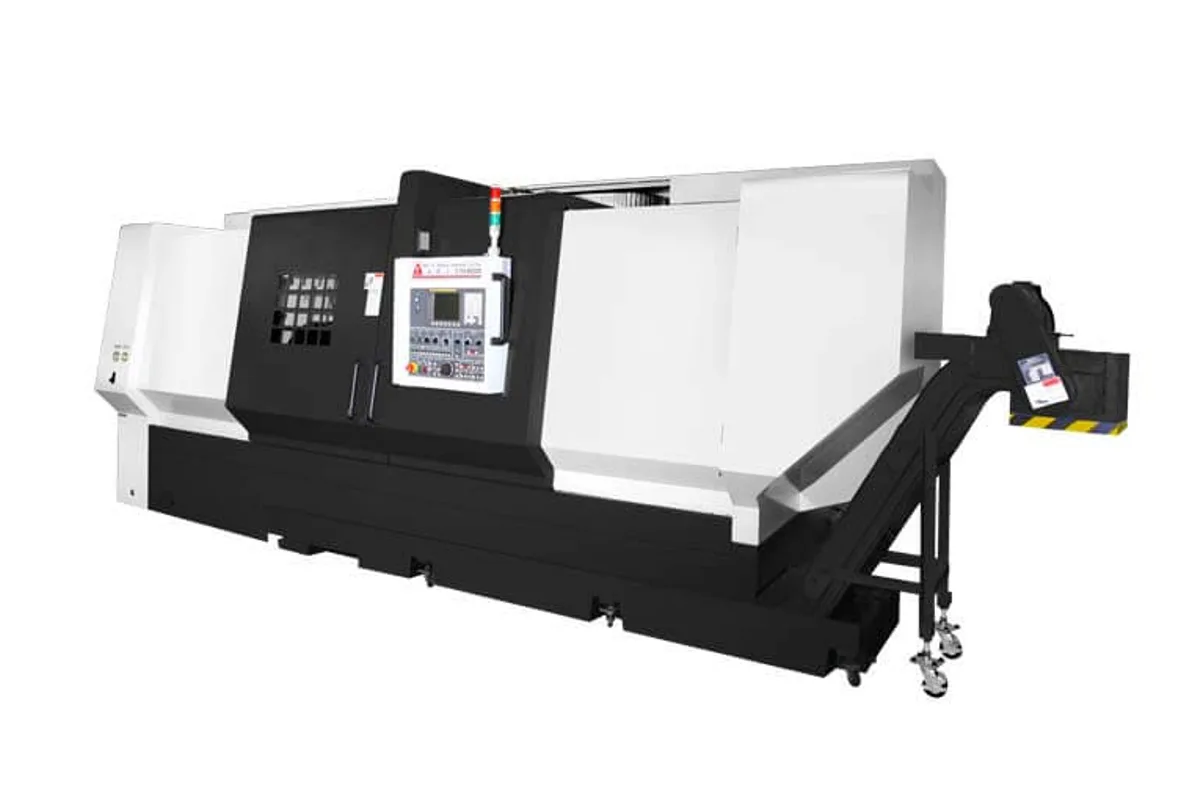

You Ji YH50
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
chuck size
max swing diameter
max turning diameter
How much does the You Ji YH50 cost?
Price estimate
We do not have a price for the You Ji YH50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji YH50 is the largest of the YH horizontal turning lathes in the catalogue: an 18 in (457 mm) chuck, Ø114 mm (4.5 in) of bar capacity and turning lengths of 1,500/2,000/3,000/4,000 mm (59.1/78.7/118.1/157.5 in).
It is a shaft machine first. No bed shorter than 1,500 mm is listed, and the longest reaches the top of the range the maker quotes for the YH series. Maximum turning diameter is Ø680 mm (26.8 in), swing Ø800 mm (31.5 in).
The spindle uses an A2-11 nose and a 37/45 kW (49.6/60.3 hp) motor, as the YH36 does, but the speed range is lower at 1-1,500 rpm and the through-hole is larger. A Ø114 mm (4.5 in) bore takes oil-country pipe and thick-walled tube through the spindle, which is why a lathe of this type is common in pipe-threading and coupling work as well as in general shaft turning.
Machine length is listed as 5,765-9,320 mm (227.0-366.9 in), width 2,510 mm (98.8 in) and height 2,340 mm (92.1 in). The turret is a 10-st. unit, and a C-axis function is listed in the YH key. For bores beyond this, You Ji's AH series offers larger spindle bores on a heavier bed, the AH06 starting at Ø153 mm (6.0 in) bar capacity.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 18 in (457 mm) |
| Max Swing Diameter | Ø800 mm (31.5 in) |
| Max Turning Diameter | Ø680 mm (26.8 in) |
| Max Turning Length | 1,500/2,000/3,000/4,000 mm (59.1/78.7/118.1/157.5 in) |
| Bar Capacity | Ø114 mm (4.5 in) |
| Spindle Motor Power | 37/45 kW (49.6/60.3 hp) |
| Turret Type | 10-st. |
| Spindle Nose | A2-11 |
| Max Spindle Speed | 1-1,500 rpm |
| Machine Length | 5,765-9,320 mm (227.0-366.9 in) |
| Machine Width | 2,510 mm (98.8 in) |
| Machine Height | 2,340 mm (92.1 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø114 mm (4.5 in) bar capacity through an A2-11 spindle nose
- Turning lengths up to 4,000 mm (157.5 in)
- 37/45 kW (49.6/60.3 hp) spindle motor with an 18 in (457 mm) chuck
- Ø680 mm (26.8 in) turning diameter; C-axis function listed
Limitations
- Speed range of 1-1,500 rpm is the lowest in the YH series
- Machine length of 5,765-9,320 mm (227.0-366.9 in)
- Motor rating is no higher than on the smaller YH36
Best For
Frequently Asked Questions
01
The maximum turning length row lists 1,500/2,000/3,000/4,000 mm (59.1/78.7/118.1/157.5 in), one figure per bed length. Machine length ranges over 5,765-9,320 mm (227.0-366.9 in).
02
The catalogue lists bar capacity as Ø114 mm (4.5 in) with an A2-11 spindle nose and an 18 in (457 mm) chuck. The motor is 37/45 kW (49.6/60.3 hp) and the speed range 1-1,500 rpm.
03
Maximum swing is Ø800 mm (31.5 in) and maximum turning diameter Ø680 mm (26.8 in). Both are the largest in the YH series; the YH36 swings Ø720 mm (28.3 in) and turns Ø600 mm (23.6 in).
04
When the bore or the weight of the work outgrows the YH50. The AH06 lists Ø153 mm (6.0 in) bar capacity, a Ø950 mm (37.4 in) swing, an A2-15 spindle nose and a 12-st. turret, with the same 37/45 kW (49.6/60.3 hp) motor through a three-range speed row.
