You Ji VTS2000ATC

Q: How much does the You Ji VTS2000ATC cost?

The price estimate for the You Ji VTS2000ATC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/you-ji-vts2000atc#price; the request is passed to You Ji or an authorised dealer.

Specs verified 2026-10-04 · image.youji.com Updated 2026-10-04

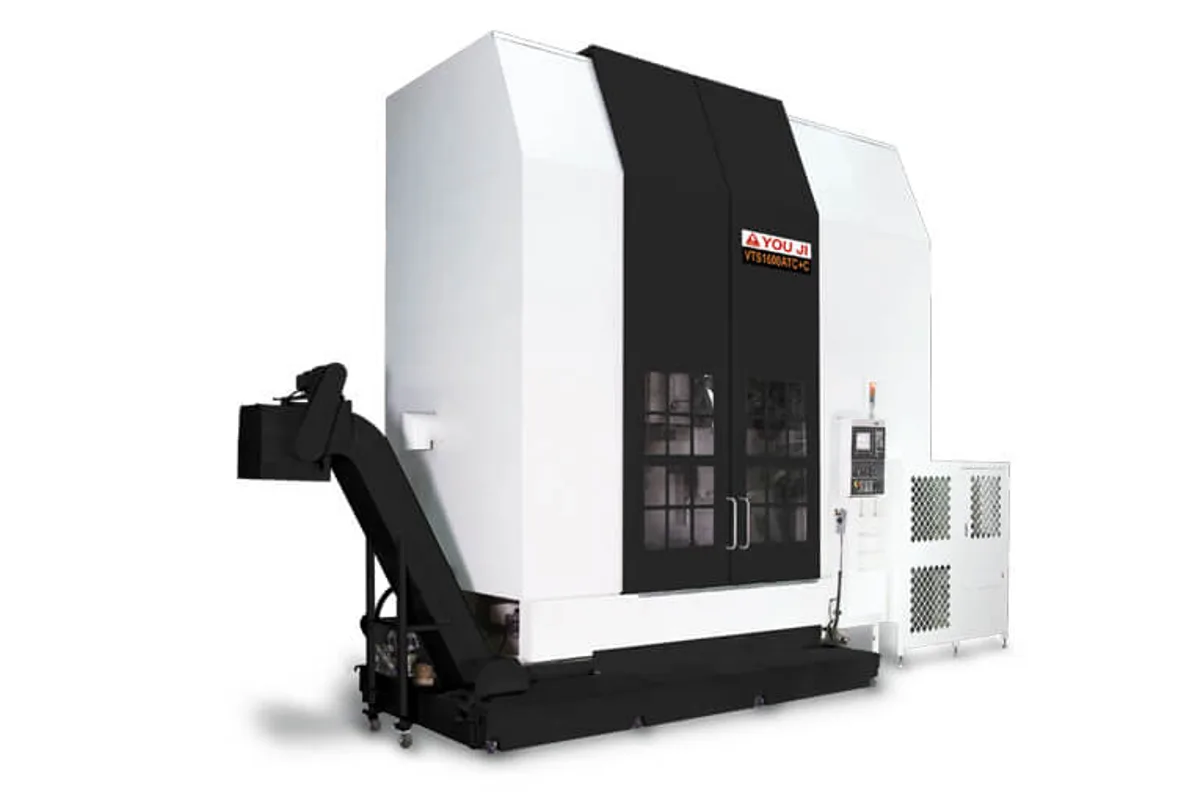

You Ji VTS2000ATC CNC vertical turning lathe (VTS series)

Image: image.youji.com, You Ji

Key Specifications

Max Spindle

1-200 rpm

Spindle Power

60/75 kW (80.5/100.6 hp)

table diameter

Ø2,000 mm (78.7 in)

max swing diameter

Ø2,500 mm (98.4 in)

max turning diameter

Ø2,300 mm (90.6 in)

max turning height

800 mm (31.5 in)

How much does the You Ji VTS2000ATC cost?

Price estimate

Uncertain

We do not have a price for the You Ji VTS2000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A two-metre table under a fixed cross-rail: the You Ji VTS2000ATC is a CNC vertical turning lathe with a Ø2,000 mm (78.7 in) table, a 60/75 kW (80.5/100.6 hp) spindle motor and a Capto C6 automatic tool changer.

The motor is the news at this size. The VTS1600ATC below it has 37/45 kW (49.6/60.3 hp); the VTS2000ATC moves to the larger drive and a 1-200 rpm range while keeping the series' 800 mm (31.5 in) turning height. With a turning diameter of Ø2,300 mm (90.6 in) and a loading weight of 10,000 kg (22,046 lb), the machine is proportioned for wide, shallow parts cut hard.

Think of slewing-bearing rings, large flanges, gear rims and tyre moulds. All are much wider than they are tall, and all need long facing and grooving passes where rail stiffness shows in the surface finish.

Swing is Ø2,500 mm (98.4 in). The machine measures 9,200 x 5,600 mm (362.2 x 220.5 in) and is 5,930 mm (233.5 in) high, lower than the VTL2000ATC at 6,270 mm (246.9 in), which helps in buildings with limited crane height. Double ram, ATC+C and pallet changer builds are all listed for this size in the VTS key.

Full Specifications

Parameter	Value
Table Diameter	Ø2,000 mm (78.7 in)
Max Swing Diameter	Ø2,500 mm (98.4 in)
Max Turning Diameter	Ø2,300 mm (90.6 in)
Max Turning Height	800 mm (31.5 in)
Max Table Load	10,000 kg (22,046 lb)
Spindle Motor Power	60/75 kW (80.5/100.6 hp)
Tool Shank	Capto C6
Max Spindle Speed	1-200 rpm
Floor Space	9,200 x 5,600 mm (362.2 x 220.5 in)
Machine Height	5,930 mm (233.5 in)

Specifications sourced from image.youji.com — verified 2026-10-04

Strengths & Limitations

Strengths

60/75 kW (80.5/100.6 hp) spindle motor on a fixed cross-rail machine
Ø2,300 mm (90.6 in) turning diameter and 10,000 kg (22,046 lb) loading weight
Lower than the VTL2000ATC: 5,930 mm (233.5 in) against 6,270 mm (246.9 in)
Double ram, C-axis and pallet changer builds are listed

Limitations

Turning height stays at 800 mm (31.5 in), half that of the VTL2000ATC
Floor dimension of 9,200 x 5,600 mm (362.2 x 220.5 in)
1-200 rpm table speed limits small-diameter operations

Best For

Slewing rings, gear rims and flanges up to Ø2,300 mm (90.6 in) Tyre moulds and other wide, shallow parts Buildings with restricted crane height

Frequently Asked Questions

01 What motor does the VTS2000ATC have?

A 60/75 kW (80.5/100.6 hp) spindle motor with a table speed range of 1-200 rpm. It is the first VTS size with that motor; the VTS1600ATC has 37/45 kW (49.6/60.3 hp).

02 How tall can the workpiece be?

Maximum turning height is 800 mm (31.5 in). The VTL2000ATC, with the same table and turning diameter, takes parts up to 1,600 mm (63.0 in) high.

03 What is the turning diameter and load?

Maximum turning diameter Ø2,300 mm (90.6 in), maximum swing Ø2,500 mm (98.4 in) and maximum loading weight 10,000 kg (22,046 lb) on a Ø2,000 mm (78.7 in) table.

04 Which options are listed for this size?

The VTS key lists ATC+C (automatic tool changer plus C-axis function), 2R (double ram, 1600 and upward) and APC (automatic pallet changer, 1000 to 2500). All three cover the VTS2000ATC. The tool shank is Capto C6.
