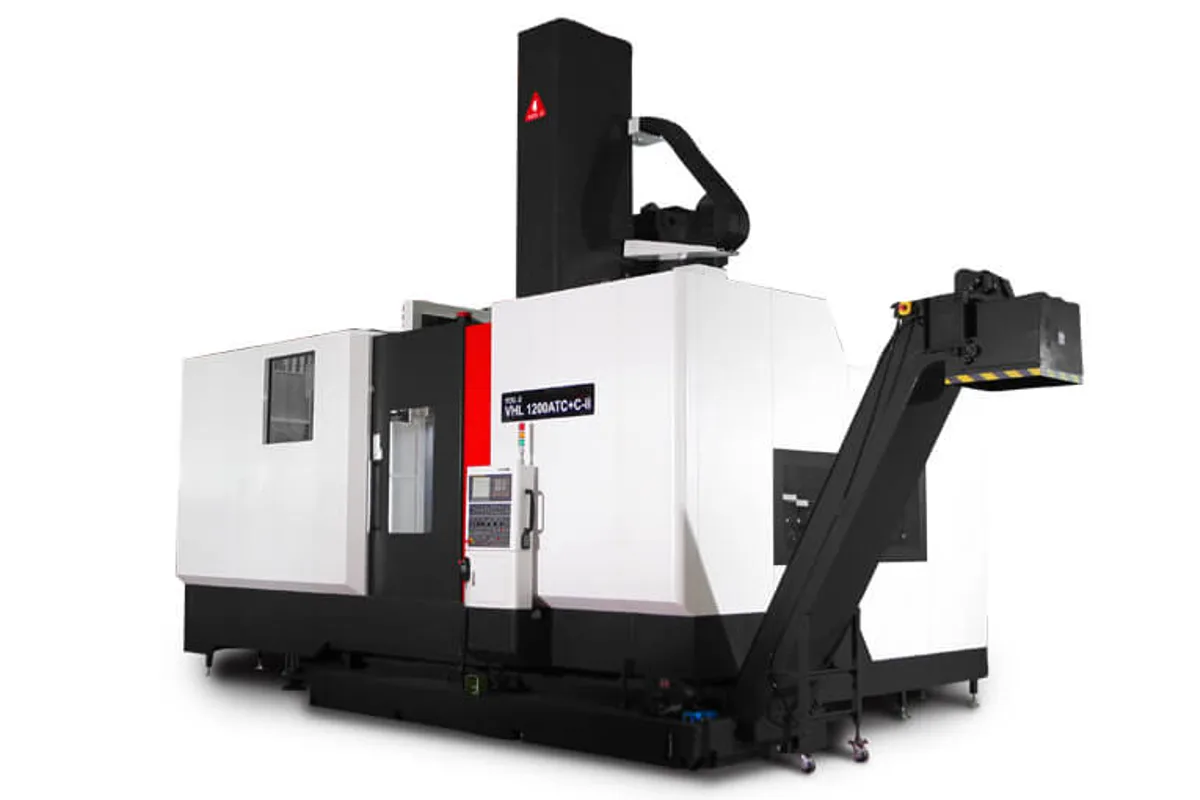

You Ji VHL1200ATC
Image: image.youji.com, You Ji
Key Specifications
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
x1 axis travel
How much does the You Ji VHL1200ATC cost?
Price estimate
We do not have a price for the You Ji VHL1200ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji VHL1200ATC is a CNC vertical turning center with a side head: a second tool carrier mounted on the column that works on the outside of the part while the main ram works from above. The table is Ø1,250 mm (49.2 in) and the maximum turning diameter Ø1,350 mm (53.1 in).
Unlike most of You Ji's vertical lathe tables, the VHL table prints the axis travels. The main ram moves -600, +875 mm (-23.6, +34.4 in) in X1, so it crosses the table centre, and 900 mm (35.4 in) in Z1. The crossrail travels 800 mm (31.5 in) vertically. The side head has 1,720 mm (67.7 in) of X2 travel and 800 mm (31.5 in) of Z2 travel.
Two motors are listed. The table spindle motor is 37/45 kW (49.6/60.3 hp), marked α40i. The side head carries a live spindle motor of 7.5/11 kW (10.1/14.8 hp), marked α8i, so the side head is not limited to static turning tools: it can drill and mill on the outside diameter.
Maximum turning height is 1,200 mm (47.2 in) and swing Ø1,600 mm (63.0 in). The side head makes the machine long, 10,500 x 6,000 mm (413.4 x 236.2 in) at 5,500 mm (216.5 in) height. The model key lists ATC, ATC+C with C-axis function, and two raised-column heights. Wheels, drums, large bearing rings and flanged housings with outside features are the target parts.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø1,250 mm (49.2 in) |
| Max Swing Diameter | Ø1,600 mm (63.0 in) |
| Max Turning Diameter | Ø1,350 mm (53.1 in) |
| Max Turning Height | 1,200 mm (47.2 in) |
| X1 Axis Travel | -600, +875 mm (-23.6, +34.4 in) |
| Z1 Axis Travel | 900 mm (35.4 in) |
| Crossrail Vertical Travel | 800 mm (31.5 in) |
| Spindle Motor Power | 37/45 kW (49.6/60.3 hp) (α40i) |
| Side Head X2 Axis Travel | 1,720 mm (67.7 in) |
| Side Head Z2 Axis Travel | 800 mm (31.5 in) |
| Side Head Live Spindle Power | 7.5/11 kW (10.1/14.8 hp) (α8i) |
| Floor Space | 10,500 x 6,000 mm (413.4 x 236.2 in) |
| Machine Height | 5,500 mm (216.5 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Side head with 1,720 mm (67.7 in) X2 travel and 800 mm (31.5 in) Z2 travel
- Live spindle motor of 7.5/11 kW (10.1/14.8 hp) on the side head
- Main ram X1 travel of -600, +875 mm (-23.6, +34.4 in) crosses the table centre
- 37/45 kW (49.6/60.3 hp) table spindle motor; ATC and ATC+C builds listed
Limitations
- Floor dimension of 10,500 x 6,000 mm (413.4 x 236.2 in) is long for a Ø1,250 mm (49.2 in) table
- No loading weight or table speed range is printed in the VHL table
- Z1 travel of 900 mm (35.4 in) is less than the 1,200 mm (47.2 in) turning height
Best For
Frequently Asked Questions
01
You Ji calls the VHL series a CNC vertical turning center with side head. The side head is a second carrier with its own axes, X2 with 1,720 mm (67.7 in) and Z2 with 800 mm (31.5 in), and a live spindle motor of 7.5/11 kW (10.1/14.8 hp).
02
X1 travel is -600, +875 mm (-23.6, +34.4 in) and Z1 travel is 900 mm (35.4 in). The crossrail adds 800 mm (31.5 in) of vertical travel.
03
Maximum turning diameter Ø1,350 mm (53.1 in), maximum swing Ø1,600 mm (63.0 in) and maximum turning height 1,200 mm (47.2 in) on a Ø1,250 mm (49.2 in) table. The catalogue does not give the loading weight in this table.
04
The capacity rows are the same and both list a 37/45 kW (49.6/60.3 hp) motor. The VHL1200ATC adds the side head and occupies 10,500 x 6,000 mm (413.4 x 236.2 in); the VTL1200ATC occupies 5,580 x 4,260 mm (219.7 x 167.7 in).
