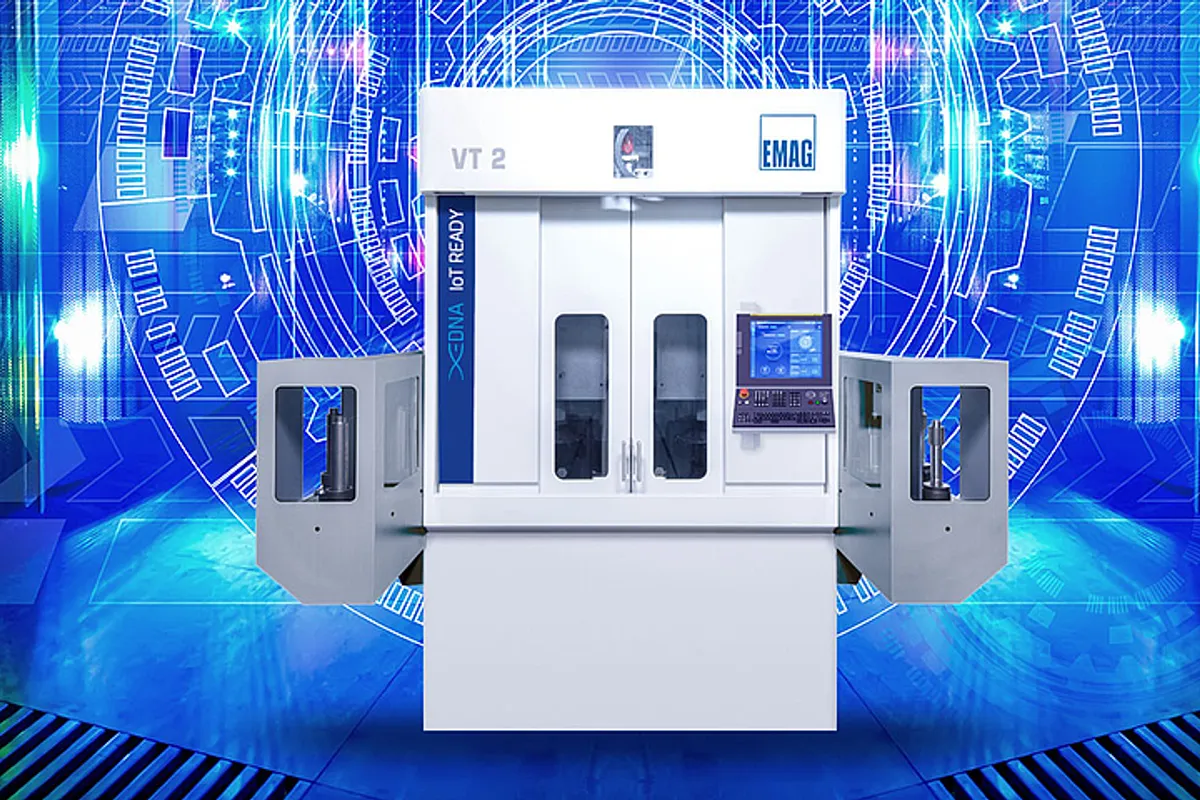

EMAG VT 2

The EMAG VT 2 is an inverted vertical CNC lathe from the German manufacturer EMAG, pioneering the inverted spindle concept where the spindle picks up the workpiece from below rather than clamping it in a conventional horizontal configuration. This design provides gravity-assisted chip evacuation and integrated automation.

The VT 2 handles workpieces up to 160 mm diameter and 200 mm length with a maximum chuck diameter of 160 mm. The spindle runs at 6,000 rpm with approximately 26 kW (35 hp). X-axis travel is 340 mm and Z-axis is 310 mm.

The inverted spindle design means the workpiece hangs vertically from the spindle above the work zone. Chips fall away by gravity, eliminating chip re-cutting and reducing coolant requirements. The built-in automation pickup eliminates the need for a separate robot or gantry loader -- the spindle itself loads and unloads parts from an integrated conveyor or turntable.

The turret holds 12 tools. Rapid traverse reaches 30 m/min on X and 30 m/min on Z. The VT 2 runs on Fanuc or Siemens controls. Machine weight is approximately 4,500 kg.

EMAG machines are designed for high-volume production of chucked parts. The VT 2 competes with conventional horizontal lathes plus automation but offers a more compact, integrated solution.

New machines price $200,000-$300,000. Used trade $100,000-$180,000.
