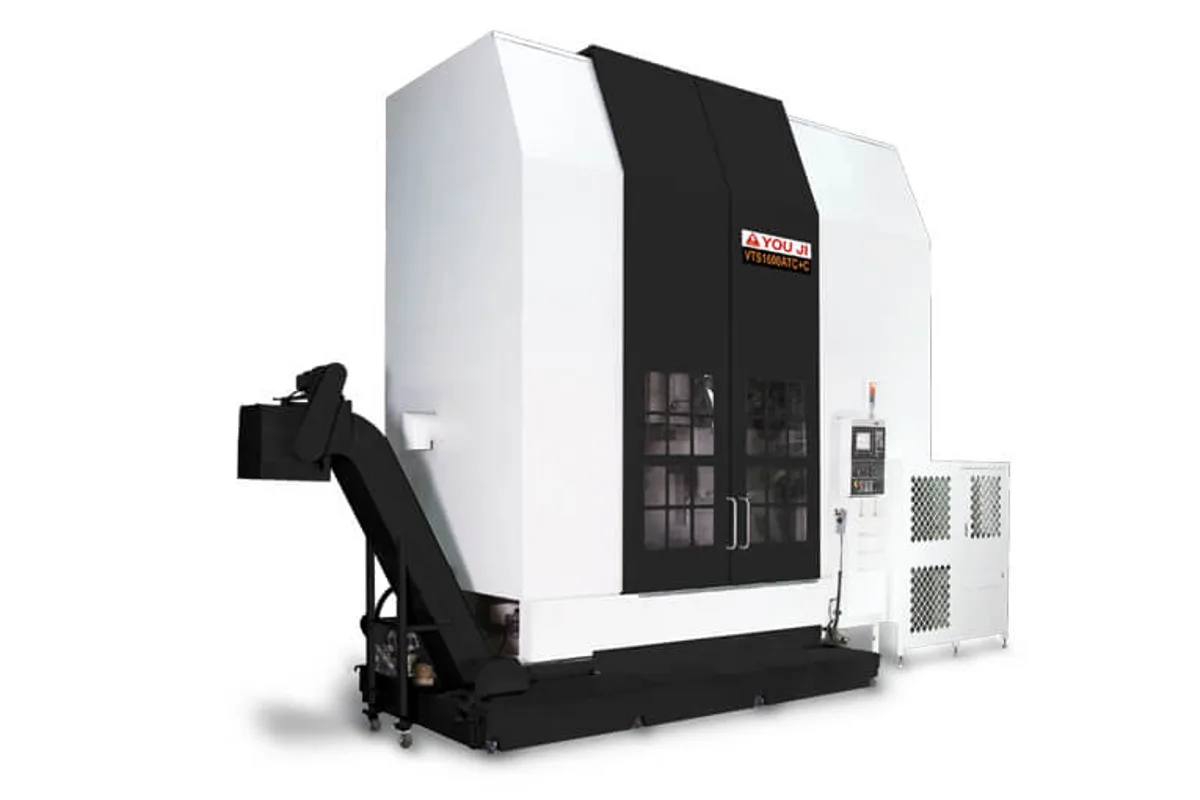

You Ji VTS1600ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTS1600ATC cost?
Price estimate
We do not have a price for the You Ji VTS1600ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji VTS1600ATC is a fixed cross-rail vertical turning lathe for discs and rings up to Ø1,800 mm (70.9 in). Its table is Ø1,600 mm (63.0 in), the swing Ø2,000 mm (78.7 in) and the loading weight 8,000 kg (17,637 lb).
What sets this size apart inside the VTS family is the second ram. You Ji lists the double ram (2R) build from the 1600 upward. On a fixed-rail machine that is a natural pairing, because both rams hang from the same rigid beam: one can rough the face while the other bores, or one can stay tooled for turning while the other carries driven tools.
Turning height is 800 mm (31.5 in), which rules out tall casings. Buyers with such parts should look at the VTL1600ATC, which lists 1,200 mm (47.2 in) of height with otherwise equal diameter, load and motor figures.
The drive is a 37/45 kW (49.6/60.3 hp) motor through a 1-250 rpm range. Tools use the Capto C6 shank and are changed automatically; a C-axis build (ATC+C) and an automatic pallet changer are both in the model key. Plan for 8,600 x 5,500 mm (338.6 x 216.5 in) of floor and 5,550 mm (218.5 in) of height, the same height as the VTS1200ATC. Typical work includes railway wheel centres, large gear blanks and wind-turbine brake discs.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø1,600 mm (63.0 in) |
| Max Swing Diameter | Ø2,000 mm (78.7 in) |
| Max Turning Diameter | Ø1,800 mm (70.9 in) |
| Max Turning Height | 800 mm (31.5 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Spindle Motor Power | 37/45 kW (49.6/60.3 hp) |
| Tool Shank | Capto C6 |
| Max Spindle Speed | 1-250 rpm |
| Floor Space | 8,600 x 5,500 mm (338.6 x 216.5 in) |
| Machine Height | 5,550 mm (218.5 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Double ram (2R) build is listed from this size upward
- Ø1,800 mm (70.9 in) turning diameter with 8,000 kg (17,637 lb) loading weight
- Capto C6 tooling with automatic tool changer and optional C-axis function
- Pallet changer build is listed for the size
Limitations
- Turning height of 800 mm (31.5 in); the VTL1600ATC offers 1,200 mm (47.2 in)
- Needs 8,600 x 5,500 mm (338.6 x 216.5 in) of floor
- 37/45 kW (49.6/60.3 hp) motor; the VTS2000ATC has 60/75 kW (80.5/100.6 hp)
Best For
Frequently Asked Questions
01
Yes. The VTS model key reads 2R: Double RAM (1600 and upward). The specification table in the catalogue describes the single-ram machine, so the second ram's travel and tooling should be confirmed with You Ji.
02
Ø1,800 mm (70.9 in) turning diameter, Ø2,000 mm (78.7 in) swing, 800 mm (31.5 in) turning height and 8,000 kg (17,637 lb) on a Ø1,600 mm (63.0 in) table.
03
A 37/45 kW (49.6/60.3 hp) spindle motor with a speed range of 1-250 rpm. Those two rows are the same on the VTL1600ATC and the YV1600.
04
The floor dimension is 8,600 x 5,500 mm (338.6 x 216.5 in) and the machine height 5,550 mm (218.5 in). That is longer than the VTL1600ATC at 5,850 x 4,510 mm (230.3 x 177.6 in).
