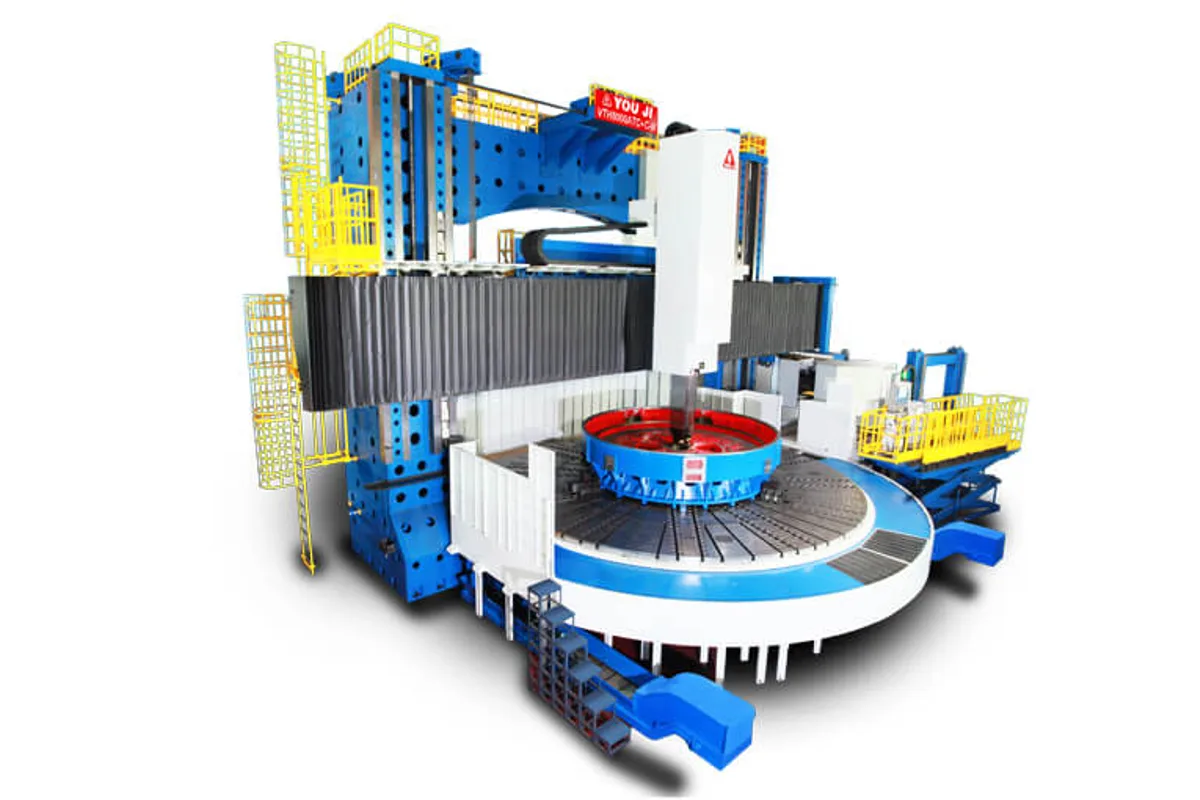

You Ji VTH5000ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTH5000ATC cost?
Price estimate
We do not have a price for the You Ji VTH5000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji VTH5000ATC begins the very large half of the VTH range. This hydrostatic-table vertical turning lathe has a Ø5,000 mm (196.9 in) table, carries 100,000 kg (220,459 lb) and lists its spindle motor as 2 x 60/84 kW (2 x 80.5/112.6 hp).
Several rows of the table change character at this size. The swing, Ø6,400 mm (252.0 in), and the turning diameter, Ø5,900 mm (232.3 in), now extend well past the table edge, so the largest parts overhang it on extension arms or a fixture. Turning height rises to 2,100 mm (82.7 in). And the speed range is quoted as 5-40 rpm: there is a stated minimum well above that of the smaller VTH models, whose ranges start at the bottom of the scale.
The building has to match. Floor dimension is 18,000 x 11,500 mm (708.7 x 452.8 in) and machine height 9,700 mm (381.9 in), before the three raised-column steps listed in the model key. Crane capacity for a 100-tonne part is a project in itself.
Machines of this size are bought for specific products: hydro-turbine runners and head covers, large slewing rings for cranes and excavators, tunnel-boring-machine main bearings, and reactor or pressure-vessel sections. A double ram build lets two tools cut at once, which matters when a single facing pass crosses several metres. Tooling is BT-50/BT-60 with ATC or ATC+C.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø5,000 mm (196.9 in) |
| Max Swing Diameter | Ø6,400 mm (252.0 in) |
| Max Turning Diameter | Ø5,900 mm (232.3 in) |
| Max Turning Height | 2,100 mm (82.7 in) |
| Max Table Load | 100,000 kg (220,459 lb) |
| Spindle Motor Power | 2 x 60/84 kW (2 x 80.5/112.6 hp) |
| Tool Shank | BT-50/BT-60 |
| Max Spindle Speed | 5-40 rpm |
| Floor Space | 18,000 x 11,500 mm (708.7 x 452.8 in) |
| Machine Height | 9,700 mm (381.9 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 100,000 kg (220,459 lb) loading weight on a hydrostatic table bearing
- Spindle motor listed as 2 x 60/84 kW (2 x 80.5/112.6 hp)
- Ø5,900 mm (232.3 in) turning diameter and 2,100 mm (82.7 in) turning height
- Double ram, C-axis and three raised-column builds are listed
Limitations
- Speed range of 5-40 rpm has a 5 rpm minimum
- Needs 18,000 x 11,500 mm (708.7 x 452.8 in) of floor and 9,700 mm (381.9 in) of height
- Turning diameter exceeds the Ø5,000 mm (196.9 in) table, so large parts need overhanging fixtures
Best For
Frequently Asked Questions
01
Maximum turning diameter is Ø5,900 mm (232.3 in), maximum swing Ø6,400 mm (252.0 in) and maximum turning height 2,100 mm (82.7 in). The table is Ø5,000 mm (196.9 in) and the loading weight 100,000 kg (220,459 lb).
02
It reads 60/84 kW x 2, shown on this page as 2 x 60/84 kW (2 x 80.5/112.6 hp). The speed range is 5-40 rpm. The VTH4500ATC below it lists a single 100/140 kW (134.1/187.7 hp) motor and 1-60 rpm.
03
The catalogue lists a floor dimension of 18,000 x 11,500 mm (708.7 x 452.8 in) and a machine height of 9,700 mm (381.9 in). Foundation, hydrostatic oil supply and crane capacity are outside the table and need to be planned with the maker.
04
Yes. The VTH key lists 2R, double ram, without a size restriction, together with ATC, ATC+C and three column height increases. The tool shank is BT-50/BT-60.
