Doosan DHM-800
This model was not found in Doosan's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Table Size
Spindle Power
How much does the Doosan DHM-800 cost?
Estimated price range
Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Doosan. Configuration moves it a long way.
Overview
The Doosan DHM-800 is listed as a horizontal machining center with an 800 x 800 mm pallet that carries up to 2,000 kg, and travels of 1,400 mm in X, 1,400 mm in Y and 1,250 mm in Z. DN Solutions, which was Doosan Machine Tools until 2022, does not show a DHM-800 in its current lineup. Treat what follows as the listed figures and check each one against the machine itself.
The spindle is listed at 6,000 rpm and 37 kW, with 8,000 rpm as a high-speed option and 52 kW as a high-power option. The taper is given as BT50 / HSK-A100, and the same row notes that the spindle is not a quill type. A second-hand machine could have any combination of these, so read its build sheet before assuming the higher speed or power.
Travel in X and Y is far larger than the pallet, which is the point of the layout: a tall tombstone or a casting that overhangs the 800 mm pallet on every side can still be reached across its whole face. The 2,000 kg limit is per pallet and includes the fixture. For comparison, the HMC 630 has a 630 x 630 mm (24.8 x 24.8 in) pallet with 800 mm (31.5 in) of X and Y travel.
Control is listed as Fanuc 31iB5 or Siemens SINUMERIK 840D sl, and machine weight as approx. 25,000 kg. No torque, rapid traverse, tool magazine or pallet-changer figure is listed.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | BT50 / HSK-A100 (not quill-type) |
| X-Axis Travel | 1,400 mm |
| Y-Axis Travel | 1,400 mm |
| Z-Axis Travel | 1,250 mm |
| Max Spindle Speed | 6,000 rpm (8,000 rpm with high-speed option) |
| Spindle Motor Power | 37 kW (52 kW with high-power option) |
| Table Size | 800 x 800 mm pallet (max load 2,000 kg per pallet) |
| Max Workpiece Weight | 2,000 kg per pallet |
| CNC Control | Fanuc 31iB5 or Siemens SINUMERIK 840D sl |
| Machine Weight | approx. 25,000 kg |
Specifications sourced from machinetools.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Listed travels of 1,400 mm in X and Y and 1,250 mm in Z around an 800 x 800 mm pallet
- Pallet load of 2,000 kg, fixture included
- 37 kW spindle at 6,000 rpm, with 52 kW and 8,000 rpm listed as options
- BT50 / HSK-A100 taper for large-diameter tooling
- Listed with a Fanuc 31iB5 or Siemens SINUMERIK 840D sl control
Limitations
- The 8,000 rpm and 52 kW figures are options; the base spindle is listed at 6,000 rpm and 37 kW
- No torque, rapid traverse, tool magazine or pallet-changer figure is listed
- At approx. 25,000 kg it needs a prepared foundation and heavy rigging
- Not in DN Solutions' current lineup, and the listed figures need confirming on the machine
Best For
Frequently Asked Questions
01
The listed travels are 1,400 mm in X, 1,400 mm in Y and 1,250 mm in Z. The pallet is 800 x 800 mm with a maximum load of 2,000 kg per pallet. Confirm the figures against the machine's own documentation.
02
The base spindle is listed at 6,000 rpm and 37 kW. An 8,000 rpm high-speed option and a 52 kW high-power option are also listed, and the taper is given as BT50 / HSK-A100. Which of these a particular machine has must be checked on that machine.
03
The control is listed as Fanuc 31iB5 or Siemens SINUMERIK 840D sl. These are alternatives, so an individual machine carries one or the other. Establish which before planning post-processors and training.
04
DN Solutions does not show a DHM-800 in its current lineup, and it may be an older model. The listed weight is approx. 25,000 kg, so anyone moving one should plan rigging and a foundation accordingly.
Videos

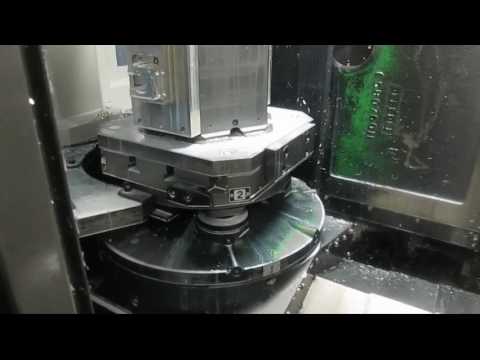

AGAM ENTERPRISES - USED MACHINE TOOLS
