DMG Mori NHX 6300
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview

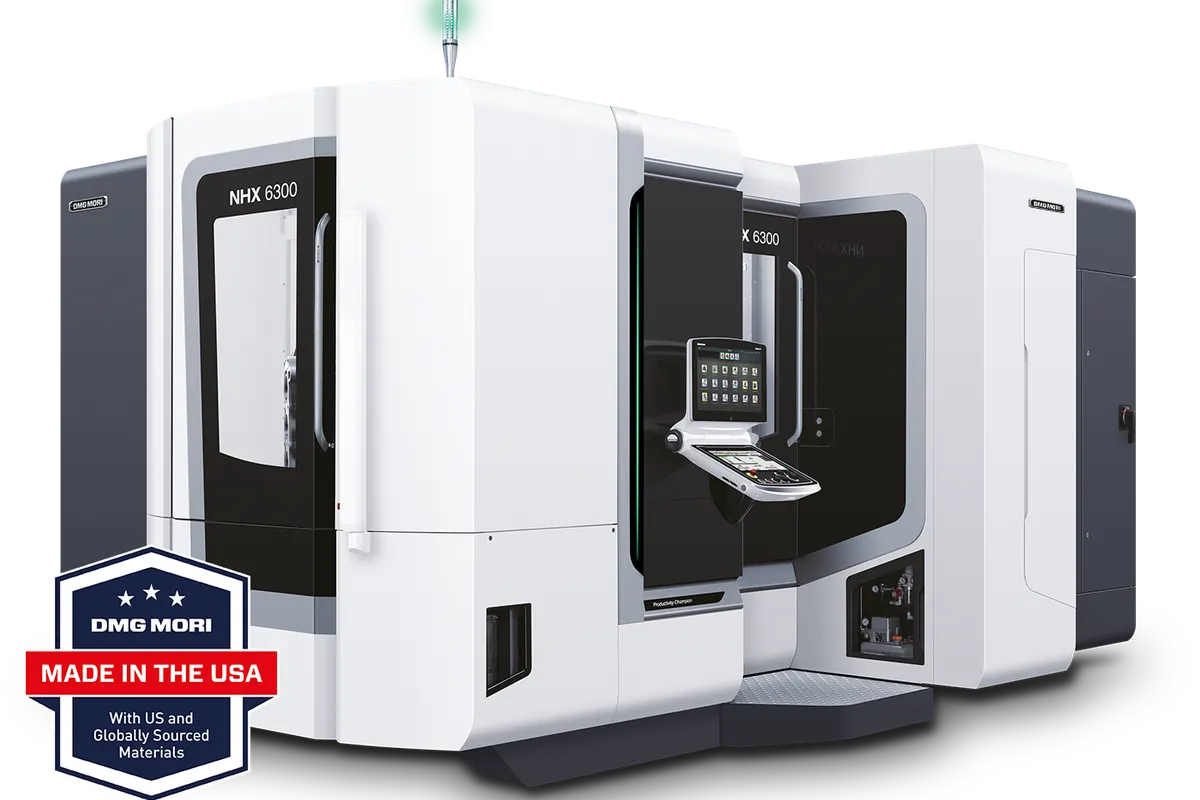

The DMG Mori NHX 6300 is a 630mm-class horizontal machining center built for heavy-duty production of large prismatic components. With 900 x 800 x 980 mm (35.4 x 31.5 x 38.6 in) of X/Y/Z travel on a 630 x 630 mm (24.8 x 24.8 in) pallet, the NHX 6300 handles large cast iron housings, pump bodies, and structural components that overwhelm 500mm platforms.
The speedMASTER spindle runs at 8,000 RPM through a No. 50 (CAT 50) taper, delivering 37 kW (50 hp) and 560 Nm (413 ft-lb) of torque. A 10,000 RPM option is available. Rapid traverse hits 50 m/min on X/Z and 60 m/min on Y with roller guideways. Maximum pallet load is 1,200 kg (2,646 lb). Standard 60-tool magazine expandable to 120 or 180.
The NHX 6300 features thermo-symmetric design with active cooling throughout spindle, ball screws, and structural castings. Competitors include the Okuma MB-8000H, Mazak HCN-6800, and Makino A81nx. New $475,000-$650,000. Specs sourced from DMG Mori published data.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 900 mm (35.4 in) |
| Y-Axis Travel | 800 mm (31.5 in) |
| Z-Axis Travel | 980 mm (38.6 in) |
| Max Spindle Speed | 8,000 RPM (10,000 RPM optional) |
| Spindle Taper | No. 50 / CAT 50 |
| Spindle Motor Power | 37 kW (50 hp) |
| Spindle Torque | 560 Nm (413 ft-lb) |
| Tool Capacity | 60 tools standard (120, 180 optional) |
| Tool Change Time | 3.5 sec tool-to-tool |
| Pallet Size | 630 x 630 mm (24.8 x 24.8 in) |
| Pallet Change Time | 12.5 sec |
| Max Workpiece Size | 1,050 x 1,300 mm (41.3 x 51.2 in) |
| Max Work Weight | 1,200 kg (2,646 lb) |
| Rapid Traverse Rate | 50 m/min (1,969 ipm) X/Z; 60 m/min Y |
| Table Indexing | 0.001 deg increment (B-axis) |
| Machine Weight | 20,500 kg (45,195 lb) |
| CNC Control | CELOS with Fanuc 31i-B5 |
| 1050 Mm | 41.3 in. |
| 900 Mm | 35.4 in. |
| 1030 Mm | 40.6 in. |
| 1300 Mm | 51.2 in. |
| 1500 Kg | 3306.9 lbs. |
| Production Optimization And Flexibility With Advanced Machining Solutions Valsteam | NHX 5500 / NHX 6300 2nd Generation |
| Customer Benefits | MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash. |
| Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements | Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement. |
Specifications sourced from us.dmgmori.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 560 Nm spindle torque through CAT 50 for aggressive cast iron and steel roughing
- 1,200 kg pallet load supports heavy tombstone setups and large single-piece fixturing
- Extended 980 mm Z-axis travel handles deep-cavity work and tall workpieces
- Thermo-symmetric active cooling maintains accuracy during sustained heavy-duty production
- 630 mm pallets are the sweet spot for large industrial components within practical automation footprints
- Roller guideways provide stiffness for interrupted cuts in cast iron and heavy roughing
Limitations
- At 20,500 kg requires significant foundation work and crane capacity
- 8,000 RPM max limits surface speed for aluminum and non-ferrous work
- 12.5-second pallet change slower than 500mm class
- 50 m/min rapids on X/Z slower than 500mm-class machines at 60 m/min
Best For
Frequently Asked Questions
01
New $475,000-$650,000 depending on options. Used 2017-2022 trade $225,000-$400,000.
02
Both top-tier 630mm HMCs. Okuma features Thermo-Friendly Concept. DMG Mori offers CELOS and broader automation. Both deliver exceptional rigidity.
03
Yes. 560 Nm torque and roller guideways handle titanium at moderate depths. Use high-pressure coolant (70+ bar) at lower speeds.
04
Standard two-pallet changer. LPP scales to 6-21+ pallets. Third-party pallet systems from Fastems also compatible.
