Brother Industries Vertical Machining Centers (VMC)

Brother Speedio W1000Xd2

Est. $150,000 - $200,000 (new) Specs verified 2026-10-03 · machinetool.global.brother Updated 2026-10-03

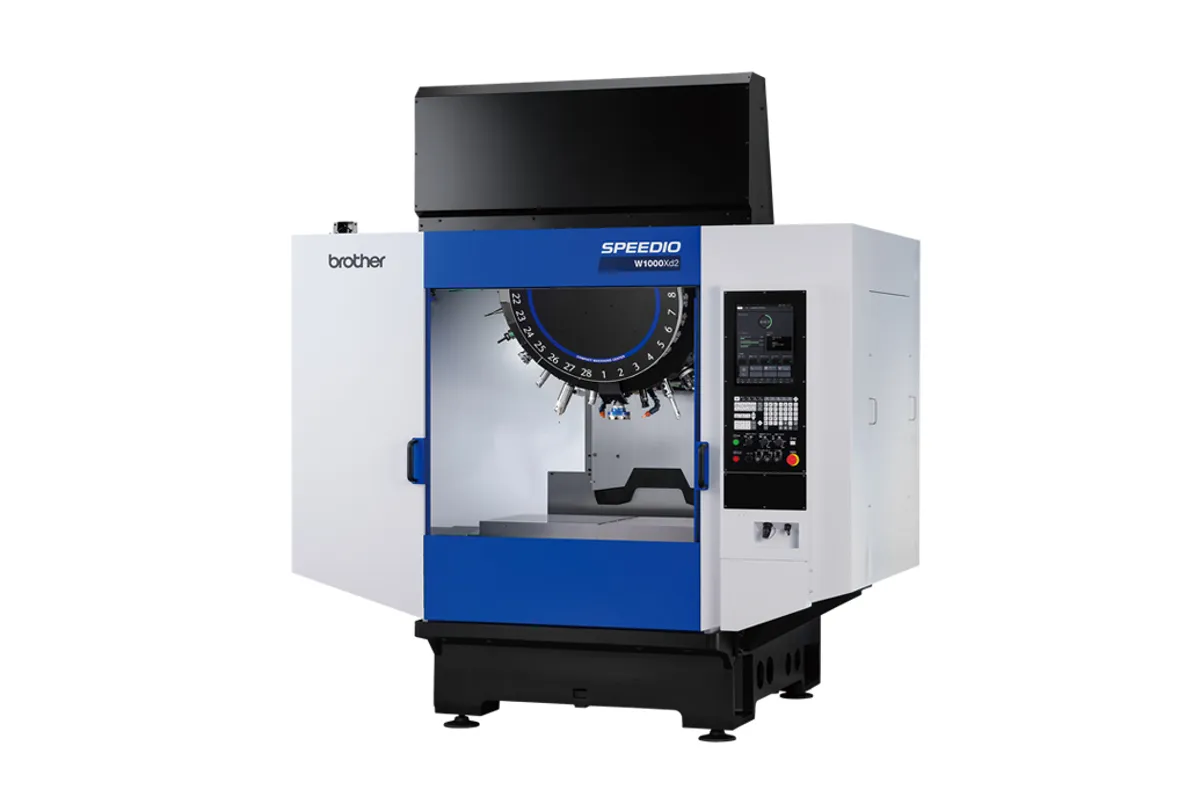

Image: machinetool.global.brother, Brother Industries

Key Specifications

X Travel

1,000 mm (39.4 in)

Y Travel

500 mm (19.7 in)

Z Travel

380 mm (15.0 in)

Max Spindle

12,000 rpm (10,000 high-torque, 20,000 rpm optional)

Spindle Taper

BT30 (7/24 taper No. 30)

Tool Capacity

14 / 21 / 28 tools

How much does the Brother Speedio W1000Xd2 cost?

Estimated price range

Est.$150,000 - $200,000 (new)

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Brother Industries. Configuration moves it a long way.

Overview

The Brother Speedio W1000Xd2 is Brother's current long-table BT30 machine: 1,000 x 500 x 380 mm (39.4 x 19.7 x 15.0 in) of travel, a 1,100 x 500 mm (43.3 x 19.7 in) table, a 12,000 rpm standard spindle and the CNC-D00 control. Compared with the earlier long-table versions, it gains Z stroke, table capacity and a larger magazine.

Z is the most useful change. With 380 mm (15.0 in) of travel, the spindle nose reaches from 150 to 530 mm (5.9 to 20.9 in) above the table, where the Speedio W1000Xd1 offers 300 mm (11.8 in) of Z and 180 to 480 mm (7.1 to 18.9 in). That headroom lets a rotary table, a tombstone-style fixture or taller castings go under the spindle without giving up tool length.

The table takes 300 kg (661 lb) as standard and 500 kg (1,102 lb) with the option, the highest rating among the Brother machines it is listed alongside. Spread over 1,100 mm, that suits several steel vises or a fourth axis with a loaded fixture plate. The magazine is offered with 14, 21 or 28 tools; tool to tool is 0.6 sec on the 14 and 21 tool versions and 0.7 sec on the 28, while chip to chip is 1.3 sec or 1.4 sec.

Spindle choices are 12,000 rpm as standard, a high-torque 10,000 rpm version and a 20,000 rpm option, rated 10.1 kW for 10 minutes and 7.0 kW continuous. Tapping runs to 6,000 rpm. Dual-contact tooling and through-spindle coolant are options.

Before delivery, check the ceiling: the machine is 2,633 mm (103.7 in) tall. It weighs 3,350 kg (7,385 lb), occupies 2,410 x 2,233 mm (94.9 x 87.9 in), and needs 10.4 kVA from a 200 to 230 V 3-phase supply plus 45 L/min of air at 0.4 to 0.6 MPa.

Full Specifications

Parameter	Value
CNC Control	Brother CNC-D00
X-Axis Travel	1,000 mm (39.4 in)
Y-Axis Travel	500 mm (19.7 in)
Z-Axis Travel	380 mm (15.0 in)
Spindle Nose to Table	150 - 530 mm (5.9 - 20.9 in)
Table Size	1,100 x 500 mm (43.3 x 19.7 in)
Max Table Load	300 kg (661 lb); 500 kg (1,102 lb) with option
Max Spindle Speed	12,000 rpm (10,000 high-torque, 20,000 rpm optional)
Tapping Speed Max	6,000 rpm
Spindle Taper	BT30 (7/24 taper No. 30)
Dual Contact Spindle	Optional
Coolant Through Spindle	Optional
Rapid Traverse Rate	50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm)
Max Cutting Feedrate	30,000 mm/min (1,181 ipm)
Tool Shank	MAS-BT30
Pull Stud	MAS-P30T-2
Tool Capacity	14 / 21 / 28 tools
Max Tool Length	250 mm (9.8 in)
Max Tool Diameter (full magazine)	110 mm (4.3 in)
Max Tool Weight	3.0 kg (6.6 lb) per tool
Tool Selection	Random shortcut method
Tool to Tool Time	0.6 / 0.7 sec (14 or 21 tools / 28 tools)
Chip to Chip Time	1.3 / 1.4 sec (14 or 21 tools / 28 tools)
Spindle Motor Power	10.1 kW (10 min) / 7.0 kW continuous
Axis Feed Motor	X,Y axis: 1.0, Z axis: 2.0 kW
Power Supply	AC 200 to 230 V±10％, 3-phase, 50/60Hz±2%
Power Capacity	10.4 kVA
Air Pressure	0.4 - 0.6 MPa
Air Flow	45 L/min
Machine Height	2,633 mm (103.7 in)
Floor Space Required	2,410 x 2,233 mm (94.9 x 87.9 in)
Machine Weight	3,350 kg (7,385 lb)
Positioning Accuracy	0.006 - 0.020 mm (0.00024 - 0.00079 in)
Repeatability	< 0.004 mm (0.00016 in)
Front Door	2 doors

Specifications sourced from machinetool.global.brother — verified 2026-10-03

Strengths & Limitations

Strengths

380 mm (15.0 in) of Z with 150 to 530 mm (5.9 to 20.9 in) from spindle nose to table
Optional 500 kg (1,102 lb) table load on a 1,100 x 500 mm (43.3 x 19.7 in) table
Magazine of 14, 21 or 28 tools, with 0.6 sec tool to tool on the 14 and 21 tool versions
12,000 rpm standard spindle with high-torque 10,000 rpm and 20,000 rpm options
Positioning accuracy of 0.006 - 0.020 mm (0.00024 - 0.00079 in) over a 1,000 mm (39.4 in) X stroke

Limitations

At 2,633 mm (103.7 in) tall it needs more headroom than the Speedio W1000Xd1 at 2,553 mm (100.5 in)
The fastest spindle option is 20,000 rpm, and tapping is listed at 6,000 rpm
Continuous spindle output of 7.0 kW limits heavy roughing in steel
Chip to chip rises to 1.4 sec with the 28-tool magazine

Best For

Long parts and multi-vise production on a 1,100 mm (43.3 in) table Fourth-axis and fixture-plate work using 380 mm (15.0 in) of Z Heavier fixtures within the 500 kg (1,102 lb) optional table rating Part families needing up to 28 tools

Frequently Asked Questions

01 What is different between the W1000Xd2 and the Speedio W1000Xd1?

The Speedio W1000Xd1 has 300 mm (11.8 in) of Z, a 10,000 rpm standard spindle with a 16,000 rpm option, 14 or 21 tools and a 400 kg (881.8 lb) optional table load. The W1000Xd2 has 380 mm (15.0 in) of Z, a 12,000 rpm standard spindle with a 20,000 rpm option, up to 28 tools and a 500 kg (1,102 lb) option. X, Y and the table size are the same.

02 How tall a part or setup fits under the spindle?

The spindle nose travels from 150 to 530 mm (5.9 to 20.9 in) above the table. Subtract the tool length, up to 250 mm (9.8 in), and the fixture height to see what fits. The extra Z over the Speedio W1000Xd1, which has 300 mm (11.8 in), is what makes a rotary table practical here.

03 How many tools does the W1000Xd2 hold, and how fast does it change them?

14, 21 or 28 tools. Tool to tool is 0.6 sec with 14 or 21 tools and 0.7 sec with 28; chip to chip is 1.3 sec or 1.4 sec respectively. Tools are MAS-BT30 with MAS-P30T-2 pull studs, up to 110 mm (4.3 in) in diameter and 3.0 kg (6.6 lb).

04 What does the W1000Xd2 need on site?

Power capacity of 10.4 kVA on a 200 to 230 V 3-phase supply, and 45 L/min of air at 0.4 to 0.6 MPa. The machine weighs 3,350 kg (7,385 lb), occupies 2,410 x 2,233 mm (94.9 x 87.9 in) and is 2,633 mm (103.7 in) tall, so measure door openings and ceiling height first.
