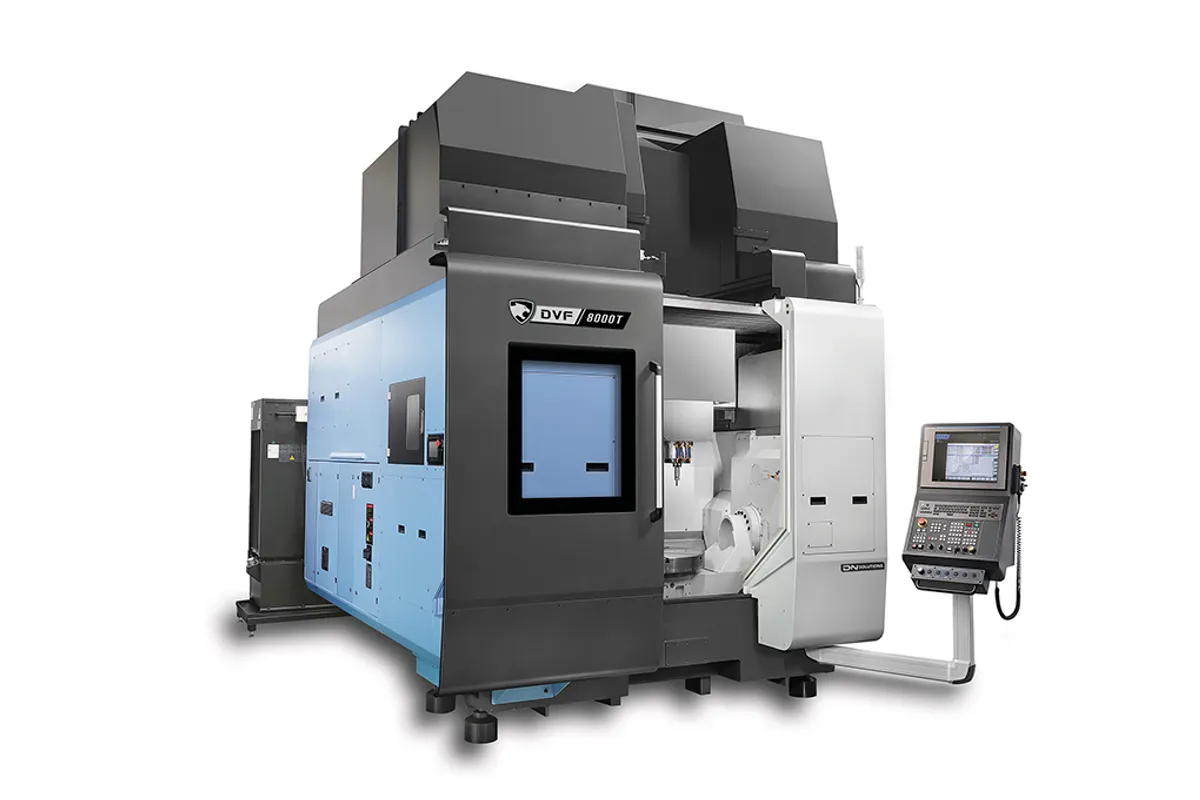

DN Solutions DVF 8000 T
Image: dn-solutions.com, DN Solutions
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the DN Solutions DVF 8000 T cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from DN Solutions. Configuration moves it a long way.
Overview
On the DN Solutions DVF 8000 T the 800 mm (31 in) table of the DVF 8000 becomes a turning table: its C axis is listed at 600 rpm, and DN names this model, alongside the DVF 6500 T, as having a table turning function. It is a 5-axis vertical machining center that can also face, bore and profile a rotating part with a fixed tool.
The cost of that function shows in the load row. The DVF 8000 T carries 700 kg (1,543 lb), half the 1,400 kg (3,086 lb) of the DVF 8000. Travels are identical at 1,000 mm (39 in), 900 mm (35 in) and 685 mm (27 in), and so is the 25,000 kg (55,116 lb) machine weight. A shop choosing between them is really deciding whether its heavy parts or its round parts matter more.
The spindle takes HSK-T63 tooling and runs to 18,000 rpm with 118 N·m (87 ft-lb). Power is 22/18.5 kW (30/25 hp), or 30/24 kW (40/32 hp) as an option. That is a quick, light milling spindle, well matched to finishing and to small tools. For heavier milling on the same table the DVF 8000 T 50 lists 488 N·m (360 ft-lb) on HSK-T100 at 10,000 rpm, with a 40-tool magazine in place of the 60 tools here.
Rapids are 45 m/min (1,772 ipm) and the B axis is listed at 25 rpm. DN's table gives no torque or power for the table in turning, so ask for both. The machine occupies 4,097 × 2,950 mm (161 × 116 in) and is 3,765 mm (148 in) high. DN's series statements on a standard tool length measurement probe, spindle cooling and thermal compensation cover this model as well.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,000 mm (39 in) |
| Y-Axis Travel | 900 mm (35 in) |
| Z-Axis Travel | 685 mm (27 in) |
| Rapid Traverse Rate | 45 m/min (1,772 ipm) |
| Rapid Traverse C | 600 rpm |
| Rapid Traverse B | 25 rpm |
| Max Spindle Speed | 18,000 rpm |
| Spindle Motor Power | 22/18.5 kW (30/25 hp); option: 30/24 kW (40/32 hp) |
| Spindle Torque | 118 N·m (87 ft-lb) |
| Spindle Taper | HSK-T63 |
| Table Diameter | 800 mm (31 in) |
| Max Table Load | 700 kg (1,543 lb) |
| Tool Capacity | 60 |
| Floor Space Required | 4,097 × 2,950 × 3,765 mm (161 × 116 × 148 in) |
| Machine Weight | 25,000 kg (55,116 lb) |
Specifications sourced from dn-solutions.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Turning on an 800 mm (31 in) table with the C axis listed at 600 rpm
- HSK-T63 spindle at 18,000 rpm for fast milling with small and medium tools
- 60-tool magazine holds milling and turning tools together
- Optional 30/24 kW (40/32 hp) spindle rating
- Same 1,000 × 900 × 685 mm (39 × 35 × 27 in) travels as the DVF 8000
Limitations
- Table load is 700 kg (1,543 lb), half the 1,400 kg (3,086 lb) of the DVF 8000
- 118 N·m (87 ft-lb) of spindle torque limits heavy milling; the DVF 8000 T 50 lists 488 N·m (360 ft-lb)
- No torque or power figure is published for the turning table
- Stands 3,765 mm (148 in) high and weighs 25,000 kg (55,116 lb)
Best For
Frequently Asked Questions
01
Yes. DN lists the DVF 8000 T among the models with a table turning function, and the C axis is listed at 600 rpm. The spindle interface is HSK-T63, which lets the spindle hold a fixed turning tool while the table spins the part. DN's table does not give the table's torque or power, so request those for the materials and diameters you plan to turn.
02
DN's table lists 700 kg (1,543 lb) for the DVF 8000 T and 1,400 kg (3,086 lb) for the DVF 8000 without giving a reason. The practical reading is that a table built to spin a part at 600 rpm is rated differently from one that only positions it. Whatever the cause, parts above 700 kg (1,543 lb) belong on the DVF 8000.
03
They suit different cuts. The DVF 8000 T has an HSK-T63 spindle at 18,000 rpm with 118 N·m (87 ft-lb) and holds 60 tools, which favours small tools and finishing. The DVF 8000 T 50 has an HSK-T100 spindle at 10,000 rpm with 488 N·m (360 ft-lb) and holds 40 tools, which favours large cutters and roughing. Both carry 700 kg (1,543 lb) and weigh 25,000 kg (55,116 lb).
04
The table is 800 mm (31 in) in diameter and rated for 700 kg (1,543 lb), and the axes travel 1,000 mm (39 in), 900 mm (35 in) and 685 mm (27 in). With 600 rpm available, large diameters reach a good cutting speed while small diameters near the centre do not, so the machine suits rings and discs more than small shafts.
05
Both are turning-table models with an 18,000 rpm spindle, 118 N·m (87 ft-lb), 60 tools and the same 22/18.5 kW (30/25 hp) and optional 30/24 kW (40/32 hp) ratings. The DVF 6500 T travels 750 mm (30 in), 785 mm (31 in) and 600 mm (24 in), carries 500 kg (1,102 lb) and weighs 14,500 kg (31,967 lb). The DVF 8000 T travels 1,000 mm (39 in), 900 mm (35 in) and 685 mm (27 in), carries 700 kg (1,543 lb) and weighs 25,000 kg (55,116 lb).
