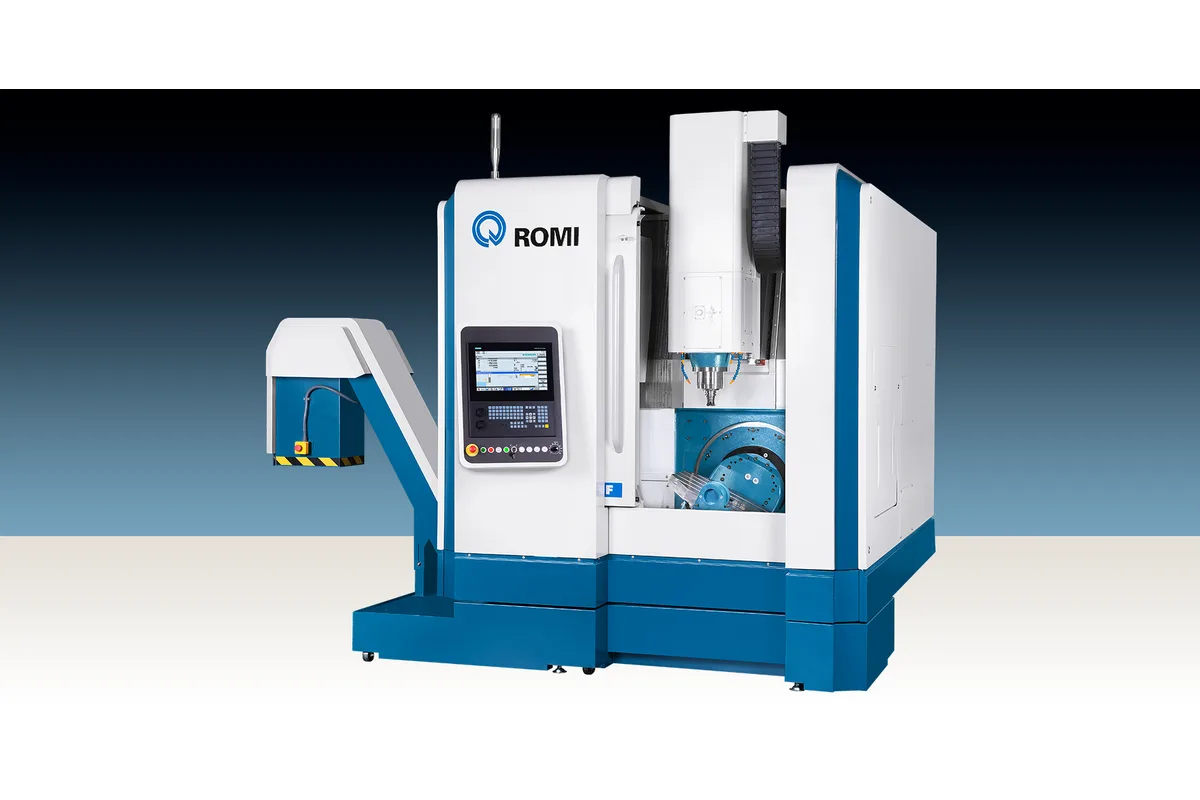

ROMI DCM 620-5F
Image: romi.com, Romi
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
spindle torque
How much does the ROMI DCM 620-5F cost?
Price estimate
We do not have a price for the ROMI DCM 620-5F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The ROMI DCM 620-5F is the five-face version of Romi’s trunnion-table vertical machining center. It has the full mechanical set of a 5-axis machine, a 600 x 600 mm (23.6 x 23.6 in) rotary table tilting on a B axis and turning on a C axis, but Romi specifies it for angular positioning: the table indexes the part to an angle, clamps, and the three linear axes do the cutting.
For most prismatic work that is all that is needed. A housing or manifold with features on five sides is finished in one clamping, and each face is cut with the table locked at 4,500 Nm (3,319 lb-ft) on B and 2,500 Nm (1,844 lb-ft) on C. The B axis tilts from +110° ~ -50° and C turns 360°, both at up to 25 rpm.
This model keeps one choice that the 5X does not: the spindle. It can be ordered at 10,000 rpm with a 20 hp / 15 kW motor or at 15,000 rpm with 22 hp / 16.5 kW; maximum torque is 82 Nm (60.5 lb-ft) either way. The lower-speed version also has the shorter footprint, 3,559 x 3,642 mm (140.1 x 143.4 in). The control is a Siemens Sinumerik 828D.
Linear travels are 620 mm (24.4 in), 520 mm (20.47 in) and 470 mm (18.5 in) in X, Y and Z, with 36 m/min (1,417 in/min) rapids on roller-type linear guides. The table carries 500 kg (1,102 lb), and the largest part is Ø675 x 430 mm height or Ø520 x 330 mm height depending on how far the table must tilt. Thirty ISO 40 tools sit in the magazine, each up to 250 mm (9.8 in) long.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Taper | ISO 40 |
| Max Spindle Speed | 10 to 10,000 rpm (10,000 rpm version); 15 to 15,000 rpm (15,000 rpm version) |
| Spindle Torque | 82 Nm (60.5 lb-ft) (S6 40% duty cycle) |
| Rapid Traverse Xyz | 36 m/min (1,417 in/min) |
| Cutting Feed Rate | 36 m/min (1,417 in/min) |
| B C Axis Speed | 25 rpm |
| X Axis Travel | 620 mm (24.4 in) |
| Y Axis Travel | 520 mm (20.47 in) |
| Z Axis Travel | 470 mm (18.5 in) |
| Distance Spindle Nose to Table | 150 ~ 620 mm (5.9 ~ 24.4 in) |
| B Axis Range | +110° ~ -50° |
| C Axis Range | 360° |
| B C Axis Clamping Torque | B axis 4,500 Nm (3,319 lb-ft); C axis 2,500 Nm (1,844 lb-ft) |
| Table Size | 600 x 600 mm (23.6 x 23.6 in) |
| T-Slots | 5 slots, 18 x 100 mm (0.7 x 3.93 in) width x distance |
| Table Central Guide Hole | Ø 60 mm H7 (Ø 2.36 in H7) |
| Max Workpiece Size | Ø675 x 430 mm height or Ø520 x 330 mm height (Ø26.6 x 16.9 in height or Ø20.5 x 13 in height) |
| Max Table Load | 500 kg (1,102 lb) |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | 75 mm (2.95 in) |
| Max Tool Diameter (adjacent pockets empty) | 127 mm (5 in) up to 10,000 rpm; 117 mm (4.6 in) above 10,000 rpm |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Weight on ATC | 150 kg (331 lb) |
| Tool Holder Type | BT or DIN; CAT optional |
| Spindle Motor Power | 20 hp / 15 kW (10,000 rpm version); 22 hp / 16.5 kW (15,000 rpm version) (S6 - 40% - 10 min.) |
| Spindle Power Continuous | 13.5 hp / 10 kW (10,000 rpm version); 15 hp / 11 kW (15,000 rpm version) |
| Power Requirement | 50 kVA |
| Machine Height | 2,963 mm (116.6 in) |
| Floor Space | 3,559 x 3,642 mm (140.1 x 143.4 in) 10,000 rpm version; 3,559 x 4,476 mm (140.1 x 176 in) 15,000 rpm version (machine without options) |
| Machine Weight | 9,100 kg (20,062 lbs) |
| CNC Control | Siemens Sinumerik 828D |
Specifications sourced from romi.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Five-face machining in one clamping on a 600 x 600 mm (23.6 x 23.6 in) tilting rotary table
- Choice of 10,000 rpm (20 hp / 15 kW) or 15,000 rpm (22 hp / 16.5 kW) spindle
- Table clamping torque of 4,500 Nm (3,319 lb-ft) on B and 2,500 Nm (1,844 lb-ft) on C
- B axis range of +110° ~ -50° with a support bearing on the table
- Rotary joint for coolant through the spindle centre is standard equipment
Limitations
- Specified for angular positioning, not simultaneous 5-axis contouring; that is the DCM 620-5X
- Spindle torque is 82 Nm (60.5 lb-ft), light for heavy steel roughing
- Table load is 500 kg (1,102 lb), fixture included
- Part height falls to 330 mm at Ø520 when the full tilt range is used
Best For
Frequently Asked Questions
01
The 5F machines five faces with angular positioning and uses a Siemens Sinumerik 828D. The DCM 620-5X is described for simultaneous 5-axis machining and uses a Siemens Sinumerik One. The 5F can have a 10,000 or 15,000 rpm spindle; travels, table and tool changer are the same.
02
Romi gives Ø675 x 430 mm height or Ø520 x 330 mm height (Ø26.6 x 16.9 in height or Ø20.5 x 13 in height), with the work layout in the catalogue showing which applies. The table is 600 x 600 mm (23.6 x 23.6 in) and the allowed weight is 500 kg (1,102 lb), evenly distributed.
03
The B axis inclines from +110° ~ -50° and the C axis rotates 360°. Both are driven by independent servo motors at up to 25 rpm with the table unloaded. Clamping torque is 4,500 Nm (3,319 lb-ft) on B and 2,500 Nm (1,844 lb-ft) on C.
04
The magazine holds 30 tools with an ISO 40 taper, BT or DIN, with CAT optional. Maximum tool diameter is 75 mm (2.95 in), or 127 mm (5 in) up to 10,000 rpm with adjacent stations empty. Maximum length is 250 mm (9.8 in) and weight 7 kg (15 lb).
