Haas UMC-500SS

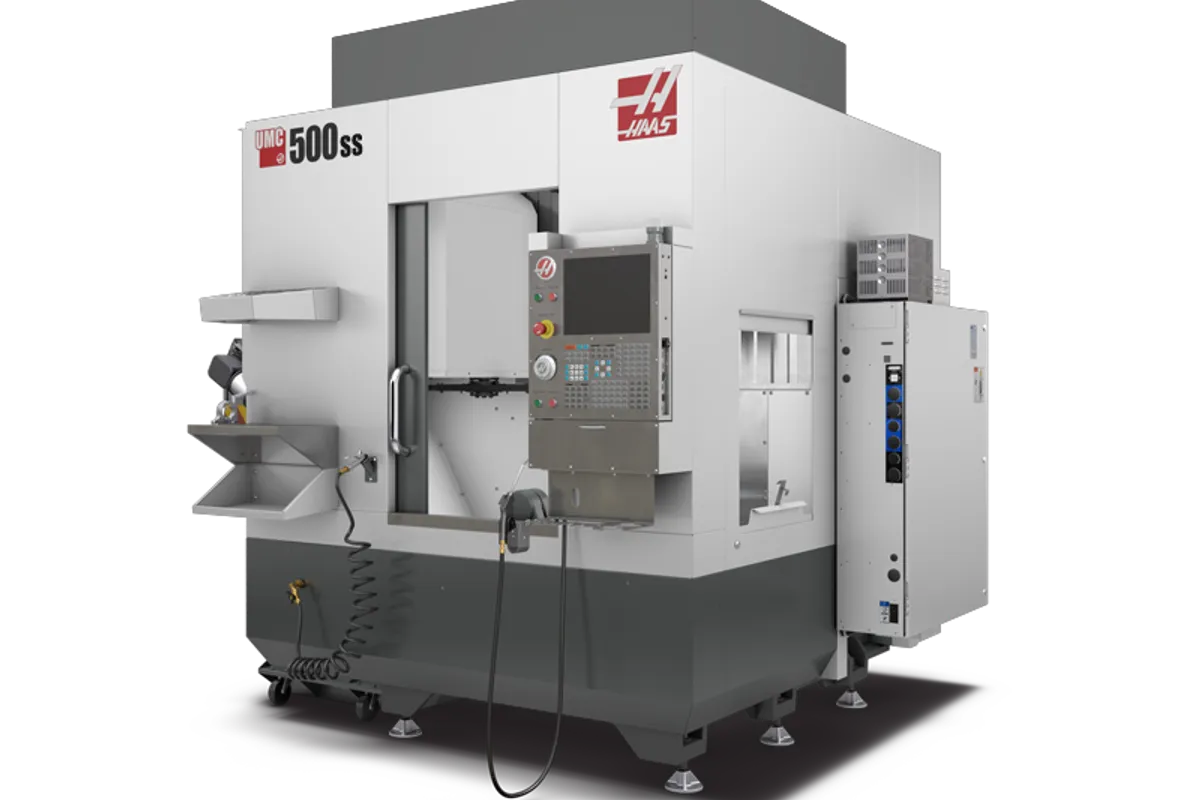

Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas UMC-500SS cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
Speed is the whole case for the Haas UMC-500SS. It shares its 24 × 16 × 16 in (610 × 406 × 406 mm) envelope, 15.7 in (400 mm) platter and 30 hp (22.4 kW) spindle rating with the UMC-500, then raises spindle speed to 12,000 rpm, rapids to 1,200 ipm (30.5 m/min) and the rotary axes to 179°/sec. Haas's starting price is US$185,995.
The rotary figure is the one that changes how the machine behaves in a simultaneous 5-axis cut. In that kind of toolpath a small move at the tool tip can demand a large rotation of B or C, and the feedrate falls to whatever the rotary axis can deliver. At 179°/sec on both axes, each with 1,854 ft-lbf (2,514 N·m) of torque and a 900 ft-lbf (1,220 N·m) brake, the trunnion keeps up with the linear axes far better than a slow rotary would.
The spindle keeps its 90 ft-lbf (122 N·m) at 2,000 rpm, so roughing capability is what the UMC-500 offers, and the extra speed serves small tools and finishing passes. Linear cutting feed rises to 833 ipm (21.2 m/min), and the 30+1 side-mount changer swaps tools in 1.8 s, or 2.4 s chip-to-chip.
Capacity does not grow with the speed: 500 lb (226.8 kg) on the platter, 200 lb (90.7 kg) with a pallet pool, and 18 in (457 mm) of part swing. B tilts from +120° to -35° and C rotates 360°. The taper can be CT40, BT40 or HSK-A63, and Haas's shipping table shows alternative 50+1, 70+1 and 120+1 tool changer configurations.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 24 in (610 mm) |
| Y-Axis Travel | 16 in (406 mm) |
| Z-Axis Travel | 16 in (406 mm) |
| Spindle Nose to Platter (max) | 20 in (508 mm) |
| Spindle Nose to Platter (min) | 4 in (102 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| B Axis Travel | 120 ° to -35 ° |
| B Axis Max Speed | 179 °/sec |
| B Axis Torque | 1,854 ft-lbf (2,514 N·m) |
| B Axis Brake Torque | 900 ft-lbf (1,220 N·m) |
| C Axis Travel | 360 ° |
| C Axis Max Speed | 179 °/sec |
| C Axis Torque | 1,854 ft-lbf (2,514 N·m) |
| C Axis Brake Torque | 900 ft-lbf (1,220 N·m) |
| C Axis Max Part Swing | 18 in (457 mm) |
| Platter Diameter | 15.7 in (400 mm) |
| Max Platter Load | 500 lb (226.8 kg) |
| Max Platter Load with Pallet Pool | 200 lb (90.7 kg) |
| Platter T Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| Platter T Slots | 5 |
| Platter T Slot Center Distance | 2.48 in (63 mm) |
| Max Cutting Feedrate | 833 ipm (21.2 m/min) |
| Rapid Traverse Rate | 1,200 ipm (30.5 m/min) |
| Max Thrust X | 2,750 lbf (12,233 N) |
| Max Thrust Y | 2,750 lbf (12,233 N) |
| Max Thrust Z | 3,400 lbf (15,124 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 2.5 in (64 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5 in (127 mm) |
| Max Tool Length | 12 in (305 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 1.8 s |
| Tool Change (chip-to-chip) | 2.4 s |
| Coolant Capacity | 55 gal (208 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 128 × 98 × 110 in (325 × 249 × 279 cm) |
| Shipping Export Pallet | 128 × 92 × 101 in (325 × 234 × 257 cm) |
| Shipping Export Crate | 128 × 101 × 123 in (325 × 257 × 312 cm) |
| Machine Weight | 11,900 lb (5,400 kg) |
| Shipping Domestic Pallet with Conveyor 50 plus 1 SMTC | 128 × 98 × 110 in (325 × 249 × 279 cm) |
| Shipping Export Pallet with Conveyor 50 plus 1 SMTC | 128 × 92 × 100 in (325 × 234 × 254 cm) |
| Shipping Domestic Pallet with 70 plus 1 SMTC | 128 × 101 × 120 in (325 × 257 × 305 cm) |
| Shipping Export Crate with 70 plus 1 SMTC | 128 × 101 × 141.5 in (325 × 257 × 359 cm) |
| Machine Weight with 70 plus 1 SMTC | 13,320 lb (6,042 kg) |
| Machine Weight with Conveyor 50 plus 1 SMTC | 11,941 lb |
| Shipping Domestic Pallet with Conveyor 120 plus 1 SMTC | 131 × 120 × 108.5 in (333 × 305 × 276 cm) |
| Machine Weight with Conveyor 120 plus 1 SMTC | 13,960 lb (6,332 kg) |
| Shipping Export Pallet with Conveyor 120 plus 1 SMTC | 133.5 × 122.5 × 120 in (339 × 311 × 305 cm) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- B and C axes at 179°/sec, each with 1,854 ft-lbf (2,514 N·m) of torque from cycloidal drives
- 12,000 rpm spindle with the full 30 hp (22.4 kW) and 90 ft-lbf (122 N·m) rating
- 1,200 ipm (30.5 m/min) rapids and 833 ipm (21.2 m/min) cutting feed
- 1.8 s tool-to-tool and 2.4 s chip-to-chip
- CT40, BT40 or HSK-A63 taper, with tools up to 12 in (305 mm) long
Limitations
- Envelope and platter load are no larger than the UMC-500: 24 × 16 × 16 in (610 × 406 × 406 mm) and 500 lb (226.8 kg)
- Only 200 lb (90.7 kg) on the platter when a pallet pool is used
- Full-magazine tool diameter is 2.5 in (64 mm); 5 in (127 mm) tools need the adjacent pockets empty
- Peak torque of 90 ft-lbf (122 N·m) is reached at 2,000 rpm and Haas's table shows no gearbox figure
Best For
Frequently Asked Questions
01
The UMC-500 is listed at 8,100 rpm, 900 ipm (22.9 m/min) rapids and 650 ipm (16.5 m/min) cutting feed. The UMC-500SS is listed at 12,000 rpm, 1,200 ipm (30.5 m/min) and 833 ipm (21.2 m/min). Its B and C axes turn at 179°/sec and its tool change takes 1.8 s tool-to-tool.
02
Not in the listed figures. Spindle power is 30 hp (22.4 kW) with 90 ft-lbf (122 N·m) at 2,000 rpm, the same rating the UMC-500 carries at 8,100 rpm. The rotary axes have 1,854 ft-lbf (2,514 N·m) of torque and 900 ft-lbf (1,220 N·m) brakes.
03
The 15.7 in (400 mm) platter has 5 T-slots, each 0.626 in to 0.63 in (15.9 mm to 16 mm) wide, spaced 2.48 in (63 mm) apart. It carries 500 lb (226.8 kg), fixture included, and the spindle nose can be anywhere from 4 in (102 mm) to 20 in (508 mm) above it.
04
The standard changer is a 30+1 side-mount unit. Haas's shipping table also has rows for a 50+1 changer with conveyor, a 70+1 changer and a 120+1 changer with conveyor. The listed shipping weights are 11,900 lb (5,400 kg) for the base machine, 13,320 lb (6,042 kg) with the 70+1 changer and 13,960 lb (6,332 kg) with the 120+1 changer and conveyor. Treat them as options to be quoted.
05
X and Y are rated at 2,750 lbf (12,233 N) and Z at 3,400 lbf (15,124 N). Rapids are 1,200 ipm (30.5 m/min) and the maximum cutting feedrate is 833 ipm (21.2 m/min) on travels of 24 in (610 mm) in X and 16 in (406 mm) in Y and Z.
