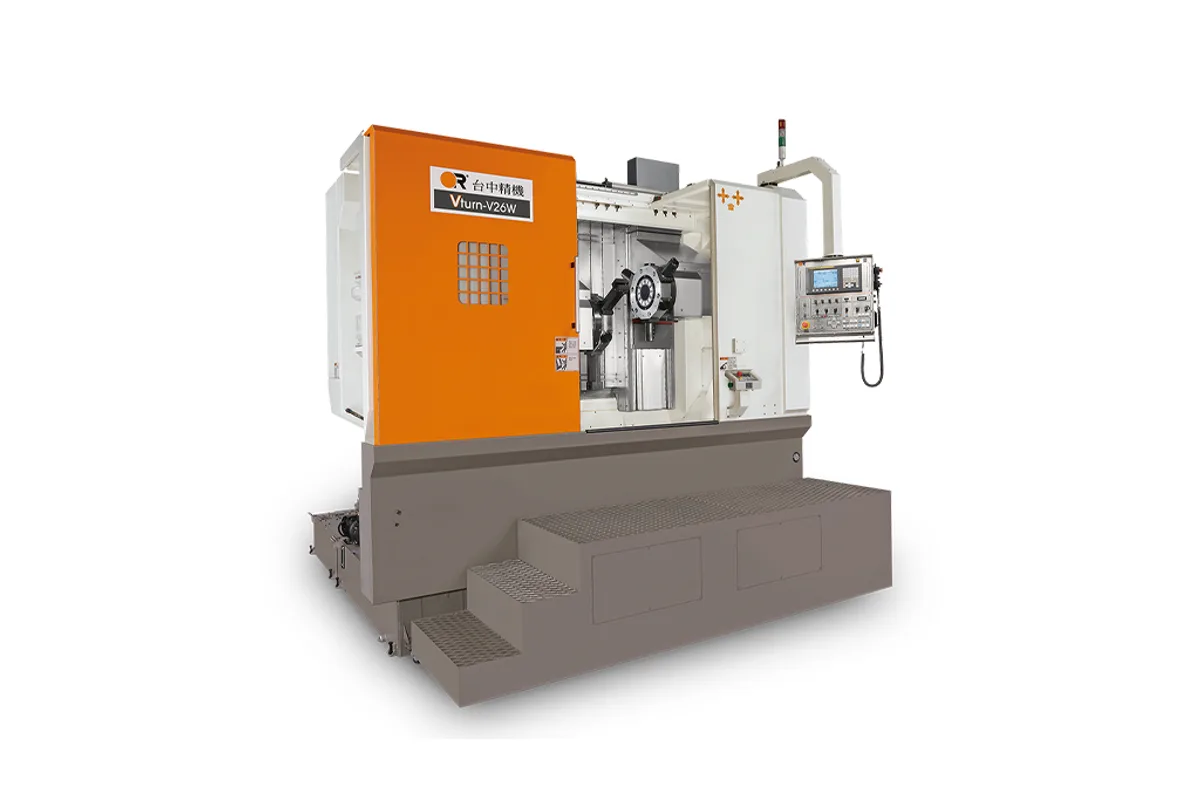

Victor Taichung Vturn-V26W
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
max wheel size
max turning diameter
x axis travel
z axis travel
spindle nose
How much does the Victor Taichung Vturn-V26W cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-V26W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-V26W is a vertical alloy wheel lathe for the large end of the market, wheels up to 26.5 x 13J in. It turns Ø760 mm (Ø29.92 in) on an A2-11 spindle limited to 2,000 rpm, and weighs 12,500 kg (27,557.74 lb).
Its travels are long for a vertical wheel machine: 440 mm (17.32 in) in X, printed as a range of -40 to +400 mm, and 840 mm (33.07 in) in Z. The Z figure is nearly double that of the Vturn-V22W and matches the depth of a 13J rim with clearance to load. The X range passes the spindle centre.
The turret row lists 8 tools, on VDI-50 tooling for □32 shanks. The companion Vturn-V26WT2 lists 6+6 tools and a different set of travels, so the two are not the same machine with a turret added. Check both tables against the wheel drawings before choosing.
Full Specifications
| Parameter | Value |
|---|---|
| Max Wheel Size | 26.5 x 13J in |
| Max Turning Diameter | Ø760 mm (Ø29.92 in) |
| X Axis Travel | 440 mm (17.32 in), -40 ~ +400 mm (-1.57 ~ +15.74 in) |
| Z Axis Travel | 840 mm (33.07 in), 0 ~ +840 mm (0 ~ +33.07 in) |
| Max Spindle Speed | 2,000 rpm |
| Spindle Nose | A2-11 |
| Turret Tools | 8 |
| Tool Shank Size | VDI-50 (□32) |
| Machine Weight | 12,500 kg (27,557.74 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Wheels up to 26.5 x 13J in
- 840 mm (33.07 in) of Z travel for deep rims
- 8 tools on VDI-50 tooling
- X travel of 440 mm (17.32 in) that crosses the centre line
Limitations
- 2,000 rpm maximum spindle speed
- One tool group only; the 6+6 arrangement belongs to the Vturn-V26WT2
- 12,500 kg (27,557.74 lb) for a single-purpose machine
Best For
Frequently Asked Questions
01
26.5 x 13J in, with a maximum turning diameter of Ø760 mm (Ø29.92 in). The spindle nose is A2-11 and the maximum speed is 2,000 rpm.
02
X travel is 440 mm (17.32 in), printed as -40 ~ +400 mm, and Z travel is 840 mm (33.07 in). The Vturn-V26WT2 is listed with 560 mm (22.04 in) in X and 540 mm (21.25 in) in Z.
03
8 tools according to the turret row, with VDI-50 tooling for □32 shanks. The machine weighs 12,500 kg (27,557.74 lb).
