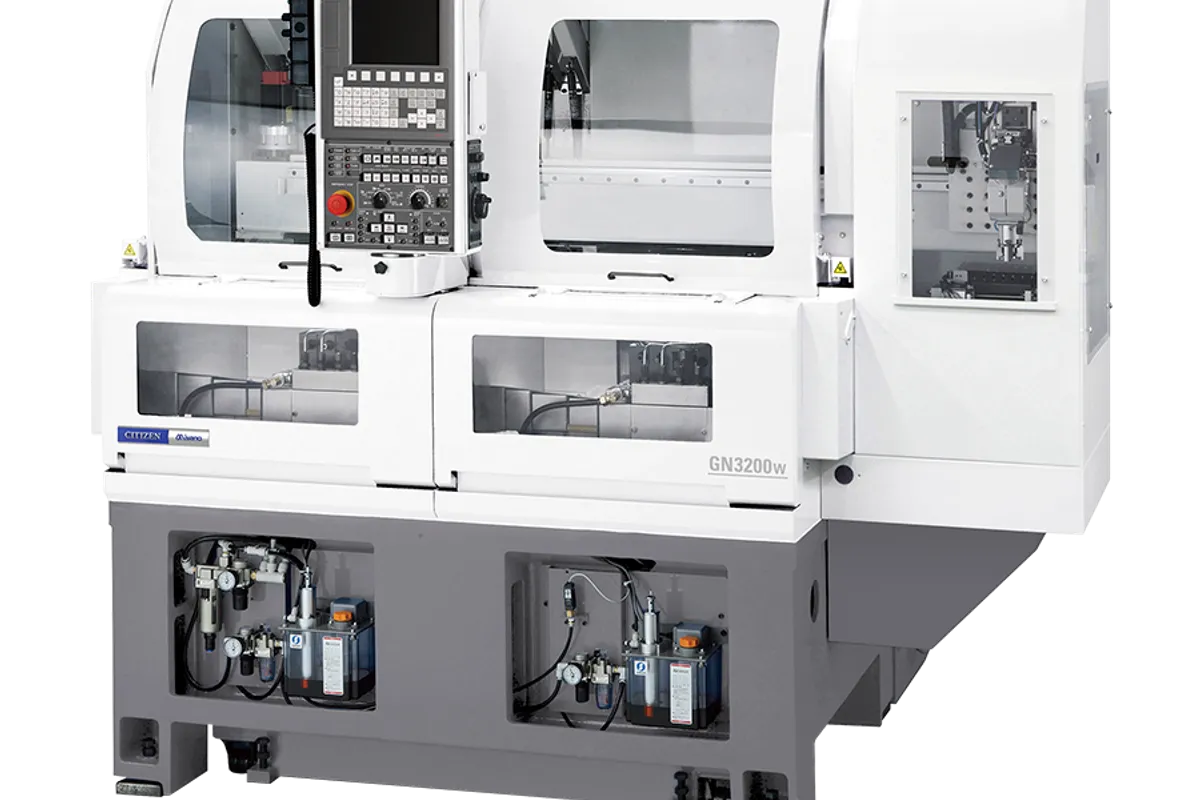

Citizen Miyano GN-3200W

The Citizen Miyano GN-3200W is a twin-gang-slide CNC lathe with 32mm bar capacity, adding a second independent tool slide to the proven GN-3200 platform. The 'W' designation indicates the dual-slide configuration, which enables simultaneous cutting operations from opposite sides of the workpiece—effectively halving cycle times on parts that allow overlapping operations compared to the single-slide GN-3200.

The twin gang slides operate independently on separate X and Z axes, with one slide typically handling OD turning operations while the second performs facing, grooving, or drilling from the opposite side. This concurrent processing capability is the GN-3200W's primary advantage—on a part that requires 30 seconds on a single-slide machine, the GN-3200W can often complete it in 18-22 seconds by overlapping compatible operations.

The main spindle reaches 8,000 RPM with the same proven construction as the GN-3200—thermally symmetric castings, precision-ground ways, and meticulous Miyano assembly standards. Both gang slides ride on hardened and ground ways, providing the rigidity needed for simultaneous cutting without cross-slide vibration interference. The dual-path control manages the synchronization and collision avoidance between the two slides.

Programming the GN-3200W requires careful planning to identify which operations can run simultaneously and which must be sequential. The dual-path Mitsubishi control provides the framework for overlapping operations, but the programmer must understand the cutting force interactions and ensure that simultaneous cuts don't degrade surface finish or accuracy. Experienced programmers can typically overlap 40-60% of the cutting cycle.

The GN-3200W is the ultimate cycle-time machine for high-volume production of small turned parts. It combines the inherent speed advantage of gang-type tooling (no turret indexing) with the productivity multiplier of simultaneous cutting. For shops producing hundreds of thousands of parts per year in the 10-32mm range, the GN-3200W delivers per-part costs that no turret-based machine can match.

The investment in a GN-3200W makes sense when production volumes are high enough to amortize the additional cost over the single-slide GN-3200, and when the parts allow meaningful overlap between operations. Shops running 50,000+ parts per month on a single part number see the fastest payback.
