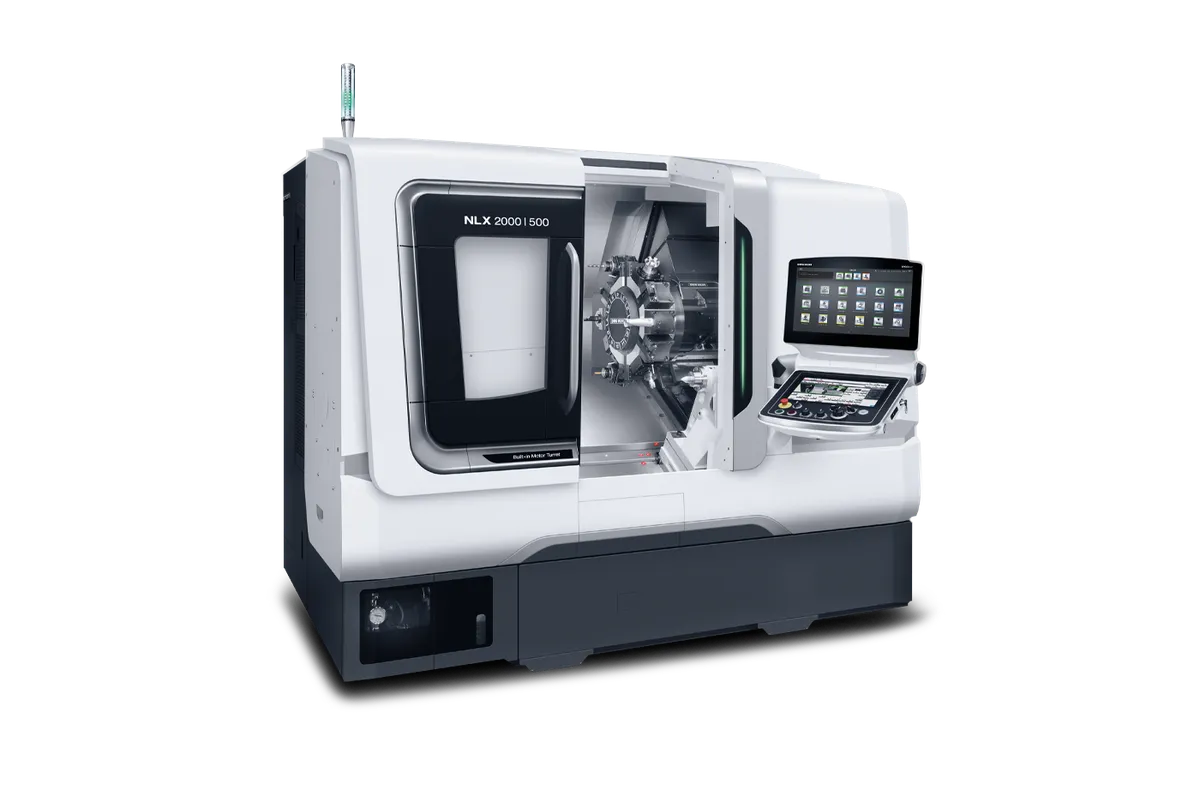

DMG Mori NLX 2000
Key Specifications
Max Spindle
Tool Capacity
Rapid Traverse
Spindle Power
Max Turn Length
max turning diameter
Overview
The DMG Mori NLX 2000 sits in the sweet spot of the NLX lineup, offering more capacity than the compact NLX 1500 while keeping a manageable footprint for shops that do not need the NLX 2500. With a 300 mm (11.8 in) maximum turning diameter and 660 mm (26.0 in) turning length, it covers a wide range of small-to-mid-size production turning. The machine earned its reputation as a reliable production workhorse in automotive, medical, and general job shop environments.
The main spindle delivers 18.5 kW (24.8 hp) at 4,000 RPM with 478 Nm (353 ft-lb) of torque through an A2-6 spindle nose. The turnMASTER spindle technology with integrated cooling jacket maintains thermal stability throughout production runs. Bar capacity is 65 mm (2.56 in) with a standard 8-inch chuck, large enough for the most common production bar stock sizes. The optional sub-spindle enables backworking for complete part processing.
The BMT turret is the standout feature. Available in BMT 40 or BMT 60 configurations with 10 to 12 tool stations, the built-in motor turret spins driven tools at up to 12,000 RPM. This is genuine milling capability, not the token live tooling found on entry-level lathes. The optional Y-axis adds plus/minus 50 mm of travel for off-center milling and drilling. Combined with box guideways on all axes, the NLX 2000 delivers surface finish quality that linear guide machines struggle to match.
Thermal displacement control includes cooled ball screws, spindle temperature management, and bed temperature monitoring. The 2nd Generation NLX 2000 (launched 2024) added the SmartSCALE direct measuring system, increased bar capacity, and cut power consumption by 16% versus the original.
At 40,000-95,000 new, the NLX 2000 competes with the Mazak QT-200M, Okuma LB2000 EX III, Doosan Puma 2600, and Haas ST-20Y. Used NLX 2000 machines from 2015-2022 trade between 0,000 and 20,000. The NLX 2000 represents the best balance of size, capability, and value in the NLX family.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 300 mm (11.8 in) |
| Max Turning Length | 660 mm (26.0 in) |
| Max Spindle Speed | 4,000 RPM |
| Spindle Motor Power | 18.5 kW (24.8 hp) |
| Spindle Torque | 478 Nm (353 ft-lb) |
| Spindle Nose | A2-6 |
| Chuck Size | 210 mm (8 in), optional 254 mm (10 in) |
| Bar Capacity | 65 mm (2.56 in) |
| X Axis Travel | 230 mm (9.1 in) |
| Y Axis Travel | +/-50 mm (+/-2.0 in), optional |
| Z Axis Travel | 660 mm (26.0 in) |
| Turret Type | BMT 40 or BMT 60, 10-12 stations |
| Tool Capacity | 10-12 stations |
| Driven Tool Speed | Up to 12,000 RPM (BMT) |
| Rapid Traverse Rate | 30 m/min (1,181 ipm) X and Z |
| Machine Weight | 4,800 kg (10,582 lb) |
| CNC Control | CELOS with Siemens or Mitsubishi MAPPS |
| 366 Mm | 14.4 in. |
| 510 Mm | 20.1 in. |
| 65 Mm | 2.6 in. |
| 260 Mm | 10.2 in. |
| 100 Mm | 3.9 in. |
| 590 Mm | 23.2 in. |
| Customer Benefits | Before the actual machining, the machining status can be checked by using a graphic |
Specifications sourced from us.dmgmori.com — verified 2026-03-28
Strengths & Limitations
Strengths
- BMT turret with 12,000 RPM driven tools provides genuine milling capability that eliminates second operations for cross-holes, flats, and pockets
- Box guideways on all axes deliver surface finish quality that linear guide machines cannot match, especially on finish passes in harder materials
- 65 mm bar capacity handles common production bar stock sizes, matching or exceeding most competitors in this frame size
- Thermal displacement control with cooled ball screws and spindle cooling holds tolerances across production shifts without operator adjustment
- 2nd Generation models cut power consumption 16% and add SmartSCALE direct measuring for tighter positional accuracy
- Compact footprint relative to its capability makes it suitable for shops with limited floor space that still need production-grade turning
Limitations
- Starting at 40K, it costs significantly more than a Haas ST-20Y (0K) or Doosan Puma 2600 (00K) for similar work envelopes
- 4,000 RPM max spindle speed is adequate but trails purpose-built high-speed lathes for small-diameter aluminum work
- 300 mm max turning diameter limits workpiece size, and shops regularly exceeding this should look at the NLX 2500 or NLX 3000
- DMG Mori service costs and parts pricing are the highest among the major builders, impacting total cost of ownership
Best For
Frequently Asked Questions
01
A new NLX 2000 starts around 40,000 in base configuration. Adding BMT turret, Y-axis, sub-spindle, and bar feeder prep pushes the price to 75,000-95,000. Used machines from 2015-2022 sell between 0,000 and 20,000.
02
The NLX 2500 has a larger turning diameter (366 mm vs 300 mm), longer turning length (705 mm vs 660 mm), more powerful spindle (18.5 kW with 828 Nm vs 478 Nm), and larger bar capacity (105 mm vs 65 mm on 2nd Gen). Choose the NLX 2000 for smaller parts where its compact size and speed are advantages.
03
The 2nd Gen (launched 2024) added SmartSCALE direct measuring, increased bar capacity, reduced power consumption by 16%, cut air use by 12%, and reduced oil consumption by 50%. The turnMASTER spindle was also upgraded.
04
Both are mid-size production lathes. The NLX 2000 has box guideways and BMT turret advantages. The Mazak offers MAZATROL conversational programming and generally better North American service. Pricing is close.
05
Yes. The NLX 2000 works with bar feeders (LNS, IEMCA), Robo2Go collaborative robots, and gantry loaders. The compact size makes it ideal for production cells.
