Hyundai WIA SE2008/SE2008M
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview

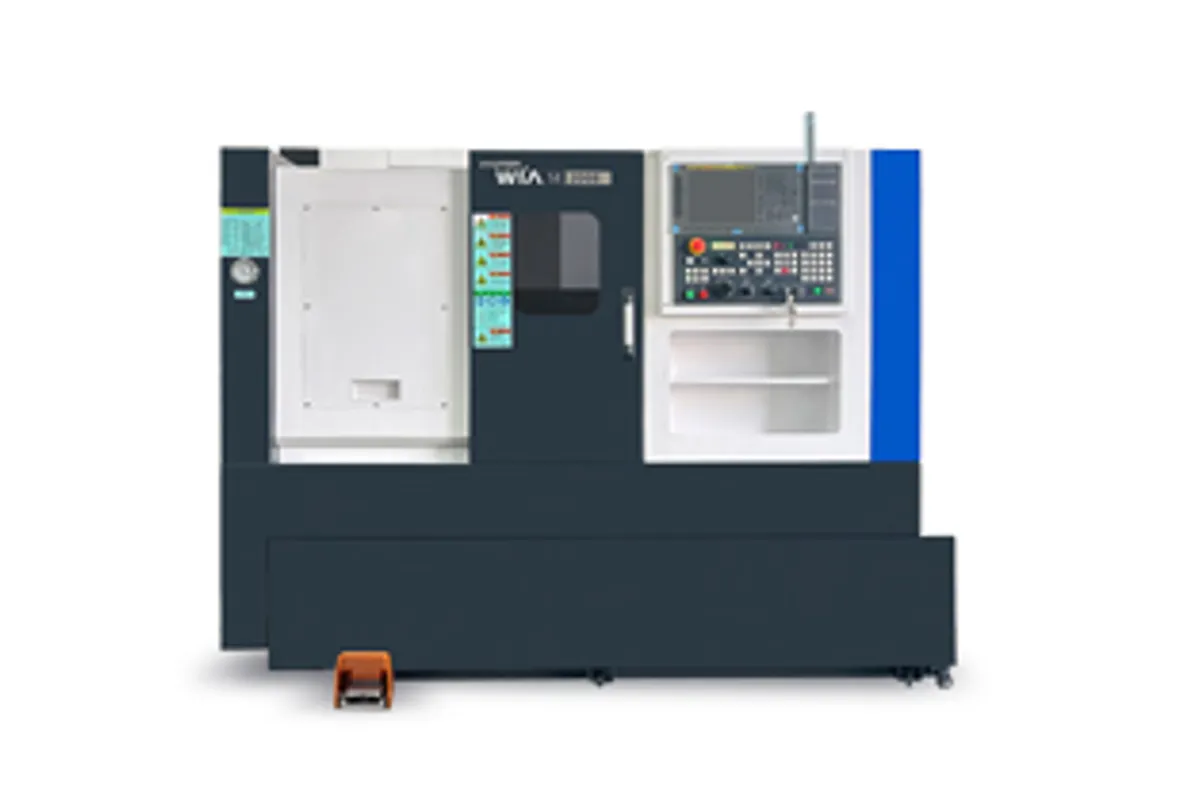

The Hyundai WIA SE2008/SE2008M are compact CNC turning centers built on a 45-degree slant bed with linear motion guideways, available in 2-axis turning (SE2008) and mill-turn (SE2008M) configurations. With a 6-inch chuck, 6,000 RPM spindle, and exceptionally fast 36 m/min rapid traverse on both axes, these machines are optimized for high-speed, short-cycle production of small turned components.
Both models share a 15/11 kW (20/15 hp) belt-driven spindle with 95.5/52.5 Nm torque. The SE2008 offers a maximum turning diameter of 370 mm (14.6 in) and turning length of 330 mm (13 in), while the SE2008M reduces the turning diameter to 320 mm (12.6 in) and turning length to 300.5 mm (11.8 in) to accommodate the live tooling turret configuration. The SE2008M adds 6,000 RPM milling capability for cross-drilling, milling flats, and tapping operations.
The 12-station turret accepts 25/40 mm tooling on the SE2008 and 20/32 mm on the SE2008M. X-axis travel is 210 mm and Z-axis travel is 330 mm on both models. The 36 m/min rapid traverse on both X and Z axes is among the fastest in the compact lathe class, significantly reducing non-cutting time on high-volume production programs.
Pricing for the SE2008/SE2008M is approximately $50,000-$75,000 new. These machines compete with the DN Solutions Lynx 2100A, Haas ST-10, and similar compact production lathes. The combination of fast rapids, a 15 kW spindle, and optional live tooling makes the SE2008 family particularly attractive for high-volume, short-cycle production environments.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 370 mm (14.6 in) SE2008 / 320 mm (12.6 in) SE2008M |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 6,000 RPM |
| Spindle Motor Power | 15/11 kW (20/15 hp) |
| Spindle Torque | N.m |
| X Axis Travel | 210 mm (8.3 in) |
| Z Axis Travel | 330 mm (13 in) |
| Rapid Traverse X | 36 m/min (1,417 ipm) |
| Rapid Traverse Z | 36 m/min (1,417 ipm) |
| Turret Stations | 12 |
| Tool Size | mm |
| Milling Tool Speed | r/min |
| Guideway Type | Linear motion guides |
| Bed Angle | 45 degrees |
| Spindle Drive | Belt driven |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 36 m/min rapid traverse on both axes is among the fastest in the compact lathe class for minimal non-cutting time
- 15 kW spindle with 6,000 RPM delivers strong cutting performance for the 6-inch chuck class
- 370 mm max turning diameter on SE2008 is larger than most 6-inch chuck competitors
- 12-station turret provides ample tooling capacity for complex multi-tool programs
- SE2008M adds 6,000 RPM live tooling for mill-turn capability without a large price premium
- 45-degree slant bed with LM guides provides rigidity and fast, accurate positioning
Limitations
- 95.5 Nm spindle torque is adequate but lower than the SE2200A's 127 Nm for heavy roughing
- 330 mm Z-axis travel limits turning length for longer components — consider SE2200LA for shaft work
- SE2008M reduces turning diameter from 370 mm to 320 mm to accommodate live tooling
- 6-inch chuck limits clamping force for larger-diameter heavy parts
Best For
Frequently Asked Questions
01
The SE2008 has a larger turning diameter (370 mm vs 165 mm), 12-station turret (vs 6-station), and a 45-degree bed (vs 60-degree). The SE2008 also offers an optional live tooling variant (SE2008M). Both share the same 15 kW spindle and 6,000 RPM speed. The SE2008 is more versatile while the KIT4500 is more compact.
02
The SE2008 prices at approximately $50,000-$60,000 new. The SE2008M with live tooling runs $65,000-$75,000. Used machines from 2020 onward are limited as these are newer models in the Hyundai WIA lineup.
03
Yes, the SE2008/SE2008M delivers 36 m/min rapid traverse on both X and Z axes. This is faster than most compact lathes in this class, which typically run 20-30 m/min on X. The fast rapids reduce non-cutting time significantly on short-cycle programs.
04
Both the SE2008 and SE2008M run on the Fanuc 0i-TF Plus control with Manual Guide i conversational programming, consistent with the rest of Hyundai WIA's current turning center lineup.
