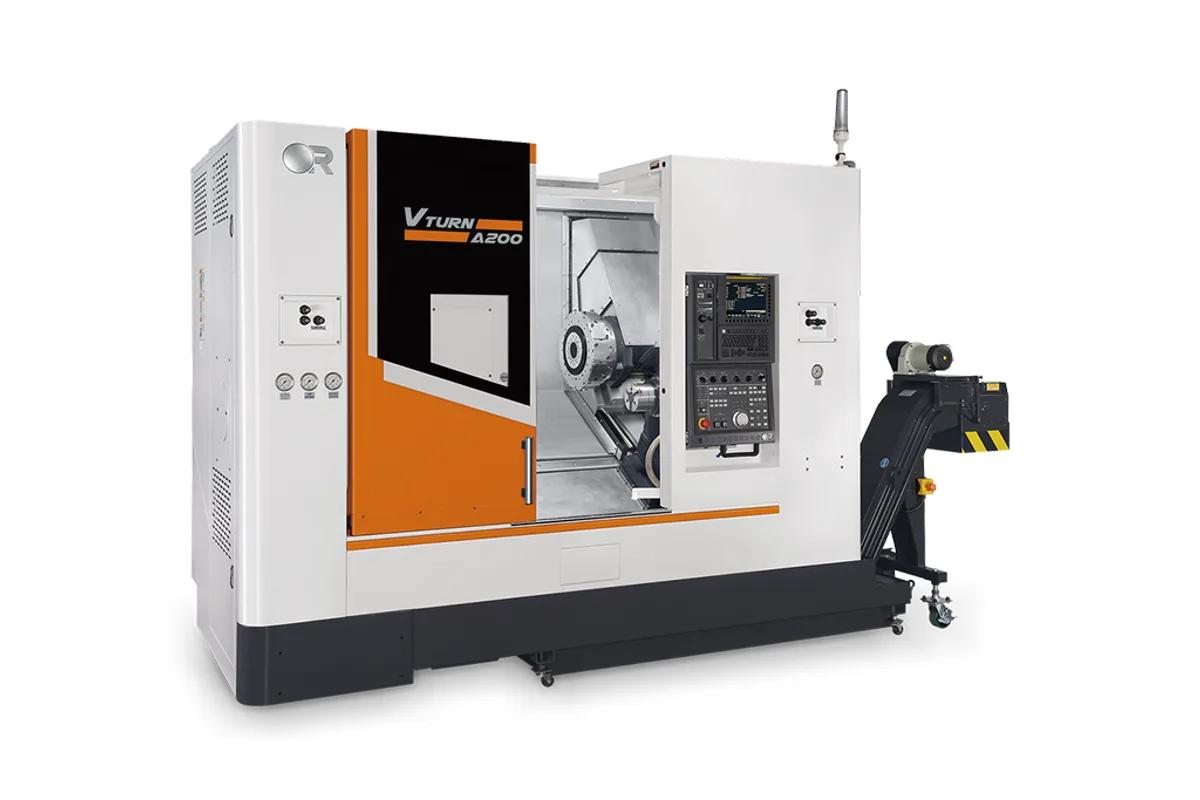

Victor Taichung Vturn-A200/60
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-A200/60 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-A200/60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-A200/60 is an 8 in chuck turning center offered in five configurations, from a plain C-axis machine to one with Y axis and sub-spindle. The base figures are shared: Ø330 mm (Ø12.99 in) maximum turning diameter, 604 mm (23.77 in) turning length, a 4,200 rpm A2-6 main spindle with Ø52 mm (Ø2.04 in) bar capacity, and a 12-tool turret on □20 mm shanks.
Victor Taichung labels the five columns SM, CM, SCM, YCM and YSCM. Reading the table, the three whose names include an S carry a sub-spindle: 7,000 rpm, an A2-5 nose with a 5 in chuck, and Ø30 mm (Ø1.18 in) bar capacity. The two without it, CM and YCM, list an M.T. #4 tailstock quill in its place. Weight runs from 6,500 kg (14,330.02 lb) for the CM to 7,000 kg (15,432.33 lb) for the YSCM.
That small sub-spindle defines what the machine is good at. A Ø30 mm bore and a 5 in chuck are sized for picking off bar parts and finishing their back ends at high speed, not for holding the full Ø330 mm the main spindle can swing. Shops with flange work should treat the second spindle as a bar-part device.
The maker's notes add a one-piece 30˚ slant bed, rapid feeds of 24/24 m/min (X/Z), a servo turret with BMT tooling for milling, and a digital tailstock. Swing over the carriage is Ø720 mm (Ø28.34 in) in four columns and Ø555 mm (Ø21.85 in) in the SM column.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | Ø286 mm (Ø11.25 in) |
| Max Turning Diameter | Ø330 mm (Ø12.99 in) |
| Max Turning Length | 604 mm (23.77 in) |
| Swing Over Carriage | SM: Ø555 mm (Ø21.85 in); CM, SCM, YCM, YSCM: Ø720 mm (Ø28.34 in) |
| Max Spindle Speed | 4,200 rpm |
| Spindle Nose | A2-6 (8") |
| Bar Capacity | Ø52 mm (Ø2.04 in) |
| Sub Spindle Speed | SM, SCM, YSCM: 7,000 rpm (CM, YCM: not listed) |
| Sub Spindle Nose | SM, SCM, YSCM: A2-5 (5") (CM, YCM: not listed) |
| Sub Spindle Bar Capacity | SM, SCM, YSCM: Ø30 mm (Ø1.18 in) (CM, YCM: not listed) |
| Turret Tools | 12 |
| Tool Shank Size | □20 mm |
| Tailstock Quill Taper | CM, YCM: M.T. #4 (SM, SCM, YSCM: not listed) |
| Machine Weight | SM, SCM: 6,700 kg (14,770.95 lb); CM: 6,500 kg (14,330.02 lb); YCM: 6,800 kg (14,991.41 lb); YSCM: 7,000 kg (15,432.33 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Five configurations on one frame, including Y axis and sub-spindle in the YSCM column
- Sub-spindle runs to 7,000 rpm for finishing small bar parts
- 12-tool servo turret with BMT tooling for milling, per the maker
- Rapid feeds of 24/24 m/min (X/Z)
- Fanuc 0iTF Plus control with a 10.4 in screen is standard
Limitations
- The sub-spindle passes only Ø30 mm (Ø1.18 in) bar and has a 5 in chuck
- Columns with a sub-spindle list no tailstock quill
- Main bar capacity is Ø52 mm (Ø2.04 in); a large spindle bore is an option
- Tool shanks are □20 mm, light for roughing
Best For
Frequently Asked Questions
01
The SM, SCM and YSCM columns list one: 7,000 rpm, an A2-5 nose with a 5 in chuck and Ø30 mm (Ø1.18 in) bar capacity. The CM and YCM columns have no sub-spindle figures and list an M.T. #4 tailstock quill.
02
An A2-6 nose with an 8 in power chuck, 4,200 rpm maximum speed and Ø52 mm (Ø2.04 in) bar capacity. Victor Taichung describes it as belt driven with a shortened belt, and lists a large spindle bore as an option.
03
It depends on the configuration: 6,500 kg (14,330.02 lb) for the CM, 6,700 kg (14,770.95 lb) for the SM and SCM, 6,800 kg (14,991.41 lb) for the YCM and 7,000 kg (15,432.33 lb) for the YSCM.
04
Maximum turning diameter is Ø330 mm (Ø12.99 in), standard turning diameter is Ø286 mm (Ø11.25 in) and maximum turning length is 604 mm (23.77 in). These three figures are the same in all five columns.
