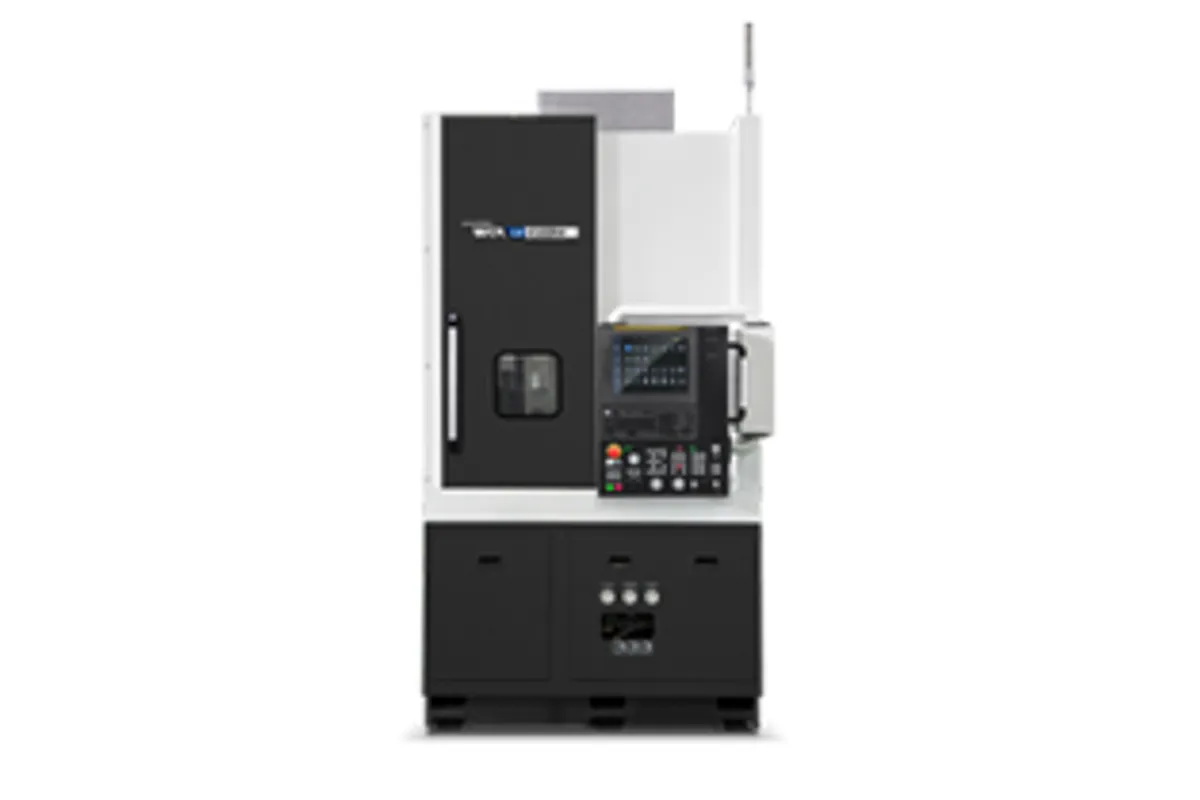

Hyundai WIA LV4500 Series
Key Specifications
X Travel
Z Travel
Rapid Traverse
Spindle Power
Max Turn Length
max turning diameter
Overview
The Hyundai WIA LV4500 Series is a compact vertical turning center designed for high-speed production of small-to-medium disc-shaped workpieces up to 495 mm (19.5 in) diameter. Available in R/L (standard turning) and RM/LM (milling-capable) configurations, the LV4500 is the smallest member of Hyundai WIA's VTL family, optimized for high-volume automotive and precision component production where fast cycle times on smaller parts are the priority.
The belt-driven spindle produces 26/18.5 kW (34.8/24.8 hp) at up to 3,000 RPM, generating 863/614 N.m of torque. The 3,000 RPM maximum speed is the highest in the LV series, reflecting the machine's optimization for smaller diameters where high RPM drives surface speed and cycle time reduction. The 12-inch chuck accommodates the range of small-to-medium disc parts common in automotive brake, bearing, and precision component production.
Roller guideways on both axes deliver fast, precise positioning at 24 m/min (945 ipm) rapid traverse. This is faster than the larger box way LV models, prioritizing positioning speed and throughput over the absolute rigidity of box ways. Axis travels of 320 mm (12.6 in) in X and 495 mm (19.5 in) in Z are compact and efficient for the machine's workpiece envelope. The 12-station turret with 25/50 mm tool capacity provides adequate tooling for production programs.
The RM/LM variants add 5,000 RPM live milling capability for complete mill-turn operations. New LV4500 Series machines price between $120,000 and $175,000, making them the most accessible entry point into Hyundai WIA's vertical turning lineup. The series competes with Emag VL 2, DN Solutions Puma VTR-1012F, and other compact production VTLs.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 495 mm (19.5 in) |
| Max Turning Height | 465 mm (18.3 in) |
| Chuck Size | inch |
| Table Speed Max | 3,000 RPM |
| Spindle Motor Power | 26/18.5 kW (34.8/24.8 hp) |
| Spindle Torque | N.m |
| X-Axis Travel | 320 mm (12.6 in) |
| Z-Axis Travel | 495 mm (19.5 in) |
| Rapid Traverse Rate | 24/24 m/min (945 ipm) X/Z |
| Turret Stations | 12 |
| Tool Size | mm |
| Guideway Type | Roller guideways |
| Spindle Drive | Belt |
| Milling Tool Speed | r/min |
| Machine Configuration | Vertical turning center |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Max Turning Length | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 3,000 RPM table speed is the highest in the LV series, enabling maximum surface speed on smaller-diameter workpieces for fast cycle times
- Roller guideways with 24 m/min rapid traverse prioritize positioning speed for high-volume production throughput
- 26 kW spindle power with 863 N.m torque provides strong material removal capability despite the compact machine size
- RM/LM variants with 5,000 RPM live milling enable complete mill-turn operations on production parts without second setup
- 12-inch chuck and 495 mm max diameter cover the most common small-to-medium disc part sizes in automotive and bearing production
- Most affordable entry point into Hyundai WIA's VTL lineup at $120K-$175K with competitive capability
Limitations
- Roller guideways provide less vibration damping than box ways -- shops running heavy interrupted cuts on rough castings should consider box way models
- 495 mm maximum turning diameter limits the machine to small-to-medium parts only
- Compact axis travels limit workpiece complexity and depth of cut reach compared to larger VTLs
- Belt-driven spindle provides less peak torque than gear-driven alternatives for the heaviest roughing applications
Best For
Frequently Asked Questions
01
New LV4500 Series machines price between $120,000 and $175,000. Base R/L models start around $120,000-$140,000, while RM/LM models with 5,000 RPM live tooling run $145,000-$175,000. This makes the LV4500 the most affordable Hyundai WIA VTL and a competitive option versus Emag VL 2.
02
The LV4500 prioritizes positioning speed and throughput for high-volume production of smaller parts. Roller guideways deliver faster rapid traverse (24 m/min vs. 12-20 m/min on box way models) and lower friction for more precise positioning. For the lighter cutting forces on smaller workpieces, roller guides provide optimal performance.
03
The LV4500 is slightly smaller (495 mm vs. 550 mm max diameter, 12-inch vs. 15-inch chuck) but faster (3,000 RPM vs. 2,000 RPM). The LV4500 uses roller guideways for speed; the LV500 uses LM guides. Both have 12 tool stations. Choose the LV4500 for smaller parts at higher speeds; the LV500 for larger parts needing more capacity.
04
Yes. The vertical configuration is inherently automation-friendly, and the R/L structure options are specifically designed for gantry loader integration. The compact size makes the LV4500 ideal for tight multi-machine cells sharing a single automation system.
