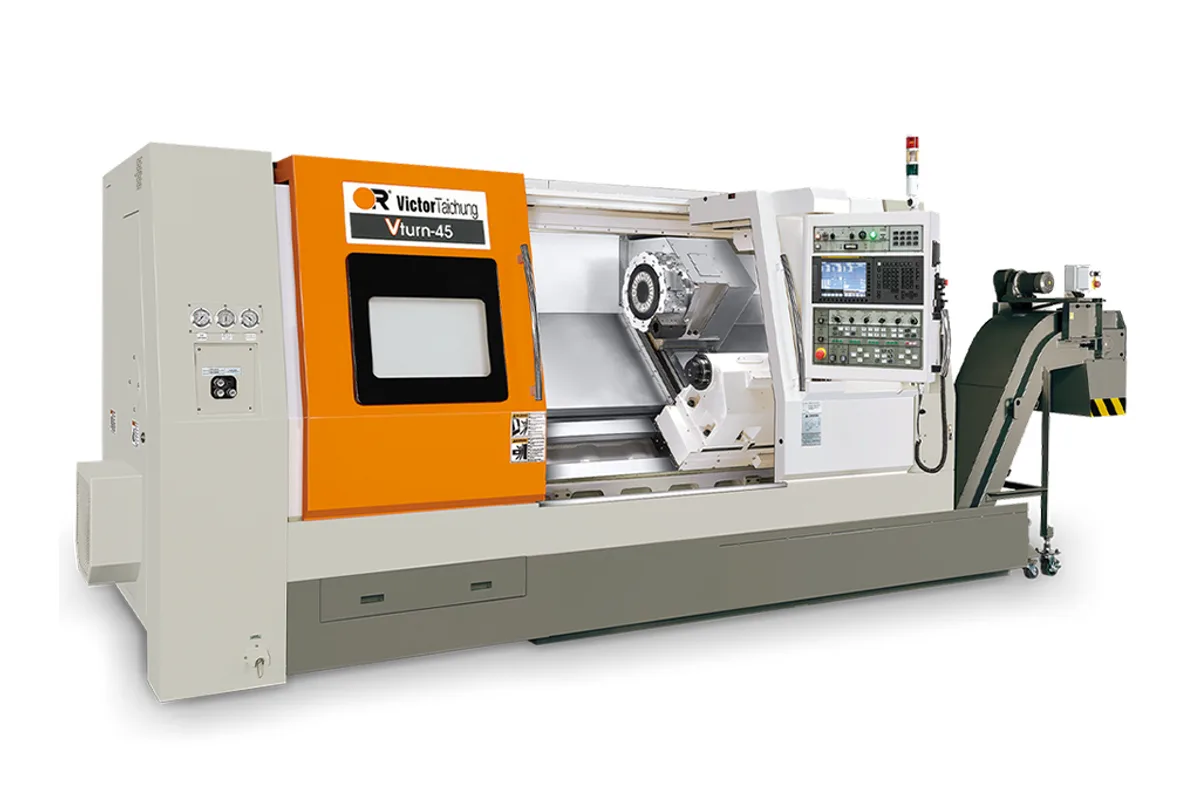

Victor Taichung Vturn-45/125
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-45/125 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-45/125 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-45/125 is a big-bore lathe: Ø117.5 mm (Ø4.62 in) of bar capacity through an A2-11 spindle with a 15 in chuck, at speeds up to 2,000 rpm. Turning length is 1,325 mm (52.16 in). It is the Vturn-40 with a larger spindle, and the maker calls it an even heavier cutting lathe.
Bore size is the whole reason for the model. Pipe, thick-walled tube and bar that will not pass the Ø91 mm of the Vturn-40/125 go through this spindle, and a large spindle bore of 135mm is available beyond that. An 18 in chuck is offered as an option to the standard 15 in.
Top speed drops from the 2,500 rpm of the Vturn-40/125 to 2,000 rpm, which hardly matters on work of this diameter. Turning capacity is the same as on the smaller-bore machine. The 2 Axis column gives Ø620 mm (Ø24.4 in) maximum and Ø520 mm (Ø20.47 in) standard; the C Axis column Ø580 mm (Ø22.83 in) and Ø492 mm (Ø19.37 in); the Y Axis column Ø520 mm (Ø20.47 in) and Ø432 mm (Ø17 in). Swing over the carriage is Ø620 mm (Ø24.4 in) in all three.
Tools number 10 on the 2 Axis turret and 12 with live tooling, on □32 mm shanks. Weight is 12,700 kg (27,998.67 lb), 13,000 kg (28,660.05 lb) or 13,300 kg (29,321.44 lb) by configuration.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | 2 Axis: Ø520 mm (Ø20.47 in); C Axis: Ø492 mm (Ø19.37 in); Y Axis: Ø432 mm (Ø17 in) |
| Max Turning Diameter | 2 Axis: Ø620 mm (Ø24.4 in); C Axis: Ø580 mm (Ø22.83 in); Y Axis: Ø520 mm (Ø20.47 in) |
| Max Turning Length | 1,325 mm (52.16 in) |
| Swing Over Carriage | Ø620 mm (Ø24.4 in) |
| Max Spindle Speed | 2,000 rpm |
| Spindle Nose | A2-11 (15") |
| Bar Capacity | Ø117.5 mm (Ø4.62 in) |
| Turret Tools | 2 Axis: 10; C Axis, Y Axis: 12 |
| Tool Shank Size | □32 mm |
| Tailstock Quill Taper | 2 Axis: M.T. #5 (live); C Axis, Y Axis: M.T. #5 |
| Machine Weight | 2 Axis: 12,700 kg (27,998.67 lb); C Axis: 13,000 kg (28,660.05 lb); Y Axis: 13,300 kg (29,321.44 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø117.5 mm (Ø4.62 in) bar capacity, with a large spindle bore of 135mm available
- 15 in hydraulic chuck as standard and an 18 in chuck as an option
- Ø620 mm (Ø24.4 in) maximum turning diameter on the 2 Axis machine
- C Axis and Y Axis columns with 12 tools
- Genuine 45-degree one-piece slant bed, per the maker
Limitations
- Top spindle speed is 2,000 rpm
- 10 tools on the 2 Axis turret
- 1,325 mm (52.16 in) is the shortest bed of the Vturn-45 line
- Y Axis machines are limited to Ø520 mm (Ø20.47 in) of turning diameter
Best For
Frequently Asked Questions
01
The table gives a bar capacity of Ø117.5 mm (Ø4.62 in). Victor Taichung also states that the Vturn-45 is available with a large spindle bore of 135mm. Maximum spindle speed is 2,000 rpm.
02
It has a larger spindle. The Vturn-45/125 passes Ø117.5 mm (Ø4.62 in) at 2,000 rpm, and the Vturn-40/125 passes Ø91 mm (Ø3.58 in) at 2,500 rpm. Turning diameters, turret and weights are the same in the two tables.
03
A 15 in hydraulic chuck on an A2-11 spindle nose is standard, and the maker lists an 18 in chuck as an option. A Kitagawa chuck and hard jaws are on the option list as well.
04
12,700 kg (27,998.67 lb) for the 2 Axis machine, 13,000 kg (28,660.05 lb) for the C Axis machine and 13,300 kg (29,321.44 lb) for the Y Axis machine.
