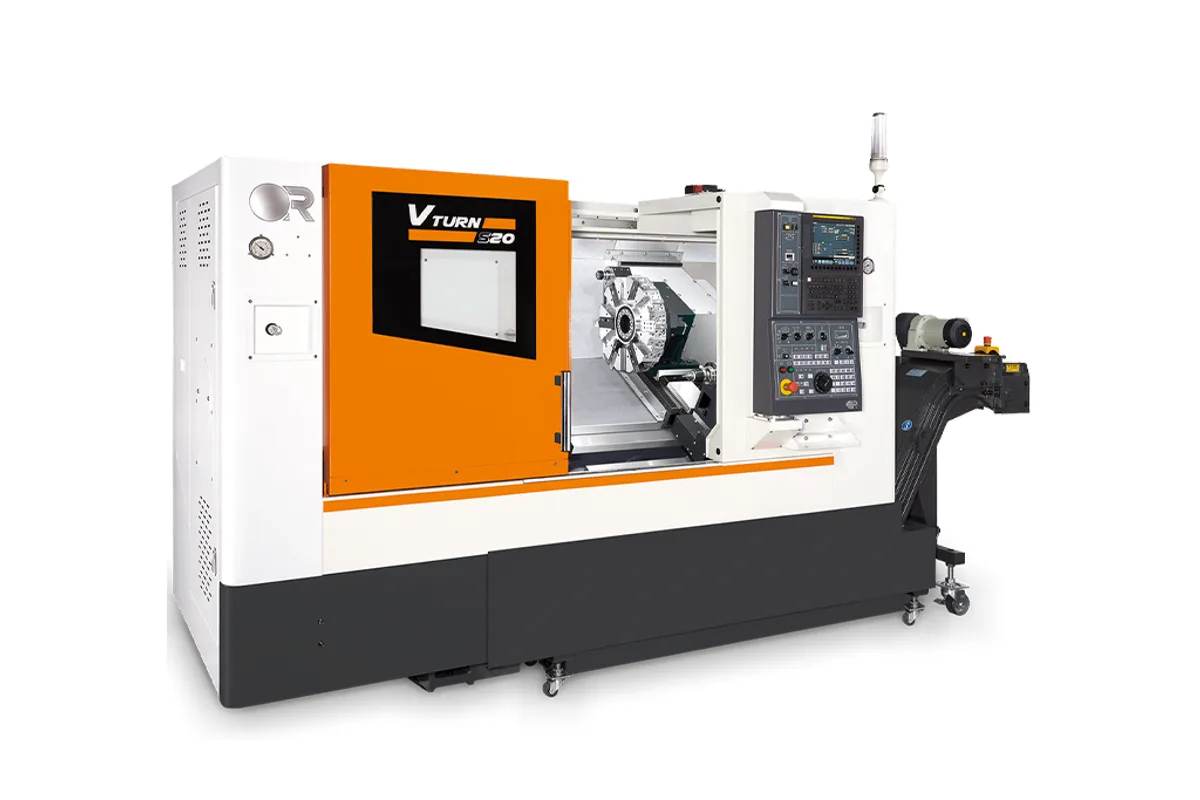

Victor Taichung Vturn-S20/60
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-S20/60 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-S20/60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Victor Taichung's Vturn-S20/60 is an 8 in chuck box-way lathe with 640 mm (25.19 in) of turning length. The spindle nose is A2-6, top speed is 4,200 rpm and bar capacity is Ø52 mm (Ø2.04 in). By the two tables it is the Vturn-S20/40 on a longer bed.
The longer bed changes what the tailstock is for. On this model the programmable tailstock and its M.T. #4 quill can hold a real shaft, and the ratio of length to chuck size is the classic one for general turning. Weight is 4,800 kg (10,582.17 lb) as a 2 Axis machine and 4,860 kg (10,714.45 lb) with the C axis.
As elsewhere in the series, the C axis narrows the diameter range. The 2 Axis column gives Ø320 mm (Ø12.59 in) maximum and Ø230 mm (Ø9.05 in) standard turning diameter. The C Axis column gives Ø260 mm (Ø10.23 in) and Ø250 mm (Ø9.84 in). A shop that turns flanges near the Ø320 mm (Ø12.59 in) limit and also wants live tools should look at a larger model.
The maker states a swing diameter of 600 mm for the casting, rapid feeds of 20/24 m/min (X/Z) and a shortened belt drive for the spindle. The turret has 12 stations for □25 mm shanks. Control is a Fanuc 0i-TF Plus with a 10.4 in screen.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | 2 Axis: Ø230 mm (Ø9.05 in); C Axis: Ø250 mm (Ø9.84 in) |
| Max Turning Diameter | 2 Axis: Ø320 mm (Ø12.59 in); C Axis: Ø260 mm (Ø10.23 in) |
| Max Turning Length | 640 mm (25.19 in) |
| Swing Over Carriage | Ø430 mm (Ø16.92 in) |
| Max Spindle Speed | 4,200 rpm |
| Spindle Nose | A2-6 (8") |
| Bar Capacity | Ø52 mm (Ø2.04 in) |
| Turret Tools | 12 |
| Tool Shank Size | □25 mm |
| Tailstock Quill Taper | M.T. #4 |
| Machine Weight | 2 Axis: 4,800 kg (10,582.17 lb); C Axis: 4,860 kg (10,714.45 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 640 mm (25.19 in) turning length with an M.T. #4 programmable tailstock
- 12-station turret with □25 mm shanks in both configurations
- One-piece 30˚ slant bed with a stated swing diameter of 600 mm
- C axis available with a BMT-55 turret
Limitations
- Maximum turning diameter drops to Ø260 mm (Ø10.23 in) in the C Axis column
- Ø52 mm (Ø2.04 in) bar capacity is the limit for bar work
- No sub-spindle or Y axis is offered in the S series table
- Rapid feed in X is 20 m/min
Best For
Frequently Asked Questions
01
Maximum turning length is 640 mm (25.19 in). The tailstock is programmable and its quill has an M.T. #4 taper, so shafts of that length can be supported on a centre.
02
Maximum turning diameter goes from Ø320 mm (Ø12.59 in) to Ø260 mm (Ø10.23 in), standard turning diameter from Ø230 mm (Ø9.05 in) to Ø250 mm (Ø9.84 in), and weight from 4,800 kg (10,582.17 lb) to 4,860 kg (10,714.45 lb).
03
A Fanuc 0i-TF Plus with a 10.4 in screen and Manual Guide i, according to the S series standard accessory list. The same list includes a hydraulic chuck with soft jaws and a chip conveyor.
04
Yes, it is on the S series option list, along with a bar feeder interface, a bar stopper, automatic and manual tool presetters and higher pressure coolant. The list marks the parts catcher as not available on the largest S models only.
