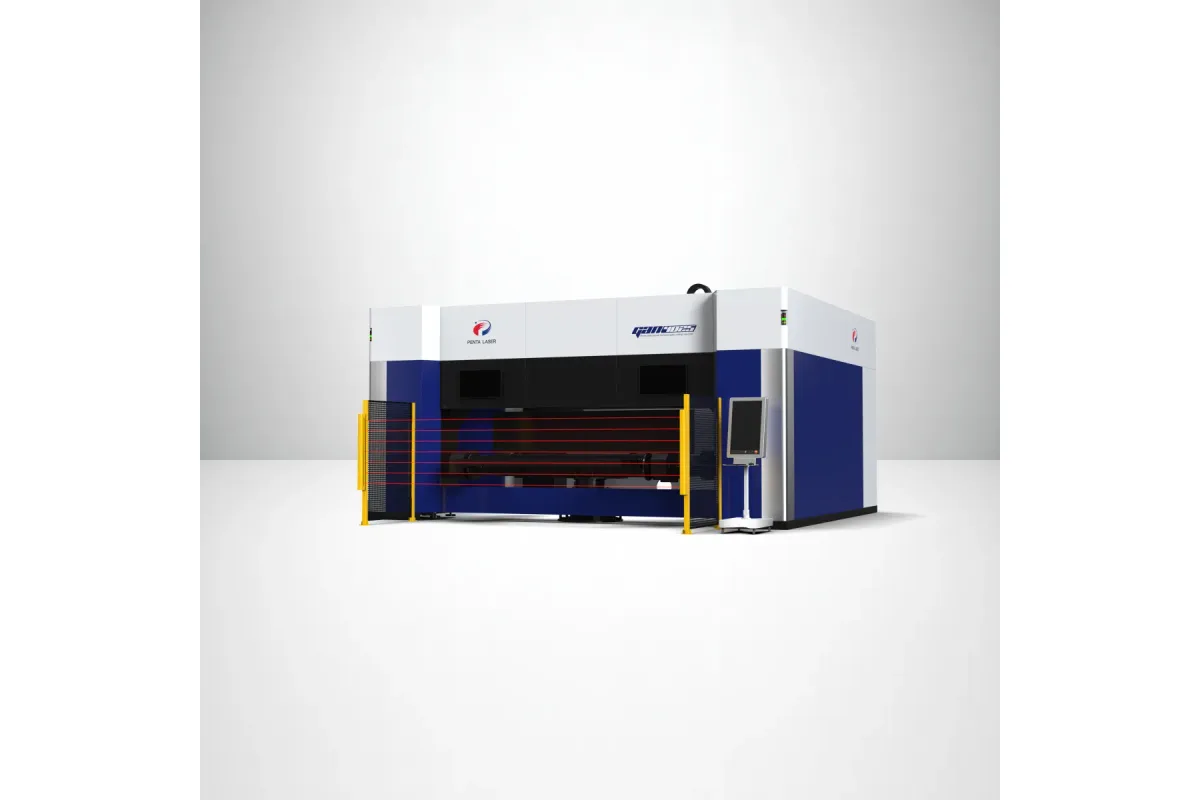

Penta Laser GAN 4525
Image: pentalaser.com, Penta Laser
Key Specifications
x axis travel
y axis travel
z axis travel
b axis range
c axis range
v axis travel
How much does the Penta Laser GAN 4525 cost?
Price estimate
We do not have a price for the Penta Laser GAN 4525 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Penta Laser GAN 4525 is a gantry-type 3D 5-axis laser cutting machine with 4,500 mm (177.2 in) of X travel, 2,500 mm (98.4 in) of Y travel and 680 mm (26.8 in) of Z travel. Penta Laser describes the GAN series as a machine for complex-shaped workpieces that also cuts flat sheet, and states that it supports up to 8 kW of laser power for both.
The head tilts ±135° on the B axis and rotates ±220° on the C axis. That C range is limited, so long contours around a part will include an unwinding move. Linear acceleration is 1 G, and the B and C axes reach 720°/s with 5,400°/s² of acceleration. A V axis of ±12 mm (±0.5 in) is listed without further explanation.
The maker calls the format large and mentions multi-table configurations, and names automotive manufacturing, stamping dies, home appliances and shipbuilding among the industries served. The published table has no laser power row, no accuracy figure and no machine weight, so those need to come from Penta Laser directly.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,500 mm (177.2 in) |
| Y Axis Travel | 2,500 mm (98.4 in) |
| Z Axis Travel | 680 mm (26.8 in) |
| B Axis Range | ±135° |
| C Axis Range | ±220° |
| V Axis Travel | ±12 mm (±0.5 in) |
| Max Acceleration Xyz | 1 G |
| Bc Axis Speed | 720°/s |
| Bc Axis Acceleration | 5,400°/s² |
Specifications sourced from pentalaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,500 × 2,500 mm (177.2 × 98.4 in) of X and Y travel with 680 mm (26.8 in) of Z
- Stated to support up to 8 kW of laser power for both flat and 3D cutting
- B and C axes reach 720°/s with 5,400°/s² acceleration
Limitations
- C axis travel is ±220°, not continuous, so the head must unwind on long wrap-around contours
- Only one size is listed, and the table gives no accuracy, weight or footprint figures
Best For
Frequently Asked Questions
01
X is 4,500 mm (177.2 in), Y is 2,500 mm (98.4 in) and Z is 680 mm (26.8 in). The B axis travels ±135°, the C axis ±220° and the V axis ±12 mm (±0.5 in).
02
Yes, according to the maker. Penta Laser states that the GAN series supports up to 8 kW of laser power for both flat and 3D cutting, and describes it as meeting cutting requirements for complex 3D geometries and flat sheet materials.
