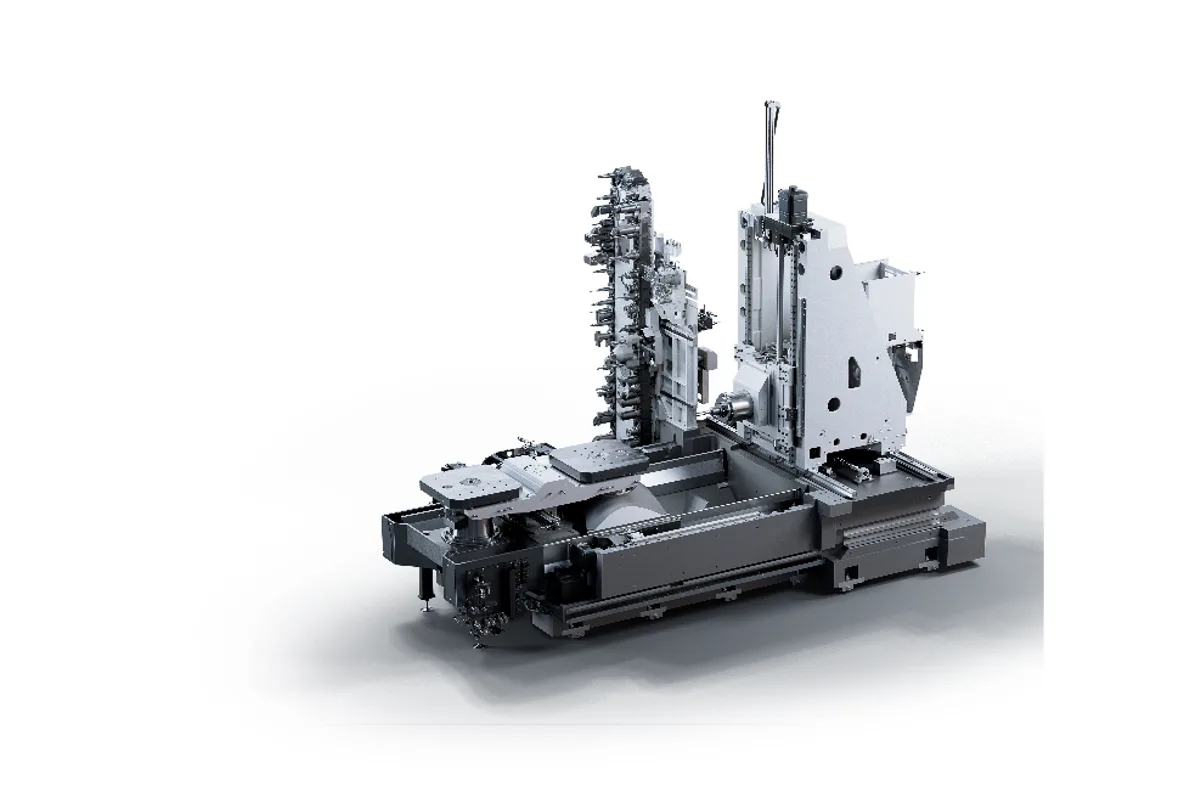

Starrag Heckert H80

$600,000 - $900,000 Updated 2026-03-19

Key Specifications

X Travel

1,100 mm (43.3 in)

Y Travel

1,000 mm (39.4 in)

Z Travel

1,100 mm (43.3 in)

Max Spindle

10,000 RPM

Spindle Taper

HSK-A100

Tool Capacity

60 (expandable to 240)

Overview

The Starrag Heckert H80 is an 800 mm pallet 4-axis horizontal machining center designed for heavy-duty production machining of large prismatic parts in automotive, energy, heavy equipment, and aerospace industries. It represents the upper end of Heckert's compact H-series before stepping into the large-format HEC range.

Axis travels of 1,100 x 1,000 x 1,100 mm (43.3 x 39.4 x 43.3 in) provide a substantial work envelope for large castings, housings, and structural components. The spindle delivers 10,000 RPM with 50 kW (67 hp) continuous power and 600 Nm of torque through an HSK-A100 taper, providing the rigidity and cutting authority needed for aggressive roughing in cast iron, steel, and titanium. A high-torque option pushes to 800 Nm for the most demanding ferrous applications.

Two 800 x 800 mm pallets come standard, each supporting workpieces up to 2,000 kg (4,409 lb). The B-axis rotary table indexes at 0.001-degree resolution. Tool magazine capacity starts at 60 tools and expands to 240 for complex multi-part production. Rapid traverse reaches 50 m/min across all linear axes. Roller guideways on all axes ensure rigidity during heavy interrupted cuts.

The H80 runs on Siemens SINUMERIK 840D sl and integrates with Starrag's IPS cell management for pallet pool configurations. The thermally symmetric column and bed design delivers positioning accuracy of +/-0.006 mm and repeatability of +/-0.003 mm. Built in Chemnitz, Germany, the H80 competes with the Mazak HCN-8800, Okuma MA-800HII, and DMG Mori NHX 8000. New machines price between $600,000 and $900,000 depending on configuration.

Full Specifications

Parameter	Value
X-Axis Travel	1,100 mm (43.3 in)
Y-Axis Travel	1,000 mm (39.4 in)
Z-Axis Travel	1,100 mm (43.3 in)
Max Spindle Speed	10,000 RPM
Spindle Taper	HSK-A100
Spindle Motor Power	50 kW (67 hp)
Spindle Torque	600 Nm (443 ft-lb)
Pallet Size	800 x 800 mm (31.5 x 31.5 in)
Number Of Pallets	2 (expandable via pallet pool)
Pallet Load Capacity	2,000 kg (4,409 lb)
B Axis	0.001 deg indexing, worm-gear driven
Tool Capacity	60 (expandable to 240)
Rapid Traverse Rate	50 m/min (1,969 ipm)
Positioning Accuracy	+/-0.006 mm
Repeatability	+/-0.003 mm
CNC Control	Siemens SINUMERIK 840D sl
Machine Weight	22,000 kg (48,502 lb)

Specifications sourced from starrag.com — verified 2026-03-28

Strengths & Limitations

Strengths

800 mm pallets with 2,000 kg load capacity handle large castings, structural housings, and heavy tombstone fixtures without compromise
50 kW continuous spindle with HSK-A100 taper and 600 Nm torque delivers the cutting authority needed for aggressive roughing in cast iron, steel, and titanium
1,100 x 1,000 x 1,100 mm travel provides one of the largest work envelopes in the compact Heckert H-series, reducing multi-setup requirements
Roller guideways on all axes ensure superior rigidity during heavy interrupted cuts, extending tool life in demanding production environments
Thermally symmetric Heckert column design maintains accuracy across extended production runs without frequent recalibration
Full IPS compatibility enables seamless integration into multi-machine pallet pool cells for lights-out manufacturing

Limitations

Starting at $600K, the H80 commands a premium over equivalent Japanese HMCs with stronger North American dealer and service networks
Siemens-only control platform may not suit shops standardized on Fanuc, adding training and programming transition costs
22,000 kg machine weight demands serious foundation engineering and rigging capability for installation
Service response times outside Europe can lag behind competitors with larger global dealer networks like Mazak and Okuma

Best For

Heavy equipment manufacturers machining large cast iron and steel housings, frames, and structural components requiring 800 mm pallet capacity Automotive powertrain facilities producing large engine blocks, transmission housings, and differential cases at high volume Energy sector shops cutting pump bodies, valve manifolds, and compressor housings in demanding ferrous materials Aerospace subcontractors machining structural titanium and steel components that require HSK-A100 rigidity and high torque Production facilities planning multi-machine FMS cells where Starrag IPS pallet pool management maximizes spindle utilization

Frequently Asked Questions

01 How does the Heckert H80 compare to the DMG Mori NHX 8000?

Both are 800 mm pallet HMCs targeting heavy production work. The H80 uses roller guideways for maximum rigidity in heavy cutting, while the NHX 8000 offers speedMASTER spindle options and a broader global dealer network. The Heckert runs Siemens 840D sl exclusively, while the NHX offers CELOS with either Fanuc or Siemens. For shops prioritizing European build quality and pallet pool FMS integration, the H80 excels. For broader service access and Fanuc compatibility, the NHX 8000 may be preferred.

02 What spindle options are available on the H80?

The standard spindle delivers 10,000 RPM with 600 Nm torque through HSK-A100 tooling. A high-torque option increases torque to approximately 800 Nm for heavy roughing in cast iron and steel. All spindle variants include thermal compensation systems with multiple temperature sensors for dimensional stability during long production runs.

03 What pallet load capacity does the H80 support?

The H80 supports up to 2,000 kg (4,409 lb) per pallet on its 800 x 800 mm pallets, handling large castings and heavy tombstone fixtures. This is competitive for the 800 mm pallet class. For even heavier workpieces, Starrag offers the H90 and H100 platforms with larger pallets and increased load capacities.

04 Can the H80 be retrofitted into an existing pallet pool system?

Yes, the H80 is designed for FMS integration from the ground up. Starrag's IPS software manages pallet routing, job scheduling, and tool management across mixed Heckert HMC cells. Retrofitting into an existing pallet pool requires compatible rail systems and IPS licensing but is a standard Starrag offering for capacity expansion.
