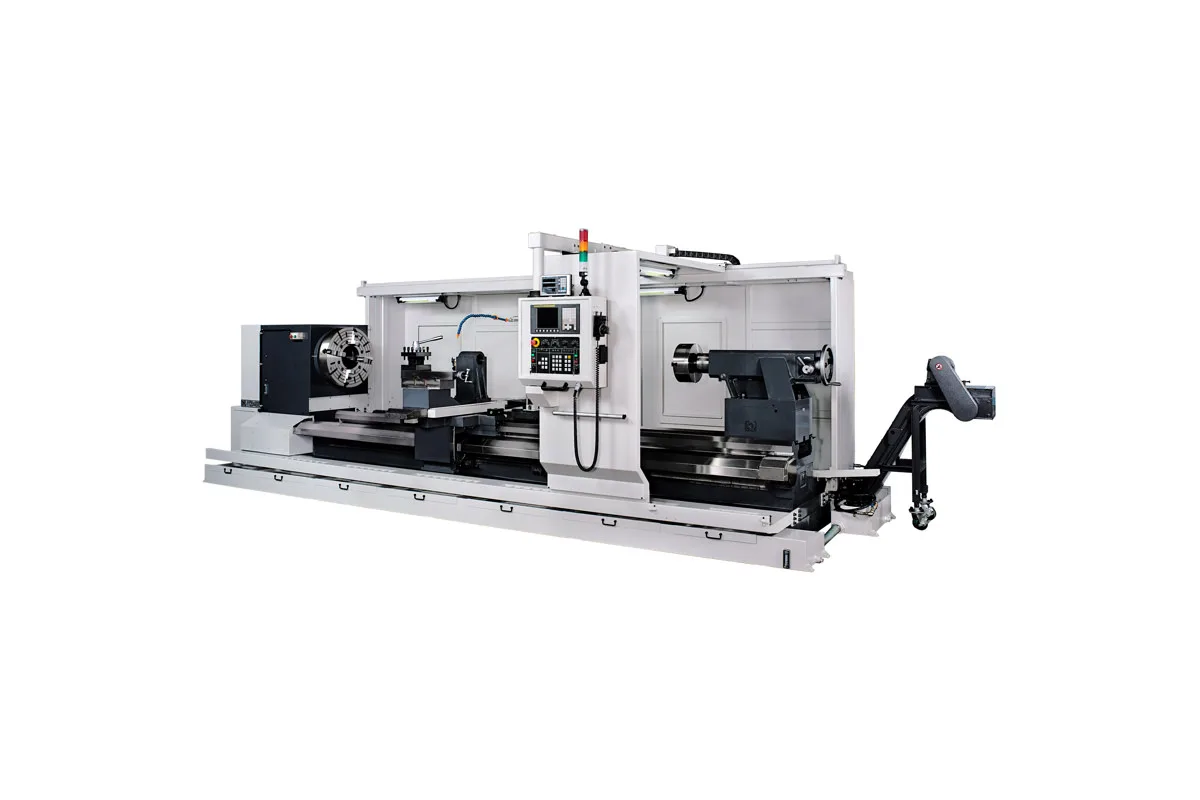

Sharp STC-60
Image: sharp-industries.com, Sharp
Key Specifications
Spindle Power
Max Turn Length
swing over bed
distance between centers
max roll cutting diameter
min roll cutting diameter
How much does the Sharp STC-60 cost?
Price estimate
We do not have a price for the Sharp STC-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two Sharp lathes swing 59.84 in (1520 mm) on a wide bed, and the STC-60 is the heavier and narrower-purposed of them. Where the STB-60 has a 31.89 in (810 mm) bed and 27.56 in (700 mm) of X travel, the STC-60 has a 49.21 in (1250 mm) bed and 15.75 in (400 mm) of X travel. One is a big bore lathe that can face; the other is a roll lathe.
Its roll cutting diameters run from 28.35 in (720 mm) to 51.18 in (1300 mm). Parts in that range are heavy, and the machine is built to match: 39,600 lb (18,000 kg) with the 78.74 in (2,000 mm) bed, rising to 52,900 lb (24,000 kg) with the 196.85 in (5,000 mm) bed. The STB-60 at the same 196.85 in (5,000 mm) center distance is listed at 43,800 lb (19,900 kg).
The carriage can use the whole bed. Z-axis travel and maximum cutting length both equal the distance between centers, because the tailstock rides on bedways of its own.
Power is unchanged from the smaller STC sizes, a 30 hp spindle motor with 40 hp or 50 hp optional and four speed steps changed automatically. For a 51.18 in roll that makes the optional motors worth pricing into the quotation request. Height is 96.9 in (2,460 mm).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 59.84 in (1520 mm) |
| Distance Between Centers | STC-6080: 78.74 in (2,000 mm); STC-60120: 118.11 in (3,000 mm); STC-60160: 157.48 in (4,000 mm); STC-60200: 196.85 in (5,000 mm) |
| Max Roll Cutting Diameter | 51.18 in (1300 mm) |
| Min Roll Cutting Diameter | 28.35 in (720 mm) |
| Max Turning Length | STC-6080: 78.74 in (2,000 mm); STC-60120: 118.11 in (3,000 mm); STC-60160: 157.48 in (4,000 mm); STC-60200: 196.85 in (5,000 mm) |
| Spindle Bore | 6 in (152 mm) 9 in (230 mm) 10 in (255 mm) 12 in (305 mm) 15 in (380 mm) |
| CNC Control | FANUC Oi-TF |
| Bed Way Type | Multiple guides |
| Bed Width | 49.21 in (1250 mm) |
| X Axis Travel | 15.75 in (400 mm) |
| Z Axis Travel | STC-6080: 78.74 in (2,000 mm); STC-60120: 118.11 in (3,000 mm); STC-60160: 157.48 in (4,000 mm); STC-60200: 196.85 in (5,000 mm) |
| X Axis Ballscrew Diameter | 1.57 in (40 mm) |
| Z Axis Ballscrew Diameter | 2.48 in (63 mm) |
| Spindle Motor Power | 30 hp (STD Fanuc Alpha 22) Opt: 40 hp or 50 hp |
| X Axis Motor | 5.3 hp (Fanuc AC servo) |
| Z Axis Motor | STC-6080: 5.3 hp (Fanuc AC servo); STC-60120: 5.3 hp (Fanuc AC servo); STC-60160: 9.3 hp (Fanuc AC servo); STC-60200: 9.3 hp (Fanuc AC servo) |
| Hydraulic Pump Motor | 2 hp (1.5 kW) |
| Coolant Pump Motor | 1.7 hp (1.27 kW) |
| Machine Weight | STC-6080: 39,600 lb (18,000 kg); STC-60120: 44,100 lb (20,000 kg); STC-60160: 48,500 lb (22,000 kg); STC-60200: 52,900 lb (24,000 kg) |
| Machine Length | STC-6080: 242.1 in (6,150 mm); STC-60120: 281.5 in (7,150 mm); STC-60160: 320.9 in (8,150 mm); STC-60200: 360.2 in (9,150 mm) |
| Machine Height | 96.9 in (2,460 mm) |
Specifications sourced from sharp-industries.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Roll cutting diameter up to 51.18 in (1300 mm)
- 49.21 in (1250 mm) bed, against 31.89 in (810 mm) on the STB-60
- Z-axis travel equal to the full 196.85 in (5,000 mm) on the longest bed
- Up to 52,900 lb (24,000 kg) of machine weight under the cut
- 40 hp or 50 hp spindle motors available as options
Limitations
- 15.75 in (400 mm) X travel, where the STB-60 has 27.56 in (700 mm)
- Minimum roll cutting diameter of 28.35 in (720 mm)
- Four bed lengths only, none over 196.85 in (5,000 mm) between centers
- Machine height of 96.9 in (2,460 mm)
Best For
Frequently Asked Questions
01
Both swing 59.84 in (1520 mm). The STC-60 has a 49.21 in (1250 mm) bed, 15.75 in (400 mm) of X travel and four lengths up to 196.85 in (5,000 mm). The STB-60 has a 31.89 in (810 mm) bed, 27.56 in (700 mm) of X travel and six lengths up to 236.22 in (6,000 mm).
02
Maximum roll cutting diameter is 51.18 in (1300 mm) and minimum is 28.35 in (720 mm). Maximum cutting length is 78.74 in (2,000 mm), 118.11 in (3,000 mm), 157.48 in (4,000 mm) or 196.85 in (5,000 mm) according to the bed chosen.
03
That depends on the material and depth of cut, and Sharp publishes no torque figures to judge it by. The table lists 30 hp as standard from a Fanuc Alpha 22 motor, with 40 hp or 50 hp as options, and a gearbox with four steps changed automatically. Ask for the torque at the lowest step.
04
The STC-6080 weighs 39,600 lb (18,000 kg). The STC-60120 weighs 44,100 lb (20,000 kg). The STC-60160 weighs 48,500 lb (22,000 kg). The STC-60200 weighs 52,900 lb (24,000 kg). Each is 96.9 in (2,460 mm) high.
More from Sharp
Other CNC Lathes / Turning Centers

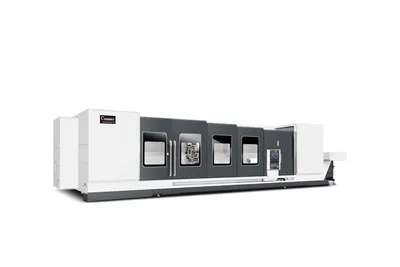

Goodway GS-8800
Dener TTC-8

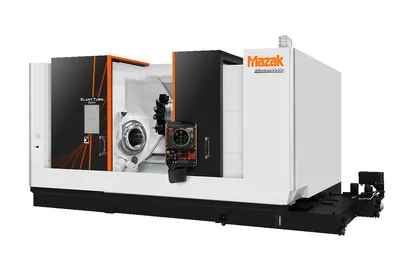

Mazak SLANT TURN 500

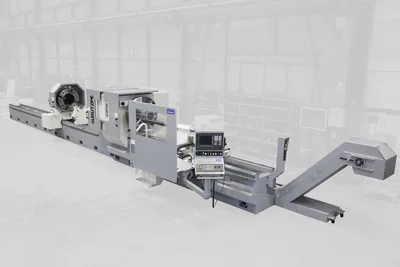

Gurutzpe GL 13
