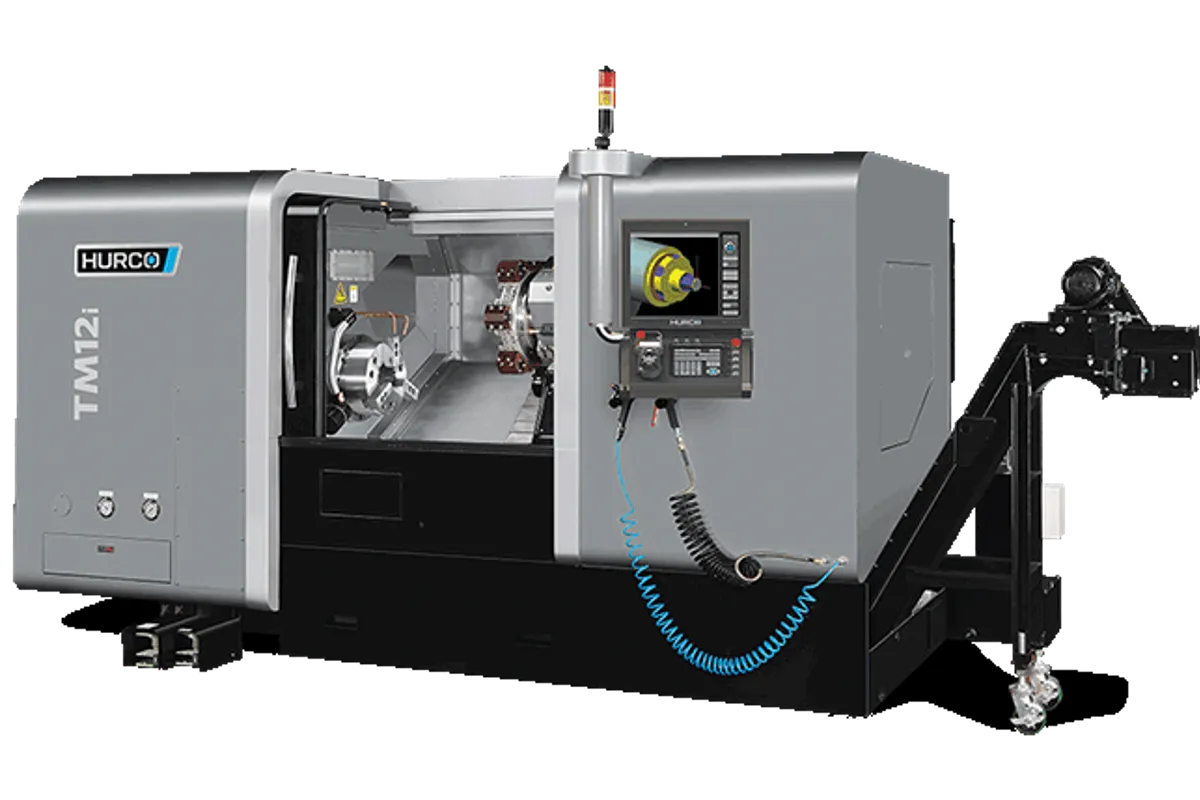

Hurco TM12i

$90,000 - $140,000 Updated 2026-03-16

Key Specifications

Max Spindle

3,500 RPM

Spindle Taper

A2-11

Tool Capacity

12 Stations

Spindle Power

53.64 hp (40 kW)

Max Turn Length

39.4 in (1,000 mm)

Accuracy

±0.005 mm (±0.0002 in)

Overview

The Hurco TM12i is a mid-size slant-bed CNC turning center built around a 12-inch chuck and an 813 mm (32 in) maximum turning length. It steps up from the TM8i in both capacity and capability, adding an optional live tooling turret that enables milling, drilling, tapping, and cross-drilling directly on the lathe without moving the part to a secondary machine. This makes the TM12i a genuine productivity multiplier for parts that require both turning and rotary milling features.

The spindle is a 22 kW (30 hp) AC servo unit with a 3,500 RPM maximum speed and an A2-8 spindle nose. Maximum turning diameter is 533 mm (21 in). The 12-station VDI turret (when live tooling is specified) accommodates both fixed and driven tool holders, with driven tools spinning up to 4,000 RPM. Index time is 0.5 seconds for adjacent VDI stations — considerably faster than the bolt-on turret on the TM8i. The bar capacity through the spindle reaches 76 mm (3 in), suitable for most production turning bar stock sizes.

WinMax Turn handles both fixed and live tooling programming conversationally. For live tool operations, the machinist enters the milling operation type (slot, pocket, hole, thread mill) along with angular position on the OD or face, and WinMax generates the C-axis and live tool path. The control synchronizes spindle indexing and turret positioning automatically. G-code programs are also accepted for shops with existing CAM-generated turning programs.

The TM12i is one of Hurco's most versatile single-spindle lathes and competes directly with the Haas ST-20 with live tooling, the Mazak Quick Turn 250MSY, and the Okuma LB3000 EX. Base price without live tooling runs approximately $90,000–$110,000; with live tooling the configuration typically reaches $115,000–$140,000.

Full Specifications

Parameter	Value
Max Turning Diameter	20.1 in (510 mm)
Max Turning Length	39.4 in (1,000 mm)
Chuck Size	12 in (305 mm) hydraulic
Bar Capacity	76 mm (3 in)
Max Spindle Speed	3,500 RPM
Spindle Motor Power	53.64 hp (40 kW)
Spindle Nose	A2-8
Spindle Bore	89 mm (3.5 in)
Turret Stations	12-station VDI 40 turret
Turret Index Time	0.5 sec (adjacent station)
Live Tool Speed Max	4,000 RPM (optional live tooling)
Live Tool Power	5.5 kW (7.5 hp)
X Axis Travel	270 mm (10.6 in)
Z Axis Travel	870 mm (34.3 in)
Rapid Traverse X	20 m/min (787 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Positioning Accuracy	±0.005 mm (±0.0002 in)
Repeatability	±0.003 mm (±0.00012 in)
Machine Weight	16,535 lb (6,686 kg)
CNC Control	Hurco WinMax Turn (15.4-in touch-screen, conversational + G-code, C-axis + live tool capable)
Coolant Capacity	225 L (60 gal)
Electrical	230/460 VAC 3-phase, 60 A
Travels Capacitydistance Between Centers	39.6 in (1,006 mm)
Swing Over Bed Diameter	26.77 in (680 mm)
Swing Over Cross Slide Diameter	20.1 in (510 mm)
Max Bar Capacity	4.0 in (102 mm)
X Z Axis Travel	12, 40 in (305, 1,016 mm)
Spindlemax Spindle Speed	2800 rpm
Max Torque High Gear	324.49 ft lbs @ 868 rpm (439.9 Nm @ 868 rpm)
Spindle Taper	A2-11
Chuck Diameter	12 in (315 mm)
Turrettool Type	Slotted Disc
Tool Capacity	12 Stations
Turret Index Time Adjacent	0.45 seconds
Turret Index Time Furthest	1.5 seconds
Feedratesrapid Traverse Xz Axis	1,181 in/min (30 m/min)
Sizemax Operating Floor Space	238.98 x 141.4 in (6,070 x 3,592 mm)
Machine Height	90.73 in (2,305 mm)
Parts Catcher Dimensions	9.8 x 6.3 x 4.8 in (250 x 160 x 123 mm)

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

Optional live tooling VDI turret enables OD and face milling, drilling, and tapping in a single setup — eliminating secondary VMC operations for many prismatic features
VDI 40 turret with 0.5-sec adjacent index time is significantly faster than bolt-on turrets, reducing cycle times in high-tool-count programs
12-inch chuck and 533 mm max turning diameter cover the broad majority of industrial turned-part sizes without needing a larger machine
WinMax Turn handles live tool C-axis programming conversationally, reducing the programming complexity typically associated with milling-on-lathe work
76 mm bar capacity through the spindle supports most production bar stock sizes for automated bar-feed turning

Limitations

3,500 RPM maximum spindle speed is lower than competing 12-inch lathes from Haas (ST-20 at 4,000 RPM) and Mazak, limiting high-speed finishing on small-diameter parts
Live tooling option adds significant cost ($25K–$50K) over the base machine — shops that rarely need milling on the lathe may not recover the investment
No Y-axis option on the TM12i; parts requiring off-center milling operations beyond simple C-axis positioning require a dedicated mill-turn platform

Best For

Job shops turning parts with OD/ID features plus simple milling, drilling, or threading operations that can be completed in one setup with live tooling Production shops running 12-inch and smaller workpieces in steel, stainless, aluminum, and brass with frequent batch changeovers Shops standardizing on WinMax control language across turning and milling departments for reduced operator cross-training requirements Contract manufacturers needing reliable bar-fed turning on stock up to 76 mm with the option to add milled features without a secondary operation

Frequently Asked Questions

01 Does the TM12i have a Y-axis?

No. The TM12i supports C-axis positioning and live tooling for on-center and radial milling, drilling, and threading, but does not offer a Y-axis. For true off-center milling (e.g., eccentric bores, off-axis flats, keyways not on centerline), a Y-axis mill-turn machine like the Hurco HTX series or a dedicated mill-turn from Mazak or DMG Mori is required.

02 What tool holders does the VDI 40 turret accept?

The VDI 40 (DIN 69880) turret accepts standard VDI 40 shank fixed holders for OD and ID turning, as well as powered VDI 40 driven holders for live tooling. Common driven tools include ER-collet live centers, slitting saw arbors, and face/angle milling adapters. Driven tools from most major tooling manufacturers (Capto, Kennametal, Sandvik) are available in VDI 40 form.

03 How does the TM12i compare to the Haas ST-20 with live tooling?

The Haas ST-20 with live tooling starts around $85,000–$95,000, somewhat below the Hurco TM12i at $115,000–$140,000 with live tooling. Both machines cover similar turning envelopes. The Hurco advantages are WinMax conversational control (faster setup), faster turret indexing, and stronger European dealer support. The Haas advantages are lower initial cost, an extremely strong used market, and faster spindle speed (4,000 vs 3,500 RPM).

04 Can a bar feeder be interfaced with the TM12i?

Yes. The TM12i has a spindle bore of 89 mm (3.5 in) and the control includes bar feeder interface capability. Most major bar feeder brands (LNS, Iemca, FMB, Hydromat) offer interface kits for the Hurco TM series. Bar feeder selection depends on bar stock diameter (up to 76 mm), material, and cycle time requirements.

05 What is the warranty and service support for the TM12i?

Hurco provides a standard 1-year parts and labor warranty on new machines. Extended warranty options are available through Hurco dealers. Service is provided by Hurco's North American service organization and dealer network. Hurco's Indianapolis parts warehouse maintains common spare parts inventory for next-day delivery in most US locations.
