Masterwood 4WIN
Image: masterwood.com, Masterwood
Key Specifications
Spindle Taper
Tool Capacity
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Masterwood 4WIN cost?
Price estimate
We do not have a price for the Masterwood 4WIN that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

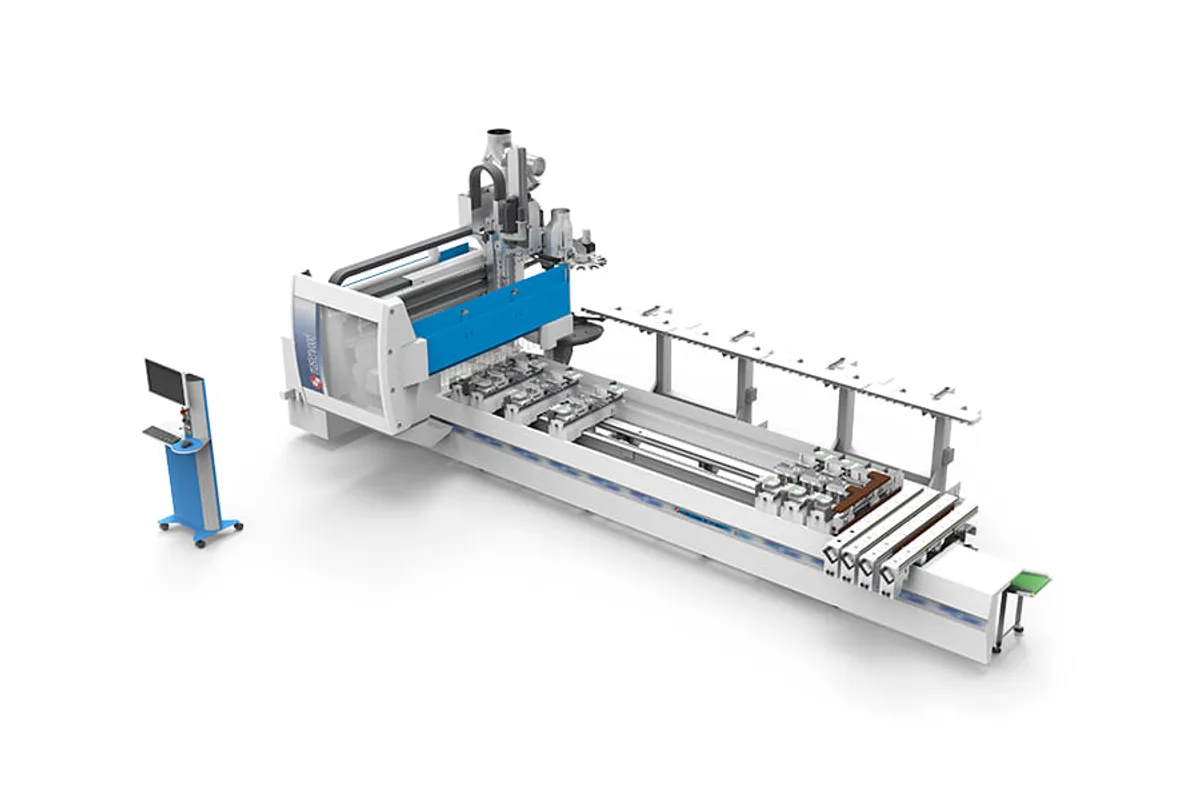

The Masterwood 4WIN is a CNC machining center for window and door components. Masterwood describes it as a 3-axis machine. Its axis strokes are 4,960 mm in X, 1,930 mm in Y and 650 mm in Z, and the electrospindle is rated at up to 19.2 kW on an HSK 63 interface.
Those strokes are not the part size. On the automatic table the largest workable piece is 4,380 x 140 x 140 mm: a long, slender section, which is what a sash or frame member is. The 1,930 mm of Y stroke should therefore not be read as panel capacity, and anyone looking for a machine to cut wide sheets is looking at the wrong model.
The table is listed for two ways of working. In full field a single piece between 220 mm and 4,380 mm long is machined. In alternating field the maximum length is given as 2,700 + 1,100 mm, with a workable width of 140 mm and a thickness from 0 mm up to 105 mm. Alternating-field working normally means one zone can be reloaded while the head is busy in the other, which is where the output on short components comes from.
Up to 50 tools can be carried on the machine and the maximum tool diameter is 250 mm, enough for the large profile cutters that window joints call for. Masterwood adds a patented working table for clamping and a "High torque" operator group designed for this work, and says the 4WIN covers all window and sash operations including ironmongery housings. The page gives no spindle speed, axis speed, control name or weight; ask for those before comparing it with anything else.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,960 mm (195.3 in) |
| Y Axis Travel | 1,930 mm (76.0 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| Max Workable Panel X Y Z Automatic Table | 4,380 x 140 x 140 mm (172.4 x 5.5 x 5.5 in) |
| Max Workable Length Full Field | 4,380 mm (172.4 in) |
| Min Workable Length Full Field | 220 mm (8.7 in) |
| Max Workable Length Alternating Field | 2,700 + 1,100 mm (106.3 + 43.3 in) |
| Max Workable Thickness Alternating Field | 105 mm (4.1 in) |
| Min Workable Thickness Alternating Field | 0 mm |
| Max Workable Width Alternating Field | 140 mm (5.5 in) |
| Spindle Motor Power | 19.2 kW (25.7 hp) max |
| Spindle Taper | HSK 63 |
| Tool Capacity | 50 |
| Max Tool Diameter (full magazine) | 250 mm (9.8 in) |
Specifications sourced from masterwood.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Axis strokes of 4,960 mm in X, 1,930 mm in Y and 650 mm in Z
- Electrospindle of up to 19.2 kW (25.7 hp) on an HSK 63 interface
- Up to 50 tools on the machine, with tool diameters up to 250 mm
- Full-field pieces up to 4,380 mm long, or alternating-field working at 2,700 + 1,100 mm
- Patented working table for secure clamping of the workpiece
Limitations
- Workable section on the automatic table is 140 x 140 mm: a profile machine, not a panel router
- Alternating-field thickness is limited to 105 mm
- Shortest full-field piece is 220 mm
- Masterwood's page states no spindle speed, axis speed, control or machine weight
Best For
Frequently Asked Questions
01
Windows and doors. Masterwood calls it the answer for those who want to produce designer windows quickly, lists designer windows and doors as the work it is particularly suitable for, and says it covers all window and sash operations including ironmongery housings.
02
On the automatic table the maximum workable piece is 4,380 x 140 x 140 mm. In full field the length range is 220 mm to 4,380 mm. In alternating field the maximum length is 2,700 + 1,100 mm, the width 140 mm and the thickness up to 105 mm.
03
An electrospindle with a maximum power of 19.2 kW (25.7 hp) and an HSK 63 interface. The machine carries up to 50 tools and accepts tool diameters up to 250 mm. Masterwood also names a specially designed "High torque" operator group. No spindle speed is published on the page.
04
The Y axis stroke is 1,930 mm, but the workable width is 140 mm. The stroke describes how far the head travels, not the size of piece the patented clamping table holds. The 4WIN machines long narrow sections, so judge it by the 4,380 x 140 x 140 mm workable piece.

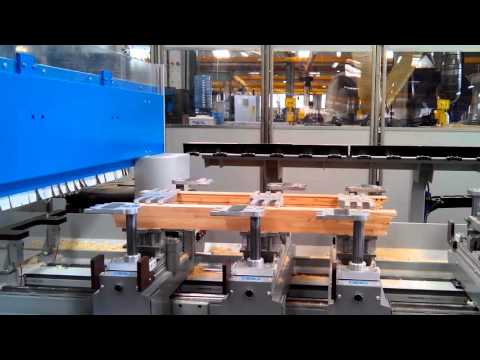

Videos
