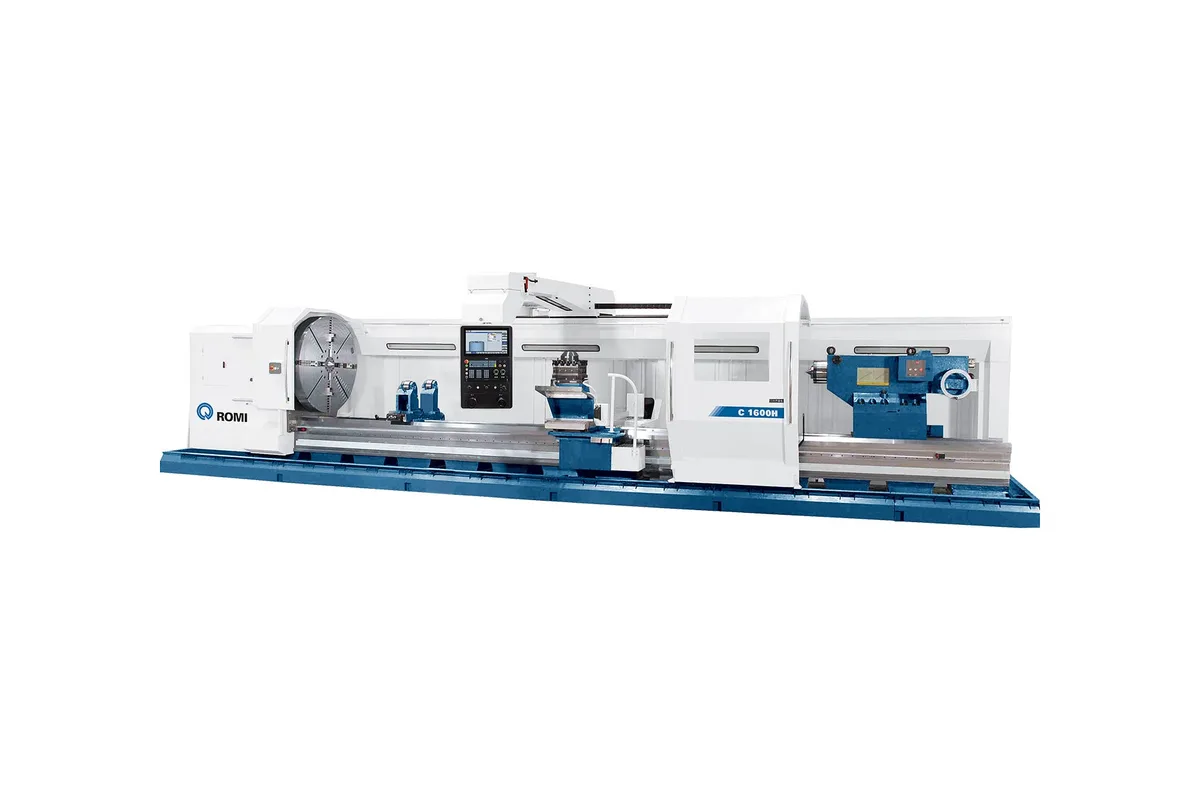

ROMI C 1600H
Image: romi.com, Romi
Key Specifications
Max Spindle
Spindle Power
centers height
distance between centers
swing over bed
swing over cross slide
How much does the ROMI C 1600H cost?
Price estimate
We do not have a price for the ROMI C 1600H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A shaft 1,200 mm (47 in) in diameter can pass over the cross slide of the ROMI C 1600H. That clearance, together with 1,600 mm (63 in) of swing over the bed, is what this heavy-duty CNC lathe adds to the 800 mm (31 in) bed and 114 hp / 84 kW drive it shares with its lower-centred sibling.
Romi names one tooling option for this model alone: a 12-station horizontal electrical turret with a VDI-60 disk for driven tools, rated 10 hp (7.5 kW) at up to 2,500 rpm. Combined with the optional C axis it lets bolt holes, keyways and flats be machined on a large flange or roll journal while the part is still between centers. Tool holders and reduction sleeves are not part of the turret.
Turning figures are those of the class. The A2-20” spindle has a 305 mm (12 in) thru-hole and a two-range geared drive, 1 to 125 rpm low and up to 500 rpm high, with 17,726 Nm of maximum torque allowed. Up to 22,000 kg (48,500 lbs) may be carried between centers. Cross travel is 820 mm (32 in).
Seven bed lengths run from 3.5 m to 12.5 m between centers. The two shortest move the saddle by ball screw at 5 m/min (197 in/min); the rest use a double pinion on racks at 10 m/min (394 in/min). The servo driven tailstock has a 290 mm (11.4 in) quill with 300 mm (11.8 in) of travel. In the 3.5 m version the machine weighs about 29,200 kg (64,400 lbs) and occupies 8.78 x 4.5 m (346 x 177 in).
Full Specifications
| Parameter | Value |
|---|---|
| Centers Height | 820 mm (32 in) |
| Distance Between Centers | 3.5 / 5 / 6.5 / 8 / 9.5 / 11 / 12.5 m (138 / 197 / 256 / 315 / 374 / 433 / 492 in) |
| Swing Over Bed | 1,600 mm (63 in) |
| Swing Over Cross Slide | 1,200 mm (47 in) |
| X Axis Travel | 820 mm (32 in) |
| Z Axis Travel | 3,605 / 5,105 / 6,605 / 8,105 / 9,605 / 11,105 / 12,605 mm (142 / 201 / 260 / 319 / 378 / 437 / 496 in) |
| Max Weight Between Centers | 22,000 kg (48,500 lbs) at 50 rpm with ASA A2-20”; 15,000 kg (33,100 lbs) with ASA A2-15” |
| Bed Width | 800 mm (31 in) |
| Bed Height | 720 mm (28 in) |
| Spindle Nose | ASA A2-20” |
| Spindle Bore | 305 mm (12 in) |
| Max Spindle Speed | 1 to 500 rpm |
| Spindle Speed Range 1 | 1 to 125 rpm |
| Spindle Torque | 17,726 Nm (13,075 lb-ft) |
| Front Bearing Inner Diameter | 431.8 mm (17 in) |
| Rapid Traverse Z | 5 m/min (197 in/min) with 3.5 to 5 m between centers; 10 m/min (394 in/min) with 6.5 to 12.5 m |
| Rapid Traverse X | 8 m/min (315 in/min) |
| Tailstock Body Positioning | Servo driven |
| Tailstock Quill Drive | Manual (standard); hydraulic (optional) |
| Tailstock Quill Travel | 300 mm (11.8 in) |
| Tailstock Quill Diameter | 290 mm (11.4 in) |
| Tailstock Live Center | 80 x 60° (built-in) |
| Spindle Motor Power | 114 hp / 84 kW (S2 - 30 min. rating); 82 hp / 60 kW continuous |
| Power Requirement | 95 kVA |
| Floor Space | 8.78 x 4.5 m (346 x 177 in) with 3.5 m between centers |
| Machine Weight | 29,200 kg (64,400 lbs) approx. with 3.5 m between centers |
| CNC Control | Siemens Sinumerik 840D |
Specifications sourced from romi.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Swing of 1,200 mm (47 in) over the cross slide and 1,600 mm (63 in) over the bed
- Optional 12-station VDI-60 turret for driven tools, 10 hp (7.5 kW), 2,500 rpm (max.)
- Carries 22,000 kg (48,500 lbs) between centers with the A2-20” spindle
- Bed lengths up to 12.5 m with rack drive and linear scale on the long versions
- Servo driven tailstock with a built-in 80 x 60° live center
Limitations
- Load limit and torque are the same as on the C 1300H despite the larger swing
- Spindle thru-hole of 305 mm (12 in) restricts pipe work
- Cross travel of 820 mm (32 in) covers about half the swing over the bed
- Ball screw beds of 3.5 to 5 m rapid at only 5 m/min (197 in/min)
Best For
Frequently Asked Questions
01
Swing over the bed is 1,600 mm (63 in) and swing over the cross slide 1,200 mm (47 in), with a centers height of 820 mm (32 in). Cross travel on the X axis is 820 mm (32 in).
02
The optional equipment list names a 12-station horizontal electrical turret, VDI-60 for driven tools, for the C 1600H. Romi describes the 12 station tool disk as 10 hp (7.5 kW) with 2,500 rpm (max.). Tool holders and reduction sleeves are not included.
03
The main motor is rated 114 hp / 84 kW on the S2 - 30 min. rating and 82 hp / 60 kW continuous. The geared headstock allows a maximum torque of 17,726 Nm, with range I at 1 to 125 rpm and a top speed of 500 rpm.
04
About 29,200 kg (64,400 lbs) with 3.5 m between centers, on a floor space of 8.78 x 4.5 m (346 x 177 in). The catalogue adds 2,500 kg (5,500 lbs) for each further 1,500 mm (59”) bed segment.
