Pinnacle LH500B

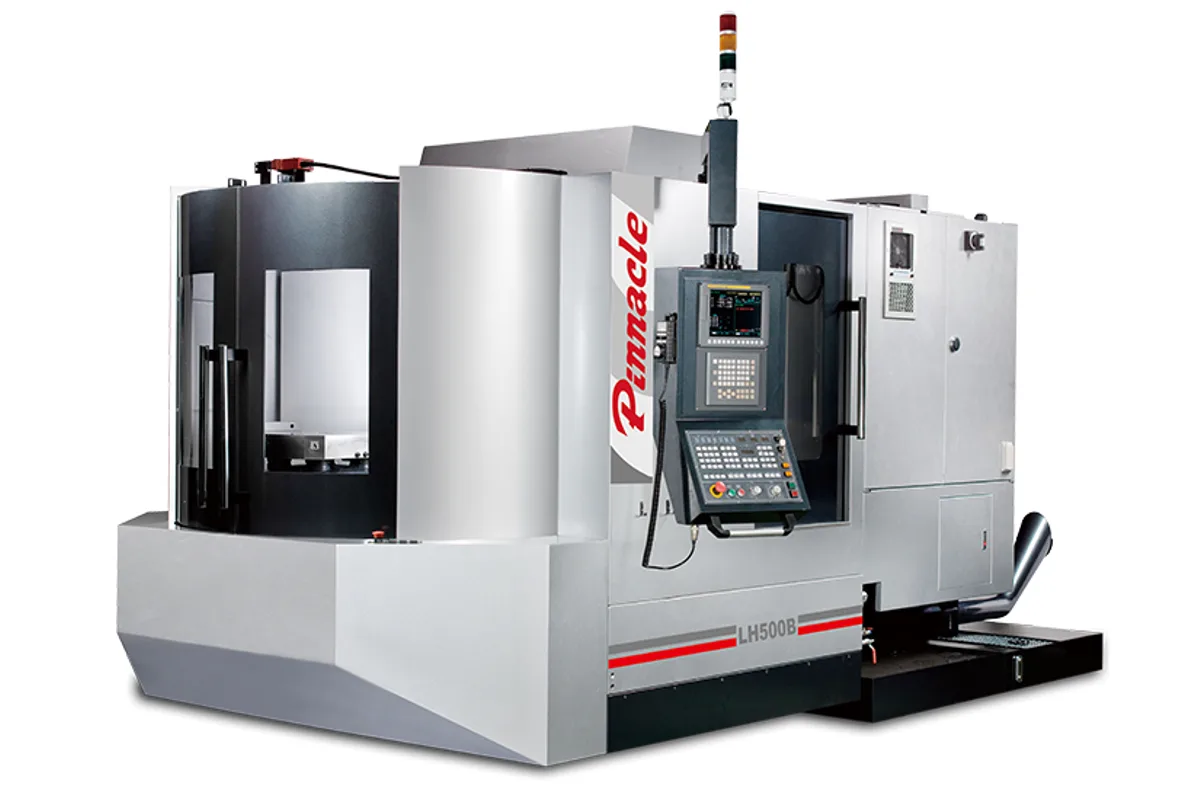

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Pinnacle LH500B cost?
Price estimate
We do not have a price for the Pinnacle LH500B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle LH500B is the twin-pallet version of Pinnacle's 500 mm horizontal machining center. The table row reads 500 x 500 mm (19.7 x 19.7 in) x2, the pallet changer is a swing type, and Pinnacle states that a pallet change is completed in only 8 seconds.
Two pallets change how the machine is used. One part is cut while the other is unloaded and reloaded outside the work area, so the spindle keeps running through the shift. Pinnacle says the pallets locate on oversized cones for positioning accuracy.
The B-axis table differs from the LH500A as well. Indexing is listed as 0.001° (1°), the fine increment being the standard on this model, and the table is locked by a hydraulic-expansion circular mechanism that clamps around the full circumference. Table speed is 16.6 rpm.
Cutting hardware is shared between the two LH models: 650 mm (25.6 in) of X, 560 mm (22.0 in) of Y and Z, an ISO40 belt spindle at 8,000 rpm with 11/15 kW (14.8/20.1 hp), a 40-tool chain magazine and 30/24/30 m/min rapids. Each pallet carries 400 kg (882 lb). The changer adds length: floor space is 3,055 x 5,445 mm (120.3 x 214.4 in), and the machine weighs 6,700 kg (14,771 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 500 x 500 mm (19.7 x 19.7 in) x2 |
| X Axis Travel | 650 mm (25.6 in) |
| Y Axis Travel | 560 mm (22.0 in) |
| Z Axis Travel | 560 mm (22.0 in) |
| Max Table Load | 400 kg (882 lb) |
| Max Workpiece Size | Ø630 x 610 mm (Ø24.8 x 24.0 in) |
| Distance Spindle Center to Table | 50 mm (2.0 in) |
| Distance Spindle Nose to Table Center | 100 mm (3.9 in) |
| Table Index | 0.001° (1°) |
| Pallet Changer | SWING |
| Spindle Taper | ISO40 |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Speed Belt Drive | 8,000 rpm |
| Spindle Motor Power | 11/15 kW (14.8/20.1 hp) (con/30 min) |
| Rapid Traverse Xyz | 30/24/30 m/min |
| Cutting Feed Rate | 10 m/min |
| B Axis Speed | 16.6 rpm |
| Tool Magazine Type | CHAIN |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | Ø76 mm (Ø3.0 in) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 300 L |
| Machine Weight | 6,700 kg (14,771 lb) |
| Machine Height | 2,425 mm (95.5 in) |
| Floor Space | 3,055 x 5,445 mm (120.3 x 214.4 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Swing-type automatic pallet changer with two 500 x 500 mm pallets
- Pallet change completed in 8 seconds according to Pinnacle
- 0.001° table indexing with full-circumference hydraulic locking
- 40-tool chain magazine and 30/24/30 m/min rapids
Limitations
- Floor space grows to 3,055 x 5,445 mm (120.3 x 214.4 in)
- Belt spindle limited to 8,000 rpm
- 400 kg (882 lb) per pallet, the same as the single-table LH500A
Best For
Frequently Asked Questions
01
Pinnacle states that the pallet change is accomplished in only 8 seconds. The changer is a swing type, and the pallets seat on oversized cones for positioning accuracy.
02
The LH500B has two pallets and an automatic pallet changer, 0.001° table indexing and a larger footprint. The LH500A has one table with 1° indexing and weighs 6,500 kg (14,330 lb) against 6,700 kg (14,771 lb).
03
The maximum workpiece size is Ø630 x 610 mm (Ø24.8 x 24.0 in) and the maximum load 400 kg (882 lb). Travels are 650 mm (25.6 in) in X and 560 mm (22.0 in) in Y and Z.
04
The standard accessories list includes the chain type 40-tool ATC, rear screw-type chip conveyors, rigid tapping, a spindle oil cooler, a Z axis hydraulic balance system and hollow ball screws with cooling. Coolant through spindle is optional.
