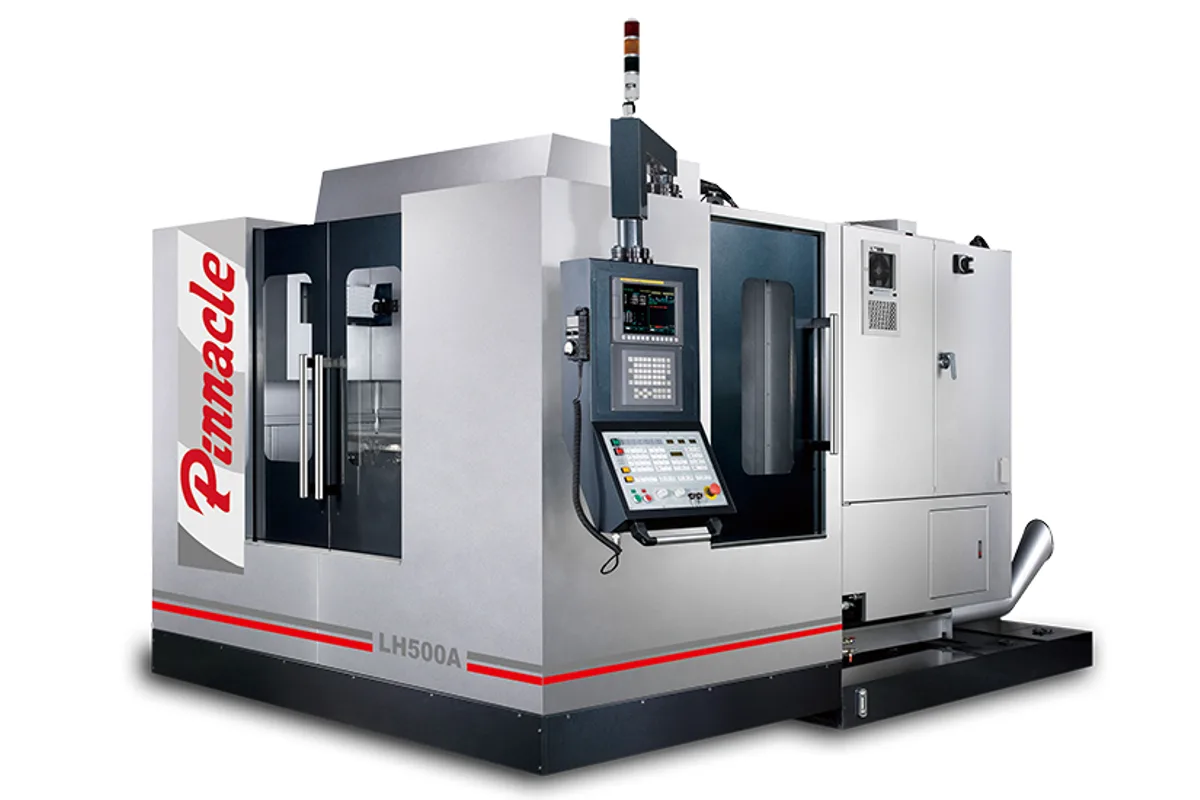

Pinnacle LH500A
Image: pinnacle-mc.com, Pinnacle
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Pinnacle LH500A cost?
Price estimate
We do not have a price for the Pinnacle LH500A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle LH500A is a single-table horizontal machining center with a 500 x 500 mm (19.7 x 19.7 in) indexing table and travels of 650 mm (25.6 in), 560 mm (22.0 in) and 560 mm (22.0 in). It is the version without a pallet changer; the LH500B adds one.
A horizontal spindle and an indexing table let four sides of a part be machined in one clamping, with chips falling clear of the cut. The table index is given as 1° (0.001°), so the base table positions in one-degree steps and a 0.001° table is the alternative. Pinnacle describes a three-piece teeth plate with hydraulic locking for the indexing table, which is what gives it stiffness under heavy cuts.
The ISO40 spindle is belt driven at 8,000 rpm from an 11/15 kW (14.8/20.1 hp) motor. That is a torque-oriented choice, suited to cast iron and steel housings more than to high-speed aluminium work. Tools come from a 40-pocket chain magazine, listed as standard, and can be up to Ø76 mm (Ø3.0 in).
Workpieces may be as large as Ø630 x 610 mm (Ø24.8 x 24.0 in) and 400 kg (882 lb). Rapids are 30/24/30 m/min on roller linear ways. The machine weighs 6,500 kg (14,330 lb), needs 40 kVA and occupies 3,055 x 4,560 mm (120.3 x 179.5 in). Rear screw-type chip conveyors and a spindle oil cooler are in the standard accessories list.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 500 x 500 mm (19.7 x 19.7 in) |
| X Axis Travel | 650 mm (25.6 in) |
| Y Axis Travel | 560 mm (22.0 in) |
| Z Axis Travel | 560 mm (22.0 in) |
| Max Table Load | 400 kg (882 lb) |
| Max Workpiece Size | Ø630 x 610 mm (Ø24.8 x 24.0 in) |
| Distance Spindle Center to Table | 50 mm (2.0 in) |
| Distance Spindle Nose to Table Center | 100 mm (3.9 in) |
| Table Index | 1° (0.001°) |
| Spindle Taper | ISO40 |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Speed Belt Drive | 8,000 rpm |
| Spindle Motor Power | 11/15 kW (14.8/20.1 hp) (con/30 min) |
| Rapid Traverse Xyz | 30/24/30 m/min |
| Cutting Feed Rate | 10 m/min |
| B Axis Speed | 16.6 rpm |
| Tool Magazine Type | CHAIN |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | Ø76 mm (Ø3.0 in) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 300 L |
| Machine Weight | 6,500 kg (14,330 lb) |
| Machine Height | 2,425 mm (95.5 in) |
| Floor Space | 3,055 x 4,560 mm (120.3 x 179.5 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 40-tool chain magazine listed as standard
- Indexing table with a three-piece teeth plate and hydraulic locking
- 11/15 kW (14.8/20.1 hp) ISO40 spindle
- Workpieces up to Ø630 x 610 mm (Ø24.8 x 24.0 in) on a 500 x 500 mm (19.7 x 19.7 in) table
Limitations
- Single table, so the spindle waits while parts are loaded
- Spindle speed is 8,000 rpm with belt drive and no faster option is listed
- Table load is 400 kg (882 lb)
Best For
Frequently Asked Questions
01
No. The pallet changer row of its table is blank and the table size is a single 500 x 500 mm (19.7 x 19.7 in). The LH500B is the twin-pallet version, listed as 500 x 500 mm (19.7 x 19.7 in) x2 with a swing-type changer.
02
The table index is listed as 1° (0.001°). Pinnacle's accessories list reads rotary table index 1° for the LH500A and 0.001° for the LH500B, so one-degree indexing is the standard here.
03
An ISO40 spindle with a Ø70 mm (Ø2.8 in) bearing bore, belt driven at 8,000 rpm by an 11/15 kW (14.8/20.1 hp) motor. Coolant through spindle with a filter tank is described as optional.
04
Floor space is 3,055 x 4,560 mm (120.3 x 179.5 in) and height 2,425 mm (95.5 in). Machine weight is 6,500 kg (14,330 lb), the supply requirement 40 kVA and the coolant tank 300 L.
