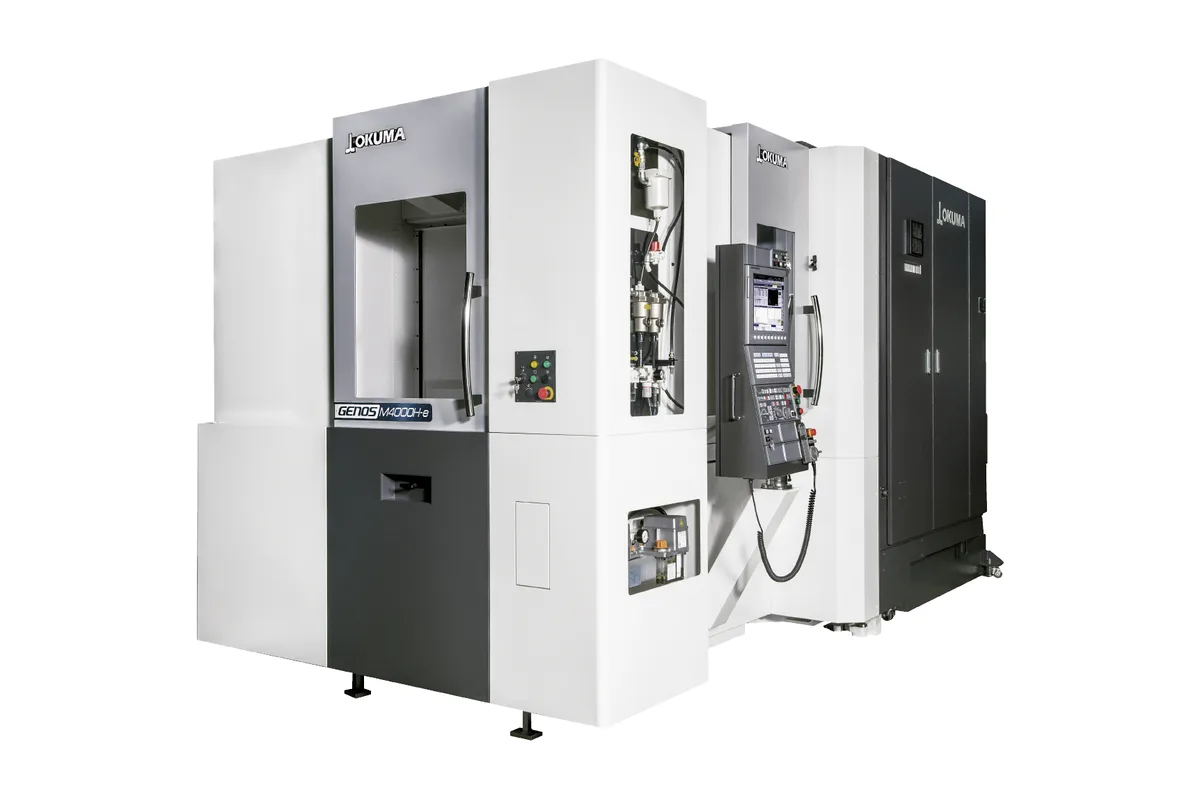

Okuma GENOS M4000H-e
Image: okuma.com, Okuma
Key Specifications
Tool Capacity
Rapid Traverse
Spindle Power
max machining volume
rotary pallet size
How much does the Okuma GENOS M4000H-e cost?
Price estimate
We do not have a price for the Okuma GENOS M4000H-e that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Okuma GENOS M4000H-e is a horizontal machining center with a 400 x 400 mm (15.75 x 15.75 in) rotary pallet and a machining volume of 560 x 560 x 625 mm (22.05 x 22.05 x 24.61 in). Okuma lists a 26 / 18.5 kW (34 / 25 hp) spindle on the high winding, 60 m/min (2,362 ipm) rapids and a 64-tool magazine.
The envelope is generous for the pallet. With 560 mm in both X and Y over a 400 mm pallet, a four-sided tombstone can carry parts that overhang the pallet edge and still be reached, and 625 mm of Z leaves room for long tools on the faces nearest the spindle. Okuma's table is short, though: it gives no spindle speed, taper, torque or pallet load, and it lists one magazine size with no alternatives.
The closest sibling is the MA-4000H, which has the same 400 mm pallet size and the same 60 m/min (2,362 ipm) rapid rate. The MA-4000H lists 38/18.5 kW (51/25 hp), so the lower figure of the pair is identical and the upper one is higher. The MA-4000H also has more travel in two axes, 650 mm (25.6 in) in Y and 685 mm (27.0 in) in Z, and its magazine starts at 48 tools with bracketed options up to 340. Work that needs more than 64 tools or the higher upper power rating points to that model. Work that fits this envelope and tool count is covered by the GENOS M4000H-e.
Full Specifications
| Parameter | Value |
|---|---|
| Max Machining Volume | 560 x 560 x 625 mm (22.05 x 22.05 x 24.61 in) |
| Rotary Pallet Size | 400 x 400 mm (15.75 x 15.75 in) |
| Spindle Motor Power | 26 / 18.5 kW (34 / 25 hp), high winding |
| Rapid Traverse Rate | 60 m/min (2,362 ipm) |
| Tool Capacity | 64 tools |
Specifications sourced from okuma.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Machining volume of 560 x 560 x 625 mm (22.05 x 22.05 x 24.61 in) over a 400 x 400 mm (15.75 x 15.75 in) pallet
- 60 m/min (2,362 ipm) rapid traverse, the same rate as the MA-4000H
- 64-tool magazine, where the MA-4000H starts at 48 tools
Limitations
- Spindle power is 26 / 18.5 kW (34 / 25 hp); the MA-4000H lists 38/18.5 kW (51/25 hp)
- Only one magazine size, 64 tools, is listed; the MA-4000H is offered with up to 340
- Okuma's table gives no spindle speed, taper or pallet load figure for this model
Best For
Frequently Asked Questions
01
The machining volume is 560 x 560 x 625 mm (22.05 x 22.05 x 24.61 in) and the rotary pallet is 400 x 400 mm (15.75 x 15.75 in). Okuma's table does not list the pallet load, so confirm the weight limit for the tombstone, fixtures and parts together.
02
Both have a 400 mm pallet and 60 m/min (2,362 ipm) rapids. The GENOS M4000H-e lists 26 / 18.5 kW (34 / 25 hp) and a 64-tool magazine. The MA-4000H lists 38/18.5 kW (51/25 hp), 650 mm (25.6 in) of Y, 685 mm (27.0 in) of Z and a 48-tool magazine with larger options.
03
64 tools. Okuma's table lists that single magazine size for this model, so a job that needs more tools in the machine at once has to be split, or run on a model with a larger magazine option such as the MA-4000H.
