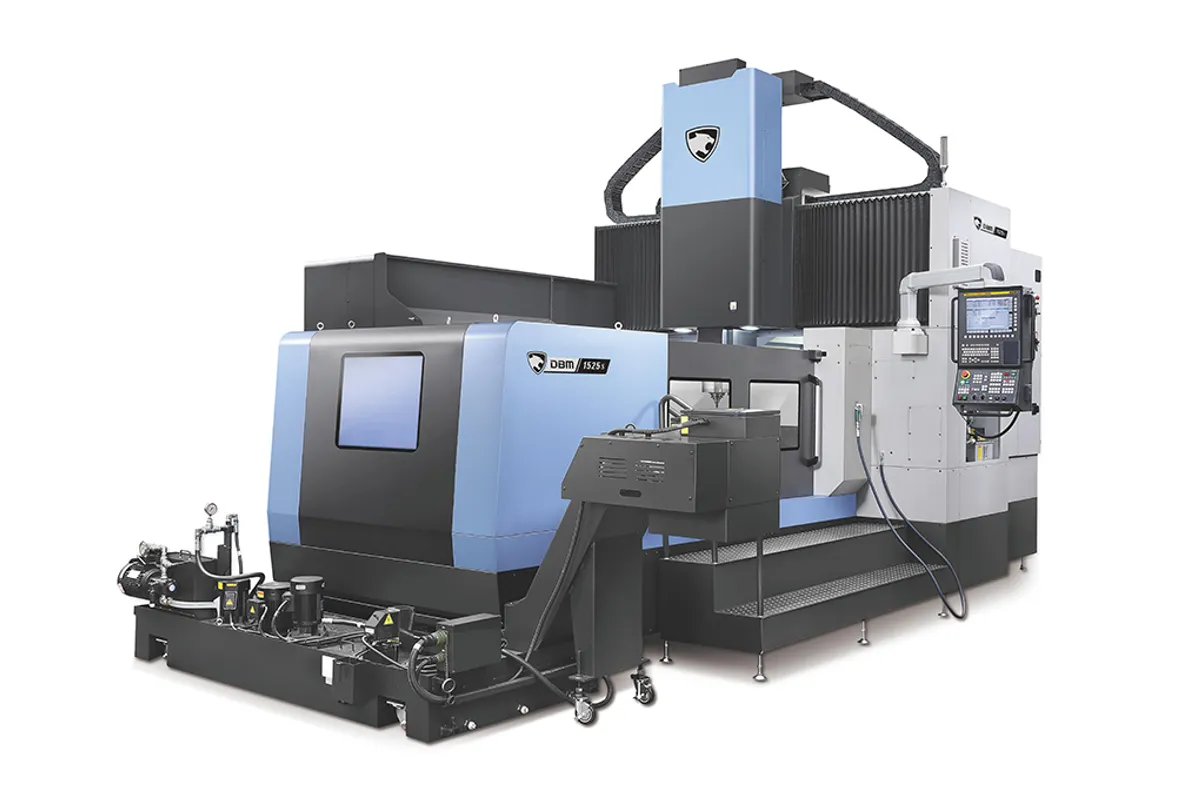

DN Solutions DBM 1525 S

$350,000 - $500,000 Updated 2026-03-19

Key Specifications

Max Spindle

12,000 RPM

Spindle Taper

ISO 50

Table Size

2,800 x 1,250 mm (110 x 49 in)

Rapid Traverse

16 m/min (630 in/min)

Spindle Power

30 kW (40 hp)

x axis travel

2,800 mm (110 in)

Overview

The DN Solutions DBM 1525 S is a double-column machining center designed as a workhorse for medium-to-large mold and die applications. The double-column (gantry-style) construction wraps the spindle in a rigid frame that resists deflection far better than C-frame VMCs, and this machine's 28,000 kg weight gives it the mass to back that rigidity up during heavy cutting.

Travel comes in at 2,800 x 1,350 x 750 mm with a 2,800 x 1,250 mm table rated for 10,000 kg. The spindle runs ISO 50 taper at 12,000 RPM with 30 kW and 420 Nm of torque, and you get a 40-tool magazine with a CAM-type ATC as standard. That's a complete package for mold work — enough tools to rough, semi-finish, and finish a mold cavity without operator intervention.

What sets the DBM 1525 S apart from the BM-series bridge mills is the Z-axis box guideway. While the X and Y axes use roller-type LM guideways for speed and precision, the Z-axis box guideway provides extra damping and load-carrying capability in the cutting direction. Multiple thermal displacement sensors monitor the structure during operation and compensate in real time. Rapids hit 16 m/min on all axes. For mold shops looking for double-column rigidity in a more compact package than the larger DCM series, the DBM 1525 S delivers professional-grade capability without demanding an oversized foundation.

Full Specifications

Parameter	Value
X Axis Travel	2,800 mm (110 in)
Y Axis Travel	1,350 mm (53 in)
Z Axis Travel	750 mm (30 in)
Max Spindle Speed	12,000 RPM
Spindle Motor Power	30 kW (40 hp)
Spindle Torque	420 Nm (310 ft-lb)
Spindle Taper	ISO 50
Table Size	2,800 x 1,250 mm (110 x 49 in)
Table Load Capacity	10,000 kg (22,046 lb)
Tool Magazine Capacity	40 tools
Rapid Traverse Rate	16 m/min (630 in/min)
Machine Length	4,395 mm (173 in)
Machine Height	4,360 mm (172 in)
Machine Width	8,220 mm (324 in)
Machine Weight	28,000 kg (61,729 lb)
X Axis Travel Distance	2800 mm
Y Axis Travel Distance	1350 mm
Z Axis Travel Distance	750 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Table	Table LengthTable WidthMaximum Workpiece weight
Tool Storage Capacity	No. of tool stationTool Taper
No Of Tool Station	Tool Taper
Dimensions	LengthHeightWidthWeight
Favorites	DBM 1525s

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Double-column construction provides superior rigidity compared to C-frame VMCs for heavy mold cutting
Z-axis box guideway adds extra damping and load capacity in the primary cutting direction
40-tool CAM-type ATC covers complete roughing-to-finishing cycles without operator intervention
10,000 kg table capacity handles heavy mold blocks with room to spare
Multiple thermal displacement sensors maintain accuracy during long machining runs
More compact footprint than larger DCM-series double-column machines

Limitations

750 mm Z-travel is slightly less than the BM-series 800 mm, limiting deep-cavity work
2,800 mm X-travel may not be enough for the largest automotive bumper molds
28,000 kg machine weight still requires foundation engineering, though less than larger models
ISO 50 tooling costs add to the total ownership expense

Best For

Mold shops producing medium-size injection molds, appliance molds, and packaging tooling Die makers needing double-column rigidity for progressive and transfer die machining Shops stepping up from C-frame VMCs that want double-column stability without a massive footprint Contract mold shops running unattended cycles that benefit from the 40-tool magazine capacity Any mold/die operation machining blocks up to 10,000 kg that needs production-ready rigidity

Frequently Asked Questions

01 What does the DN Solutions DBM 1525 S cost?

New DBM 1525 S double-column machining centers typically run $350,000-$500,000 depending on options and configuration. That's competitive pricing for a double-column machine with 12,000 RPM spindle and 40-tool magazine.

02 What's the difference between the DBM 1525 S and the BM 1530 M?

The BM 1530 M is a bridge-type design with slightly more travel (3,000 x 1,550 x 800 mm vs 2,800 x 1,350 x 750 mm). The DBM 1525 S uses a double-column construction with a Z-axis box guideway for extra damping. The BM 1530 M uses LM guideways on all axes. Choose based on whether you prioritize the BM's extra travel or the DBM's Z-axis damping.

03 What is a Z-axis box guideway and why does it matter?

A box guideway uses a sliding contact surface instead of rolling elements (linear guides). In the Z-axis, this provides better vibration damping and higher load capacity during plunge cuts and heavy facing operations. The tradeoff is slightly slower rapid traverse, but the DBM 1525 S still hits 16 m/min.

04 Can the DBM 1525 S handle hardened steel?

Yes. The 12,000 RPM spindle with 420 Nm torque, double-column rigidity, and Z-axis box guideway make it well-suited for machining hardened tool steels like H13 and P20 in mold and die applications.
