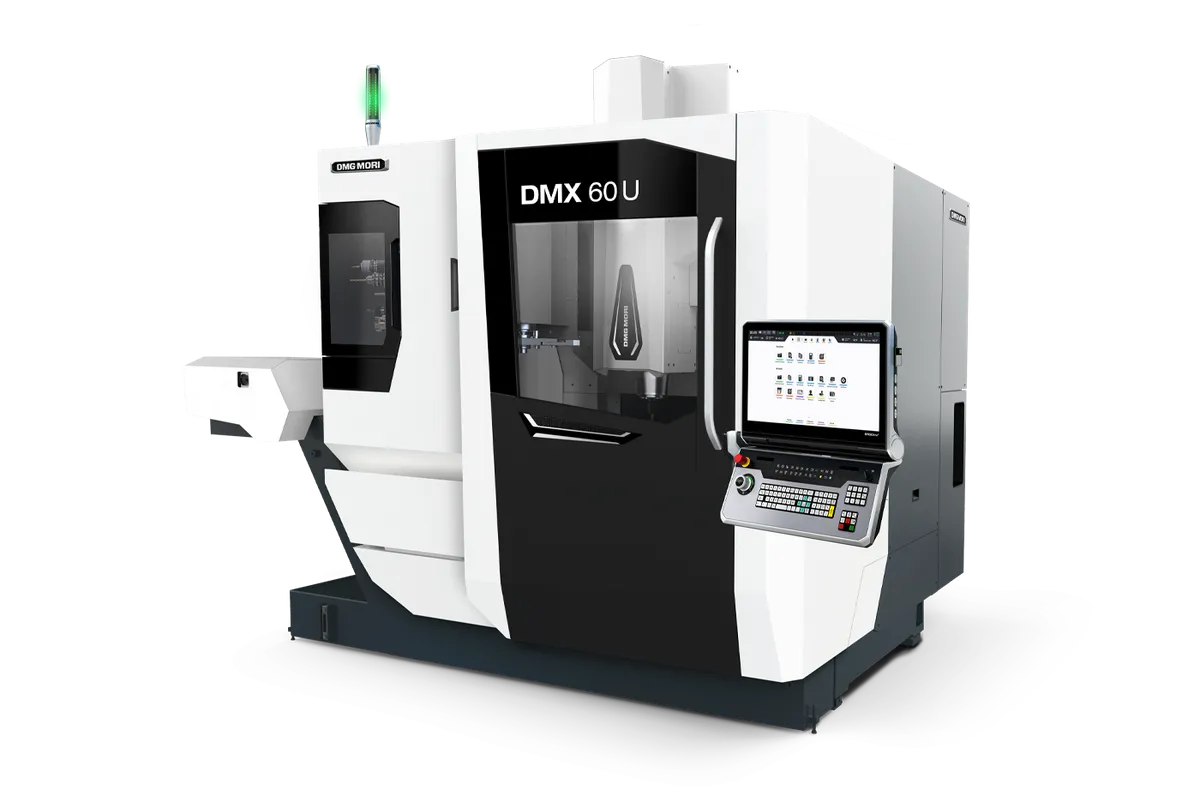

DMG Mori DMX 60 U

Est. $275,000 - $400,000 Specs verified 2026-10-02 · dmgmori.com Updated 2026-10-02

Image: dmgmori.com, DMG Mori

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

600 mm (23.6 in)

Z Travel

510 mm (20.1 in)

Max Spindle

up to 20,000 rpm (full range of available spindles)

Rapid Traverse

42 m/min in all linear axes

Max Workpiece ⌀

630 mm (24.8 in)

How much does the DMG Mori DMX 60 U cost?

Estimated price range

Est.$275,000 - $400,000

Our best estimate for a 5-axis machining center in this class — not a quote from DMG Mori. Configuration moves it a long way.

Overview

The DMG MORI DMX 60 U is a 5-axis machining center with a swivel-rotary table, 600 × 600 × 510 mm (23.6 × 23.6 × 20.1 in) of travel and room for workpieces up to 630 mm (24.8 in) in diameter, 450 mm (17.7 in) high and 300 kg (661.4 lb).

The table is the centre of the design. It swivels and rotates in the B and C axes for 5-sided machining in one set-up, carries 7 T-slots for clamping devices, and is laid out so that both the operator and a crane can get to it. The 300 kg limit is, by DMG MORI's account, 50% more than the predecessor carried. That matters on a machine of this size, because a vise or a zero-point plate takes its share of the load before the part goes on.

Underneath is a monolithic machine bed with wide roller guideways in all axes, for which DMG MORI claims up to 50% higher static rigidity than the predecessor. Rapid traverse is 42 m per minute in all linear axes, stated as 40% faster than before, and table speed in B and C is given as over 60% higher. The predecessor is not named and no absolute table speed is listed, so these comparisons show the direction of the redesign more than they give numbers to plan with.

Spindles are described as a full range up to 20,000 rpm, or a High Torque version with 200 Nm. The first suits small tools and aluminium, the second larger cutters in steel. Positioning relies on a direct measuring system with linear scales in all linear axes, direct drive transmission in X and Y, and multisensor thermal compensation. Circular interpolation is quoted at a Double Ballbar result below 6 µm in all planes.

The DMX 80 u extends X to 800 mm (31.5 in) on the same 600 mm of Y and 510 mm of Z.

Full Specifications

Parameter	Value
Max Workpiece Diameter	630 mm (24.8 in)
Max Workpiece Height	450 mm (17.7 in)
Max Workpiece Weight	300 kg (661.4 lb)
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	600 mm (23.6 in)
Z-Axis Travel	510 mm (20.1 in)
Max Spindle Speed	up to 20,000 rpm (full range of available spindles)
Spindle Torque	200 Nm (High Torque version)
Rapid Traverse Rate	42 m/min in all linear axes
Table T Slots	7 T-slots
Circular Interpolation Accuracy	< 6 µm (Double Ballbar in all planes)

Specifications sourced from dmgmori.com — verified 2026-10-02

Strengths & Limitations

Strengths

Swivel-rotary table for 5-sided machining in one set-up, taking workpieces up to 300 kg (661.4 lb)
Rapid traverse of 42 m per minute in all linear axes
Linear scales in all linear axes and a direct measuring system
Circular interpolation with a Double Ballbar result below 6 µm in all planes
Spindle range up to 20,000 rpm, with a High Torque version of 200 Nm for tougher materials
Table reachable by the operator and by crane, with 7 T-slots for clamping devices

Limitations

Spindle power is not stated for any spindle, and the High Torque version is listed without a speed
Tool magazine capacity is not given in DMG MORI's listed data
Workpiece height is limited to 450 mm (17.7 in) and weight to 300 kg (661.4 lb), which rules out tall or heavy fixture towers
Rigidity, rapid traverse and table speed gains are stated against an unnamed predecessor, without absolute values for rigidity or table speed

Best For

5-sided machining of parts up to 630 mm (24.8 in) in diameter in one set-up Fixture-held workpieces up to 300 kg (661.4 lb) loaded by crane Steel and stainless parts that call for the 200 Nm High Torque spindle Bores and circular pockets where Double Ballbar accuracy below 6 µm counts General job-shop parts within 600 × 600 × 510 mm (23.6 × 23.6 × 20.1 in)

Frequently Asked Questions

01 What size of part fits on the DMX 60 U?

Workpieces up to 630 mm (24.8 in) in diameter, 450 mm (17.7 in) in height and 300 kg (661.4 lb). Travels are 600 mm (23.6 in) in X, 600 mm (23.6 in) in Y and 510 mm (20.1 in) in Z. The diameter limit is a little more than the X and Y travel, so the full diameter is covered with the help of the rotary table.

02 Which spindles are available on the DMX 60 U?

DMG MORI describes a full range of spindles, up to 20,000 rpm, or a High Torque version with 200 Nm. Power ratings, tool interface and the speed of the High Torque spindle are not in the listed data, so request the spindle data sheet with the quotation.

03 How fast are the axes of the DMX 60 U?

Rapid traverse is 42 m per minute in all linear axes, which DMG MORI states is 40% faster than the predecessor. The B and C axes of the table are said to be over 60% faster than before, but no absolute table speed is listed.

04 What does DMG MORI state about the accuracy of the DMX 60 U?

The machine has a direct measuring system with linear scales in all linear axes, direct drive transmission in the X and Y axes and multisensor thermal compensation. For circular interpolation DMG MORI quotes a Double Ballbar result below 6 µm in all planes. A positioning accuracy figure is not listed.

05 What is the difference between the DMX 60 U and the DMX 80 u?

X travel. The DMX 80 u has 800 mm (31.5 in) of X, against 600 mm (23.6 in) on the DMX 60 U. Y and Z are the same on both at 600 mm (23.6 in) and 510 mm (20.1 in). Choose by the longest part or the widest fixture you expect to put on the table.
