Hanwha XD20H
Key Specifications
Max Turn Length
max bar capacity
main spindle speed
main spindle power
sub spindle speed
sub spindle power
How much does the Hanwha XD20H cost?
Estimated price range
Our best estimate for a swiss-type lathe in this class — not a quote from Hanwha Precision Machinery. Configuration moves it a long way.
Overview

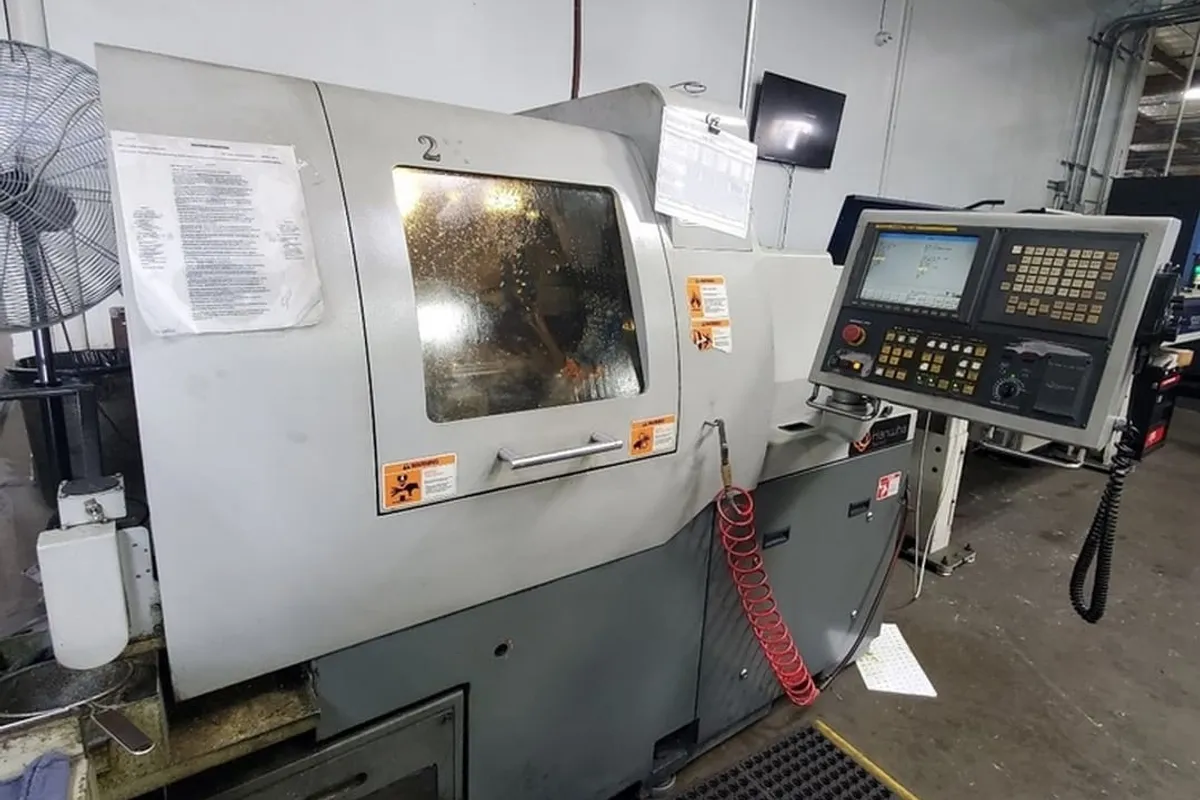

The Hanwha XD20H is a sliding-headstock Swiss-type lathe for 20 mm (0.787 in) bar, with a 210 mm (8.27 in) maximum turning length and 21 tool stations. The listed figures describe a machine with 5 axes plus a C axis, a 10,000 rpm main spindle of 3.7 kW (5 hp) and an 8,000 rpm sub spindle of 2.2 kW (3 hp).

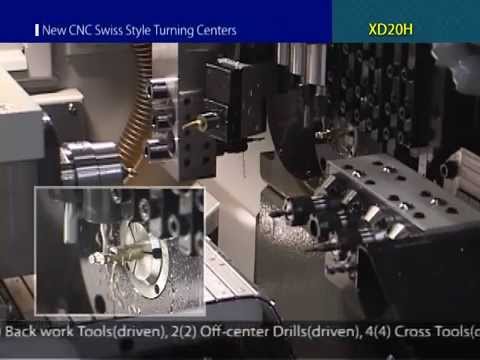

The most useful row in the table is the breakdown of those 21 stations: 6 for OD turning, 5 for front ID work, 4 live cross tools, 2 for back-working and 4 on the sub spindle. A Y axis is listed on the ID tool block. Read together, that is a layout weighted toward turning and axial drilling, with a small driven group for cross features.
The live tools run to 8,000 rpm on 0.75 kW (1 hp). That is enough for small cross holes, flats and slots, and the listed drill and tap capacity of 10 mm (0.39 in) / M8 marks the upper end. Anything that calls for heavier milling should be judged against that power figure, not the speed.
Control is a Fanuc 18iTB, and the table lists compatibility with standard 12-foot bar feeders, so the floor plan has to allow for the feeder behind the headstock. No weight, footprint or rapid traverse figures are listed. Confirm those, and the figures above, against the documentation of the specific machine.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 20 mm (0.787 in) |
| Max Turning Length | 210 mm (8.27 in) |
| Main Spindle Speed | 10,000 RPM |
| Main Spindle Power | 3.7 kW (5 HP) |
| Sub Spindle Speed | 8,000 RPM |
| Sub Spindle Power | 2.2 kW (3 HP) |
| Number of Axes | 5 axes + C-axis |
| Total Tool Stations | 21 (6 OD turning, 5 front ID, 4 live cross, 2 back-working, 4 sub-spindle) |
| Live Tool Speed | 8,000 RPM |
| Live Tool Power | 0.75 kW (1 HP) |
| Y Axis | Yes (ID tool block) |
| Max Drill Tap Capacity | 10 mm (0.39 in) / M8 |
| CNC Control | Fanuc 18iTB |
| Guide Bush | Standard sliding headstock |
| Bar Feed Compatibility | Standard 12-foot bar feeders |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 21 tool stations: 6 OD turning, 5 front ID, 4 live cross, 2 back-working and 4 for the sub spindle
- 10,000 rpm, 3.7 kW (5 hp) main spindle paired with an 8,000 rpm, 2.2 kW (3 hp) sub spindle for the back end
- Y axis on the ID tool block, which gives the front ID tools off-centre positioning
- Live cross tools run to 8,000 rpm
- Listed as compatible with standard 12-foot bar feeders
Limitations
- Live tool power is 0.75 kW (1 hp), so driven work is limited to small drills, taps and light milling
- Drill and tap capacity is listed at 10 mm (0.39 in) / M8
- Bar capacity is 20 mm (0.787 in) and turning length 210 mm (8.27 in); larger or longer parts need another machine
- No weight, footprint or rapid traverse rows are listed, so installation planning needs figures from elsewhere
Best For
Frequently Asked Questions
01
The listed total is 21: 6 OD turning tools, 5 front ID tools, 4 live cross tools, 2 back-working tools and 4 sub-spindle tools. The Y axis is on the ID tool block. Four of the stations are listed as live, so most of the tooling is static.
02
The main spindle is listed at 10,000 rpm and 3.7 kW (5 hp). The sub spindle is listed at 8,000 rpm and 2.2 kW (3 hp). Live tools run at 8,000 rpm with 0.75 kW (1 hp).
03
The listed maximum drill and tap capacity is 10 mm (0.39 in) / M8. Bar capacity is 20 mm (0.787 in), so larger bores would have to be opened up with boring tools from the 5 front ID stations.
04
The control is listed as a Fanuc 18iTB. For bar feeding the table lists standard 12-foot bar feeders as compatible. The guide bush row reads standard sliding headstock.
