Mazak VCN-535C
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity

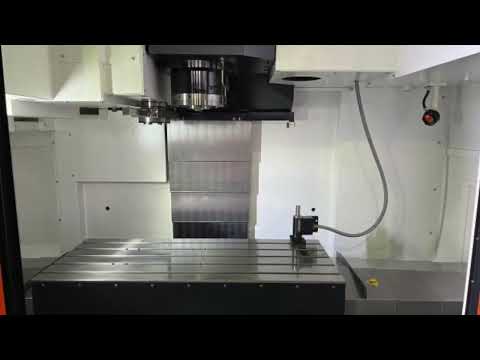

Overview
The Mazak VCN-535C is a BT 50 vertical machining center that shares the same work envelope as the BT 40 VCN-530C but steps up to a 50-taper spindle for significantly greater tool clamping force and cutting rigidity. With travel of 1,050 x 530 x 510 mm (41.3 x 20.9 x 20.1 in), the VCN-535C occupies the same footprint as the 530C but delivers heavier cutting capability for steel, cast iron, and titanium work.
The BT 50 spindle turns at 10,000 RPM with 30 kW (40 hp), providing the torque needed for large face mills, heavy boring operations, and aggressive roughing parameters that would overwhelm a 40-taper spindle. The integral spindle/motor design eliminates belts, reducing vibration and delivering consistent power across the speed range. A 30-tool arm-type ATC handles the larger BT 50 tooling with tool-to-tool times around 2.0 seconds.
Mazak builds the VCN-535C on a Meehanite cast iron C-frame with roller guides across all three axes. Ball screw core cooling and the THERMAL SHIELD system manage thermal growth during extended production runs. At approximately 7,800 kg (17,196 lb), the additional mass over the 530C contributes to vibration damping during heavy interrupted cuts.
The MAZATROL SmoothG control provides both conversational and G-code programming with 3D simulation. The VCN-535C targets shops that need production-grade vertical machining with BT 50 rigidity but do not require the larger envelope of the VCN-700. It competes with the Okuma GENOS M560-V (50-taper variant), DMG Mori CMX 800 V, and Doosan DNM 5700.
New VCN-535C machines run $155,000-$200,000 depending on options. Used units from 2012-2019 sell in the $70,000-$110,000 range. Shops running predominantly steel and cast iron will appreciate the BT 50 rigidity advantage over the 530C, while shops focused on aluminum should consider staying with the faster-spinning 530C.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,050 mm (41.3 in) |
| Y-Axis Travel | 530 mm (20.9 in) |
| Z-Axis Travel | 510 mm (20.1 in) |
| Max Spindle Speed | 10,000 RPM |
| Spindle Taper | BT 50 |
| Spindle Motor Power | 30 kW (40 hp) |
| Tool Capacity | 30 (arm-type ATC); 48 optional |
| Table Size | 1,300 x 550 mm (51.2 x 21.7 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| Rapid Traverse Rate | 36 m/min (1,417 ipm) |
| Tool To Tool | 2.0 sec |
| Machine Weight | 7,800 kg (17,196 lb) |
| CNC Control | MAZATROL SmoothG |
| Guide Type | Linear roller guides (all axes) |
| Floor Space Required | 2,870 x 2,819 mm (113 x 111 in) |
| Series Name | Pallet size |
| Simultaneous 5 Axis Controlintegrex I Neo | 6" / 8" |
| 8 To 12 | Φ26.38" |
| Simultaneous 5 Axis Controlintegrex I H | 6" / 8" |
| Simultaneous 5 Axis Controlintegrex I 150 | 6″ |
| Simultaneous 4 Axis Controlentry Modelintegrex J | 8" to 12" |
| Simultaneous 4 Axis Controlentry Modelenvironmentally Friendlyintegrex J 200 Neo | 8" |
| Simultaneous 5 Axis Controlintegrex I 500 | 10″ |
| Simultaneous 5 Axis Controlfor Long And Large Diameter Workpiecesintegrex E H | 15" to 32" |
| Verticalsimultaneous 5 Axis Controlfor Large Workpiecesintegrex I V | CAT No.40 / CAT No.50 |
| Double Columnsimultaneous 5 Axis Controlfor Large Workpieceintegrex E V | CAT No.50 |
| Integration Of Gear Machining And Measurementintegrex Ag | 8" to 12" |
| 315 To 5512 | Φ41.34" to Φ90.55" |
| Environmentally Friendlyvariaxis I Neo | Φ27.56" × width 19.69" |
| 315 Width 248 | BIG-PLUS No.50 |
| Best Selling Machinesvariaxis I | Φ19.69" × width 15.75" to Φ23.62" × width 19.69" |
| 4134 Width 315 | BIG-PLUS No.50 / CAT No.50 |
| Compact Entry Modelautomation Availablevariaxis C | Φ23.62" × width 19.69" |
| Compact Entry Modelvariaxis J | Φ19.69" × width 15.75" |
| Simultaneous 5 Axis Controlvc Ez X | 37.4" × 14.17" to 49.21" × 19.37" |
| High Mix Low Volume Productionautomation Availablevariaxis I 300 Awc | Clamp interfaceHSK-A100 holder |
| Tilt Spindle Verticalfor Large Workpiecesvortex I V | 24.8" × 24.8" |
| Tilt Spindle Double Columnfor Large Workpiecesvortex E V | 31.5" × 31.5" |
| From 3937 3927 | CAT No.50 |
| Tilt Spindle Fixed Tablefor Long Workpiecesvtc | 137.8" × 32.28" |
| Aerospace Industrytilt Spindle Vortex Ii | 127.56" × 31.89" / 157.48" ×49.21" |
| High Speed 5 Axis Machiningtilt Spindle Vortex Horizontal Profiler | 157.48" × 49.21" / 157.48" ×62.99" |
| Horizontalhigh Speed 5 Axis Machininghcr | 19.69" × 19.69" |
| Die And Moldhigh Accuracy And Ultra Precision Machiningud | 12.6" × 12.6" |
| 5 Axis Double Column Machining Centeruniversal Headversatech | 118.11" × 82.68" to393.7" × 122.05" |
| Best Selling Machinesquick Turn | 6" to 21" |
| Cost Performance Modelqt Ez | 8" to 12" |
| Cost Performance Modelqte | 6" to 10" |
| Compact 2 Axis Turning Centersqt Primos | 5" to 8" |
| Turret Lathe For Heavy Duty Machiningslant Turn | 18" to 24" |
| Flat Turning Centers For Heavy Duty Cutting Turning Center | 12" |
| Flat Turning Centers For Heavy Duty Cutting Power Master | 15" |
| Milling2 Spindles And 2 Turretsmultiplex W | 8″ |
| 2 Spindles And 2 Turretsdual Turn 200 | 8″ |
| Milling2 Spindles And 3 Turretshqr Neo | 8" / 10" |
| Milling2 Spindle And Upper And Lower Turrethqr | 6″ |
| 8 To 10 | Φ13.54" |
| Milling Upper And Lower Turretsqrx 50 | 6" |
| Vertical Turning Centersmirror Modelmega Turn | 12" to Φ59.06" |
| Unique Turn Face Headstockorbitec 20 | 24.8" |
| High Speed Small Precise Parts Productionsyncrex | Φ0.375" to Φ1.5" |
| Cost Performance Modelvc Ez | CAT No.40 |
| Fixed Tablelong Workpiecesvtc Ez | CAT No.40 |
| Cat No50 | 6000 min-1 (rpm) |
| High Rigidity And High Torqueheavy Duty Cuttingmtv | CAT No.50 |
| Fixed Tablespace Savingvtc | CAT No.40 |
| Fixed Tablelong Workpiecesultra High Speedsvc | CAT No.40 |
| Mass Production Linepallet Size 400 Mm 400 Mmun | CAT No.30 |
| Double Columnhigh Accuracy And High Productivitybt40fjv | CAT No.40 |
| Double Columnhigh Accuracy And High Productivitybt50fjv | CAT No.50 |
| Double Columnhigh Accuracy And High Productivity5 Face Machiningfjv 5 Face | CAT No.50 |
| 5 Face Double Column Machining Centershigh Torque Spindleangle Headfjw | CAT No.50 |
| 5 Face Double Column Machining Centersuniversal Headsimultaneous 5 Axis Controlversatech | CAT No.50 |
| Environmentally Friendlyhcn Neo | 15.75" × 15.75" / 19.69" × 19.69" |
| Best Selling Machineshcn | up to 19.69" × 19.69" |
| From 315 315 | CAT No.50 |
| Difficult Machining Materialhigh Efficiency Machiningmega | 31.5" × 31.5" |
| Quill Axislarge Workpieceshcn Q | 49.21" × 39.37" to 62.99" × 49.21" |
| Ultra High Accuracy | 31.5" × 31.5" |
| Mass Productionspace Savingff | 19.69" × 19.69" |
| Mass Production Line Constructionpallet Size 400 Mm 400 Mmun | 15.75" × 15.75" |
Specifications sourced from mazak.com — verified 2026-03-28
Strengths & Limitations
Strengths
- BT 50 taper provides maximum tool clamping force for heavy roughing with large face mills and boring bars in steel and cast iron
- Same 1,050 mm X-travel as the VCN-530C gives generous work envelope without stepping up to a larger machine platform
- 30 kW (40 hp) integral spindle motor eliminates belt vibration and delivers consistent torque across the speed range
- THERMAL SHIELD with ball screw core cooling maintains accuracy during extended production runs
- 7,800 kg machine mass provides excellent vibration damping during heavy interrupted cuts
- MAZATROL SmoothG conversational programming with 3D simulation reduces setup time on short-run jobs
Limitations
- 10,000 RPM spindle speed limits high-speed aluminum machining; shops focused on aluminum should consider the 12K-18K RPM VCN-530C
- BT 50 tooling costs more across holders, collets, and cutting tools than BT 40 equivalents
- Starting at $155K, the 535C carries a $30K+ premium over the 530C for the same work envelope
- 2.0-second tool-to-tool time is slower than the 530C's 1.3-second changes due to heavier BT 50 tools
Best For
Frequently Asked Questions
01
New pricing runs $155,000-$200,000 depending on configuration. Options like through-spindle coolant, expanded 48-tool magazine, probing packages, and chip conveyors push the price higher. Used VCN-535C machines from 2012-2019 sell in the $70,000-$110,000 range.
02
Both share the same 1,050 x 530 x 510 mm work envelope. The 535C uses a BT 50 spindle (10K RPM, 30 kW) for heavier cuts, while the 530C uses BT 40 (12K RPM, 18.5 kW) for faster speeds. Choose the 535C for steel/iron work with large cutters; choose the 530C for aluminum and lighter materials where RPM matters more.
03
Excellent for roughing and semi-finishing mold steel. The BT 50 spindle handles large face mills and roughing end mills in P20 and H13 without the deflection issues common with BT 40 machines. For high-speed finishing passes with small ball-nose end mills, some shops pair the 535C with a dedicated high-speed machine.
04
The footprint is approximately 2,870 x 2,819 mm (113 x 111 in), essentially the same as the VCN-530C. Plan for at least 4 x 3.5 meters with service clearance. At 7,800 kg, it requires solid concrete flooring, minimum 150 mm thick.
