Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

Mazak INTEGREX e-500H

Est. $550,000 - $850,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

34 in (864 mm)

Y Travel

20 in (508 mm)

Z Travel

63 in (1,600 mm)

Max Spindle

3,300 rpm

Spindle Taper

CAT50

Tool Capacity

40 tools

How much does the Mazak INTEGREX e-500H cost?

Estimated price range

Est.$550,000 - $850,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

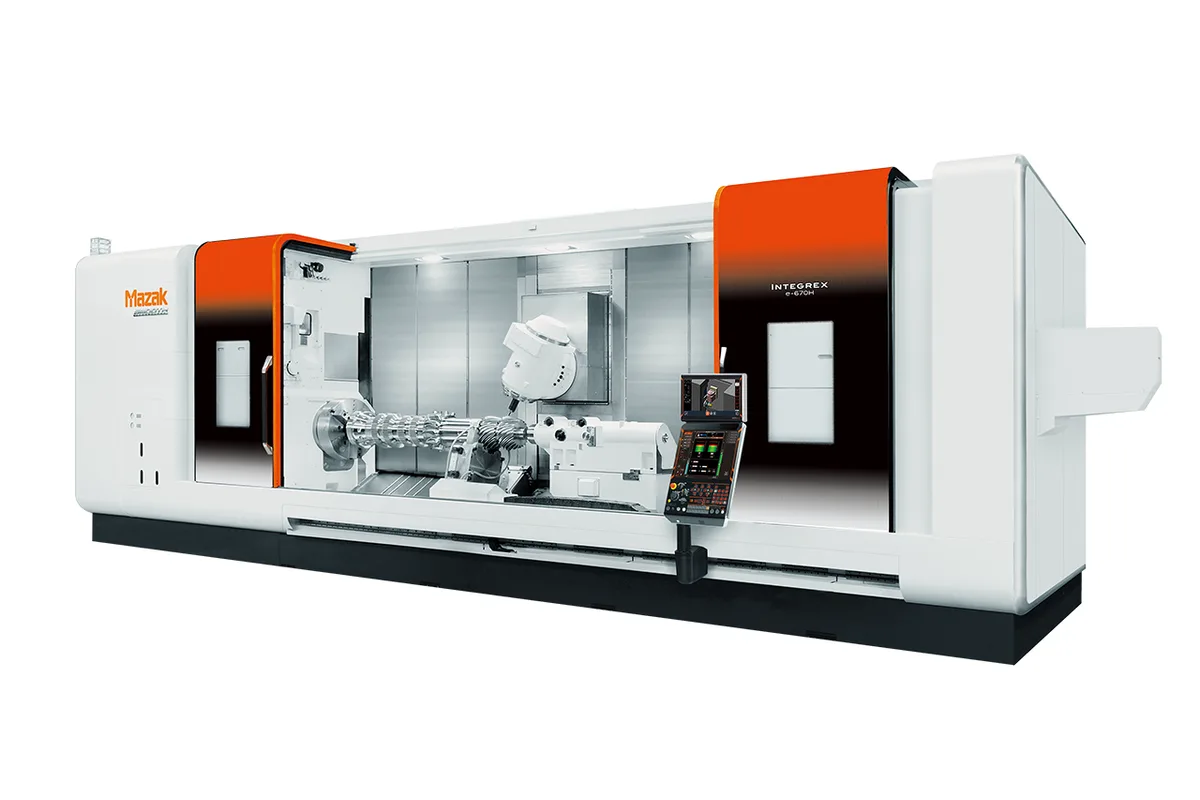

The Mazak INTEGREX e-500H is the 15 to 21 inch chuck model of the INTEGREX e-H series, a large multi-tasking machine built around a CAT50 milling spindle: 10,000 rpm, 30 kW (40 HP) continuous and 191 Nm (141 ft-lb) of continuous torque. That spindle travels 34 in (864 mm) in X, 20 in (508 mm) in Y and 63 in (1,600 mm) in Z.

Torque is the reason to step up to this machine. At 40% ED the milling spindle delivers 260 Nm (192 ft-lb) and 37 kW (50 HP), and the tool changer accepts cutters to match: Ø5 in (127 mm) with a full magazine, Ø10 in (254 mm) with adjacent pockets empty, 20 in (508 mm) long and as heavy as 66 lb (30 kg). Large face mills, long boring bars and big drills fall within those limits. The magazine holds 40 tools.

The INTEGREX i-500 covers nearly the same travels, 33 in (838 mm), 17 in (432 mm) and 65 in (1,651 mm), on HSK-A63 with 36 tools and 1,969 ipm (50 m/min) rapids at 46,958 lb (21,300 kg). The e-500H is slower between cuts at 1,575 ipm (40 m/min) in X, Y and Z, and heavier at 49,824 lb (22,600 kg). The choice between the two is a choice between speed of movement and weight of cut.

On the turning side the spindle is rated 22 kW (30 HP) continuous and 30 kW (40 HP) at 40% ED at up to 3,300 rpm. The tailstock has an MT No.5 taper, 3,372 lb (1,530 kg) of thrust and a 236 ipm (6 m/min) feedrate. Mazak's series description adds a long boring bar system for deep internal diameters, with a dedicated stocker that holds 2 bars on the e-500H, and names MAZATROL SmoothAi as the control. This is a large installation: 257 in (6,528 mm) × 181 in (4,597 mm) of floor and 127 in (3,226 mm) of height.

Full Specifications

Parameter	Value
Bed Length Type	1500U
Max Spindle Speed	3,300 rpm
Spindle Power Intermittent	30 kW (40 HP) (40% ED)
Spindle Motor Power	22 kW (30 HP) continuous
Milling Spindle Speed	10,000 rpm
Milling Spindle Torque Intermittent	260 Nm (192 ft-lb) (40% ED)
Milling Spindle Torque	191 Nm (141 ft-lb) continuous
Milling Spindle Power Intermittent	37 kW (50 HP) (40% ED)
Milling Spindle Power	30 kW (40 HP) continuous
B Axis Indexing Increment	0.0001°
Spindle Taper	CAT50
Tool Capacity	40 tools
Max Tool Diameter (full magazine)	Ø5 in (127 mm)
Max Tool Diameter (adjacent pockets empty)	Ø10 in (254 mm)
Max Tool Length	20 in (508 mm)
Max Tool Weight	66 lb (30 kg)
X-Axis Travel	34 in (864 mm)
Y-Axis Travel	20 in (508 mm)
Z-Axis Travel	63 in (1,600 mm)
Rapid Traverse X	1,575 ipm (40 m/min)
Rapid Traverse Y	1,575 ipm (40 m/min)
Rapid Traverse Z	1,575 ipm (40 m/min)
Tailstock Feedrate	236 ipm (6 m/min)
Tailstock Taper	MT No.5
Tailstock Thrust	3,372 lb (1,530 kg)
Floor Space Required	257 in (6,528 mm) × 181 in (4,597 mm) (W × L)
Machine Height	127 in (3,226 mm)
Machine Weight	49,824 lb (22,600 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

CAT50 milling spindle with 191 Nm (141 ft-lb) continuous and 260 Nm (192 ft-lb) at 40% ED
Milling power of 30 kW (40 HP) continuous and 37 kW (50 HP) at 40% ED, above the 22 kW (30 HP) continuous of the turning spindle
Accepts tools up to 66 lb (30 kg) and up to Ø10 in (254 mm) with adjacent pockets empty
20 in (508 mm) of Y travel, against 17 in (432 mm) on the INTEGREX i-500
Tailstock with 3,372 lb (1,530 kg) of thrust for heavy shafts
Long boring bar system with a 2-bar dedicated stocker on the e-500H, per Mazak's series description

Limitations

Rapid traverse is 1,575 ipm (40 m/min) in all three linear axes; the INTEGREX i-500 moves at 1,969 ipm (50 m/min)
Milling spindle speed is capped at 10,000 rpm, which limits small-tool work
The table gives no maximum turning diameter or turning length for this model, so those must be confirmed with Mazak
Needs 257 in (6,528 mm) × 181 in (4,597 mm) of floor, 127 in (3,226 mm) of height and a foundation for 49,824 lb (22,600 kg)
Mazak describes the series' process-integration equipment as optional

Best For

Heavy milling on turned parts using CAT50 cutters at up to 260 Nm (192 ft-lb) (40% ED) Large face mills and drills up to Ø10 in (254 mm) and 66 lb (30 kg) Heavy shafts supported by 3,372 lb (1,530 kg) of tailstock thrust Deep internal diameters machined with the long boring bar system Large workpieces needing 20 in (508 mm) of Y-axis stroke

Frequently Asked Questions

01 How much torque does the INTEGREX e-500H milling spindle have?

191 Nm (141 ft-lb) continuous and 260 Nm (192 ft-lb) at 40% ED. Power is 30 kW (40 HP) continuous and 37 kW (50 HP) at 40% ED. The spindle has a CAT50 taper and a maximum speed of 10,000 rpm, and the B-axis indexes in 0.0001° increments.

02 How does the INTEGREX e-500H differ from the INTEGREX i-500?

Mainly in the milling spindle and the speed of the axes. The INTEGREX e-500H has a CAT50 taper, 40 tools, 1,575 ipm (40 m/min) rapids, a 3,300 rpm turning spindle and weighs 49,824 lb (22,600 kg). The INTEGREX i-500 has HSK-A63, 36 tools, 1,969 ipm (50 m/min) rapids, 4,000 rpm and weighs 46,958 lb (21,300 kg). Both turning spindles are rated 22 kW (30 HP) continuous.

03 What is the largest tool the changer will take?

With every pocket full, Ø5 in (127 mm). With the adjacent pockets left empty, Ø10 in (254 mm). Maximum tool length is 20 in (508 mm) and maximum tool weight 66 lb (30 kg). The magazine holds 40 tools, so each oversize tool reduces the usable count.

04 What is the next size up in the series?

The INTEGREX e-670H has travels of 40 in (1,016 mm) in X, 26 in (660 mm) in Y and 123 in (3,124 mm) in Z, a 1,600 rpm turning spindle rated 37 kW (50 HP) continuous and a weight of 68,342 lb (30,999 kg). It shares the CAT50 taper, 40 tools and 1,575 ipm (40 m/min) rapids of this machine.

05 What tailstock does the machine have?

An MT No.5 tailstock with 3,372 lb (1,530 kg) of thrust and a feedrate of 236 ipm (6 m/min). That thrust suits heavy shaft work between the chuck and the centre. The table is for Mazak's 1500U bed class.

06 What chuck sizes does it use?

Mazak's series page groups the INTEGREX e-500H under chuck sizes of 15 to 21 inch. The turning spindle behind the chuck runs to 3,300 rpm and is rated 22 kW (30 HP) continuous and 30 kW (40 HP) at 40% ED. The table for this model does not state a maximum turning diameter.
