Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

Mazak Integrex i-200

Est. $270,000 - $390,000 Possible older model Updated 2026-10-02

This model was not found in Yamazaki Mazak's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

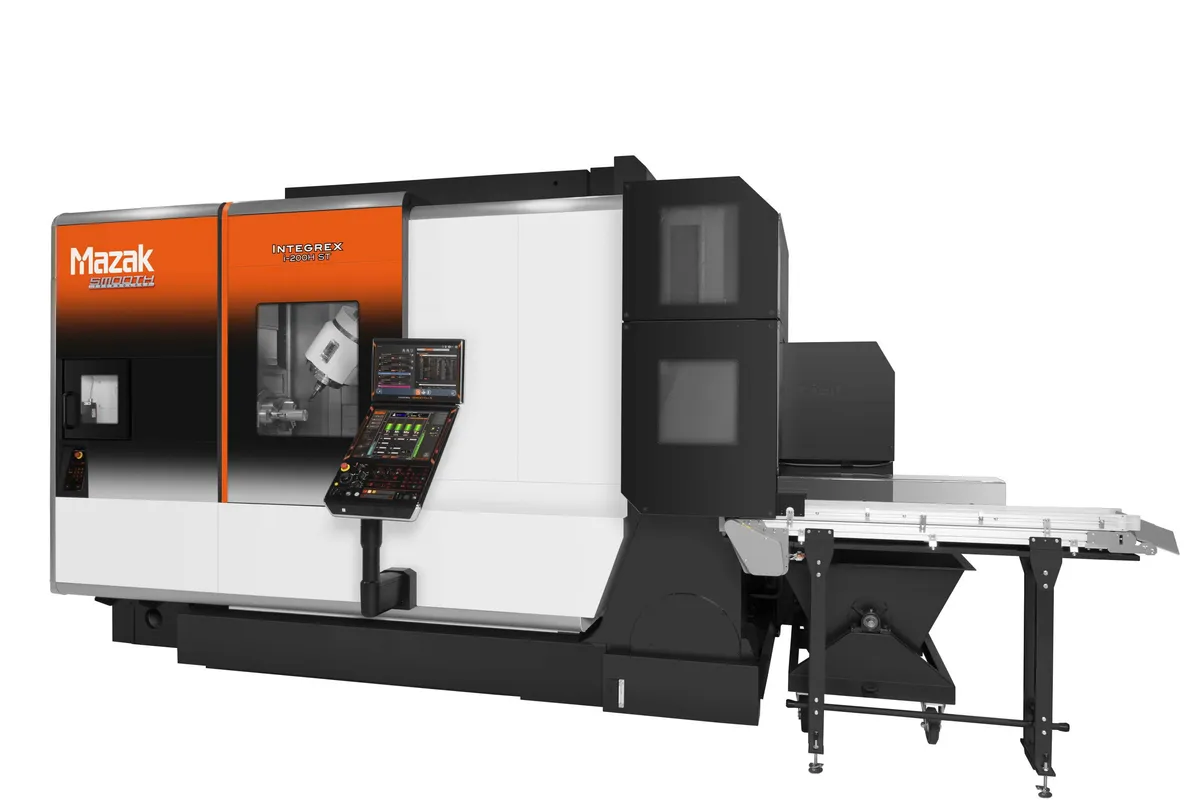

Mazak Integrex i-200 Mill-Turn / Multi-Tasking Machines

Key Specifications

X Travel

535 mm (21.1 in)

Y Travel

210 mm (8.27 in)

Z Travel

1,020 mm (40.2 in)

Tool Capacity

36 tools (72 or 110 optional)

max machining diameter

658 mm (25.9 in)

max machining length

1,011 mm (39.8 in)

How much does the Mazak Integrex i-200 cost?

Estimated price range

Est.$270,000 - $390,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak Integrex i-200 is a single-spindle mill-turn machine with an 8 in chuck on an A2-6 spindle nose and a B-axis milling spindle. It does not appear in Mazak's current lineup and may be an older model. Read the listed figures as a guide to what a used machine should offer, then verify them on the machine itself.

The proportions stand out. A listed maximum machining diameter of 658 mm (25.9 in) is large for an 8 in chuck, and X travel of 535 mm (21.1 in) gives the milling spindle room to get around a big flange or disc. Length is listed at 1,011 mm (39.8 in) with 1,020 mm (40.2 in) of Z. Y travel is 210 mm (8.27 in), so off-centre milled features must sit within that band about the spindle centreline.

The turning spindle is listed at 5,000 rpm and 22 kW (30 hp), with 65 mm (2.56 in) of bar capacity. For milling, the listed spindle is HSK-63 at 12,000 rpm and 18.5 kW (25 hp); 20,000 rpm is an option. B-axis range is 240° (-30° to +210°) and the C axis is 360° continuous. Tool capacity is 36 tools with 72 or 110 optional, and the machine weighs 9,200 kg (20,282 lb). The table gives no figures for a second spindle or a tailstock, so plan second-operation work as a separate setup unless the individual machine shows otherwise.

Full Specifications

Parameter	Value
Max Machining Diameter	658 mm (25.9 in)
Max Machining Length	1,011 mm (39.8 in)
X-Axis Travel	535 mm (21.1 in)
Y-Axis Travel	210 mm (8.27 in)
Z-Axis Travel	1,020 mm (40.2 in)
B Axis Range	240° (-30° to +210°)
C Axis Rotation	360° continuous
Main Spindle Speed	5,000 RPM
Main Spindle Power	22 kW (30 hp)
Milling Spindle Speed	12,000 RPM (20,000 RPM optional)
Milling Spindle Power	18.5 kW (25 hp)
Milling Spindle Taper	HSK-63
Chuck Size	8 in (A2-6)
Bar Capacity	65 mm (2.56 in)
Tool Capacity	36 tools (72 or 110 optional)
Rapid Traverse Xz	50 m/min (1,969 ipm)
Rapid Traverse Y	40 m/min (1,575 ipm)
Machine Weight	9,200 kg (20,282 lb)
CNC Control	MAZATROL SmoothAi CNC

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Listed 658 mm (25.9 in) machining diameter on an 8 in chuck machine
535 mm (21.1 in) of X travel and 210 mm (8.27 in) of Y travel
Milling spindle listed at 12,000 rpm and 18.5 kW (25 hp) with a 240° B axis
36-tool magazine, with 72 or 110 tools available as options

Limitations

Absent from Mazak's current lineup; the listed figures should be confirmed on the machine
No second spindle or tailstock figures are listed
Turning power is listed at 22 kW (30 hp), which limits heavy roughing at the larger diameters the envelope allows
The 20,000 rpm milling spindle is an option

Best For

Flanges and discs up to the listed 658 mm (25.9 in) diameter Bar work up to 65 mm (2.56 in) Turned parts with angled milling and drilling done in one setup

Frequently Asked Questions

01 Is the Integrex i-200 still in Mazak's lineup?

No, it is not in the current lineup and may be an older model. Someone considering a used Integrex i-200 should treat the listed figures as a reference and check the build details, such as magazine size and milling spindle speed, on the machine in question.

02 What size work fits the Integrex i-200?

The listed maximum machining diameter is 658 mm (25.9 in) and the maximum machining length 1,011 mm (39.8 in). Travels are listed at 535 mm (21.1 in) in X, 210 mm (8.27 in) in Y and 1,020 mm (40.2 in) in Z. The chuck is 8 in on an A2-6 nose and bar capacity is 65 mm (2.56 in).

03 What are the spindle figures?

The main spindle is listed at 5,000 rpm and 22 kW (30 hp). The milling spindle is listed at 12,000 rpm and 18.5 kW (25 hp) with an HSK-63 taper, and a 20,000 rpm version is an option. Rapids are listed at 50 m/min (1,969 ipm) in X and Z and 40 m/min (1,575 ipm) in Y.

04 Does the i-200 have a second spindle?

No second spindle speed, power or chuck size is given in the table, and the C axis row reads 360° continuous without mentioning a second spindle. If finishing the back of a part in the same cycle matters, confirm the actual configuration of the machine being offered before assuming it.
