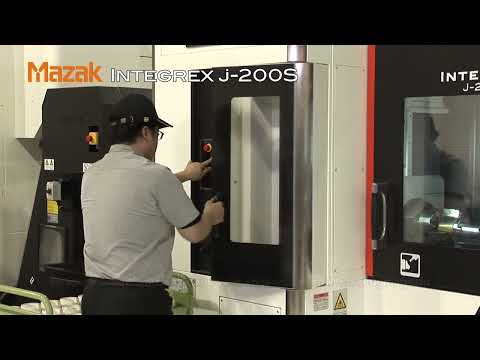

Mazak INTEGREX j-200S

Est. $180,000 - $240,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

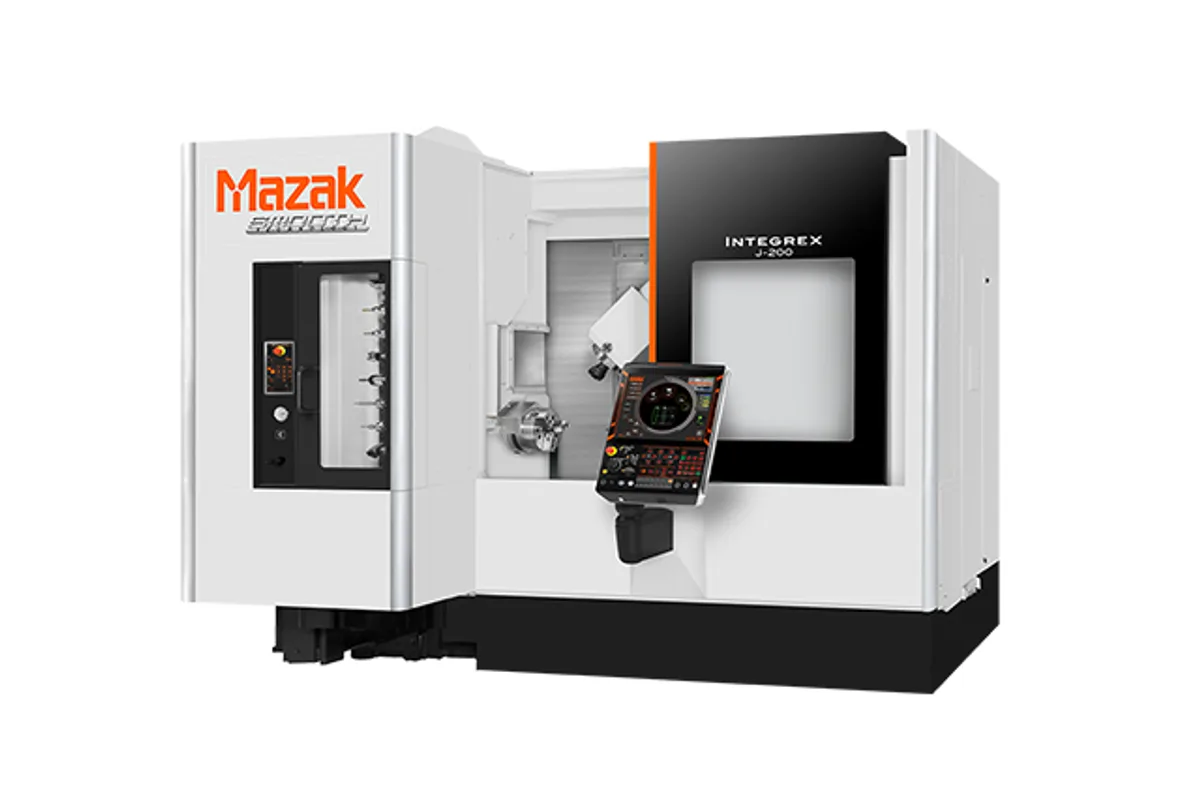

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

18 in (457 mm)

Y Travel

8 in (203 mm)

Z Travel

38 in (965 mm)

Max Spindle

5,000 rpm

Spindle Taper

HSK-A63

Tool Capacity

20 tools

How much does the Mazak INTEGREX j-200S cost?

Estimated price range

Est.$180,000 - $240,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX j-200S is the second-spindle model of the INTEGREX j series, built on a 1000U bed with a Ø20 in (508 mm) maximum turning diameter and 36 in (914 mm) of turning length. Both spindles run to 5,000 rpm and carry the same rating, 7.5 kW (10 HP) continuous and 11 kW (15 HP) (40% ED). Mazak describes the second spindle as a built-in motor spindle equivalent to the main one.

Equal spindles change how work is split. A part can be roughed and finished on either end at the same cutting data, and the handover between spindles keeps the part's angular phase, which Mazak points to as a saving in setup time for workpieces that need phase alignment. Cross holes, flats and keyways cut in the first operation therefore stay in register with features cut after the transfer.

Z travel is 38 in (965 mm) to serve both chucks, against 22 in (559 mm) on the single-spindle INTEGREX j-200. X is 18 in (457 mm) and Y is 8 in (203 mm), with 1,575 ipm (40 m/min) rapids on all three axes. One 12,000 rpm HSK-A63 milling spindle works at both ends, rated 5.5 kW (7 HP) continuous and 7.5 kW (10 HP) (40% ED), with 16 Nm (12 ft-lb) continuous and 20.3 Nm (15 ft-lb) (40% ED) of torque. The table gives a B-axis range of -30° to +210°.

All tools for both spindles come from one 20-tool magazine, so the tool list for the two operations has to be planned together. Tools may be up to Ø5 in (127 mm), 8 in (203 mm) long and 11 lb (5 kg). The longer bed shows in the installation figures: 149 in (3,785 mm) × 101 in (2,565 mm) of floor and 20,282 lb (9,200 kg).

Full Specifications

Parameter	Value
Bed Length Type	1000U
Max Turning Diameter	Ø20 in (508 mm)
Max Turning Length	36 in (914 mm)
Max Spindle Speed	5,000 rpm
Spindle Power Intermittent	11 kW (15 HP) (40% ED)
Spindle Motor Power	7.5 kW (10 HP) continuous
Sub Spindle Speed	5,000 rpm
Sub Spindle Power Intermittent	11 kW (15 HP) (40% ED)
Sub Spindle Power	7.5 kW (10 HP) continuous
Milling Spindle Speed	12,000 rpm
Milling Spindle Torque Intermittent	20.3 Nm (15 ft-lb) (40% ED)
Milling Spindle Torque	16 Nm (12 ft-lb) continuous
Milling Spindle Power Intermittent	7.5 kW (10 HP) (40% ED)
Milling Spindle Power	5.5 kW (7 HP) continuous
Spindle Taper	HSK-A63
Tool Capacity	20 tools
Max Tool Diameter (full magazine)	Ø5 in (127 mm)
Max Tool Length	8 in (203 mm)
Max Tool Weight	11 lb (5 kg)
X-Axis Travel	18 in (457 mm)
Y-Axis Travel	8 in (203 mm)
Z-Axis Travel	38 in (965 mm)
B Axis Range	-30° - +210°
Rapid Traverse X	1,575 ipm (40 m/min)
Rapid Traverse Y	1,575 ipm (40 m/min)
Rapid Traverse Z	1,575 ipm (40 m/min)
Floor Space Required	149 in (3,785 mm) × 101 in (2,565 mm) (W × L)
Machine Height	94 in (2,388 mm)
Machine Weight	20,282 lb (9,200 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Second spindle matches the main spindle: 5,000 rpm, 7.5 kW (10 HP) continuous and 11 kW (15 HP) (40% ED) on each
36 in (914 mm) of turning length and 38 in (965 mm) of Z travel on the 1000U bed
Spindle-to-spindle transfer holds part phase, which Mazak cites as a setup-time saving on phase-aligned workpieces
B-axis range of -30° to +210° lets the one milling spindle reach work held in either chuck
12,000 rpm HSK-A63 milling spindle with 1,575 ipm (40 m/min) rapids on X, Y and Z

Limitations

One 20-tool magazine serves both spindles, so two operations share the same 20 pockets
Milling torque is 16 Nm (12 ft-lb) continuous and 20.3 Nm (15 ft-lb) (40% ED)
Each turning spindle is 7.5 kW (10 HP) continuous; the INTEGREX j-200S NEO lists 11 kW (15 HP) continuous on its main spindle
Mazak's series text describes 5-degree B-axis indexing from -30° to 190° and carries a footnote specific to this model, while the table gives -30° to +210°: confirm the indexing increment and range before quoting angled work
Needs 149 in (3,785 mm) × 101 in (2,565 mm) of floor and weighs 20,282 lb (9,200 kg)

Best For

Parts machined complete on both ends with a spindle-to-spindle transfer Workpieces whose features must stay phase-aligned across two operations Shaft work up to 36 in (914 mm) long within a Ø20 in (508 mm) turning diameter Jobs whose two operations fit a shared 20-tool magazine

Frequently Asked Questions

01 Is the second spindle on the INTEGREX j-200S as powerful as the main spindle?

Yes. The table gives both spindles 5,000 rpm, 7.5 kW (10 HP) continuous and 11 kW (15 HP) (40% ED). Mazak describes the second spindle as a built-in motor spindle equivalent to the main spindle, so the second operation does not have to be programmed around a weaker motor.

02 How long a part can the INTEGREX j-200S turn?

Maximum turning length is 36 in (914 mm) and maximum turning diameter is Ø20 in (508 mm), on Mazak's 1000U bed. Z travel is 38 in (965 mm). The single-spindle INTEGREX j-200 lists a 20 in (508 mm) turning length and 22 in (559 mm) of Z.

03 What is the B-axis range of the INTEGREX j-200S?

The table for this model gives -30° to +210°. Mazak's series description speaks of 5-degree indexing from -30° to 190° and adds a footnote about indexing that applies only to the INTEGREX j-200S. Because those statements do not line up neatly, ask Mazak for the indexing increment on this model before committing to angled features.

04 How many tools does the INTEGREX j-200S carry?

The table lists 20 tools on an HSK-A63 taper, up to Ø5 in (127 mm) in diameter, 8 in (203 mm) long and 11 lb (5 kg). Mazak's series description gives 36 or 72 tool magazines as options. Since one magazine feeds work at both spindles, the larger magazines deserve a look for any two-operation job.

05 How much space does the INTEGREX j-200S take up?

The footprint is 149 in (3,785 mm) × 101 in (2,565 mm), the height is 94 in (2,388 mm) and the weight is 20,282 lb (9,200 kg). The INTEGREX j-200, which has no second spindle, weighs 16,314 lb (7,400 kg).
