Mazak INTEGREX e-RAMTEC

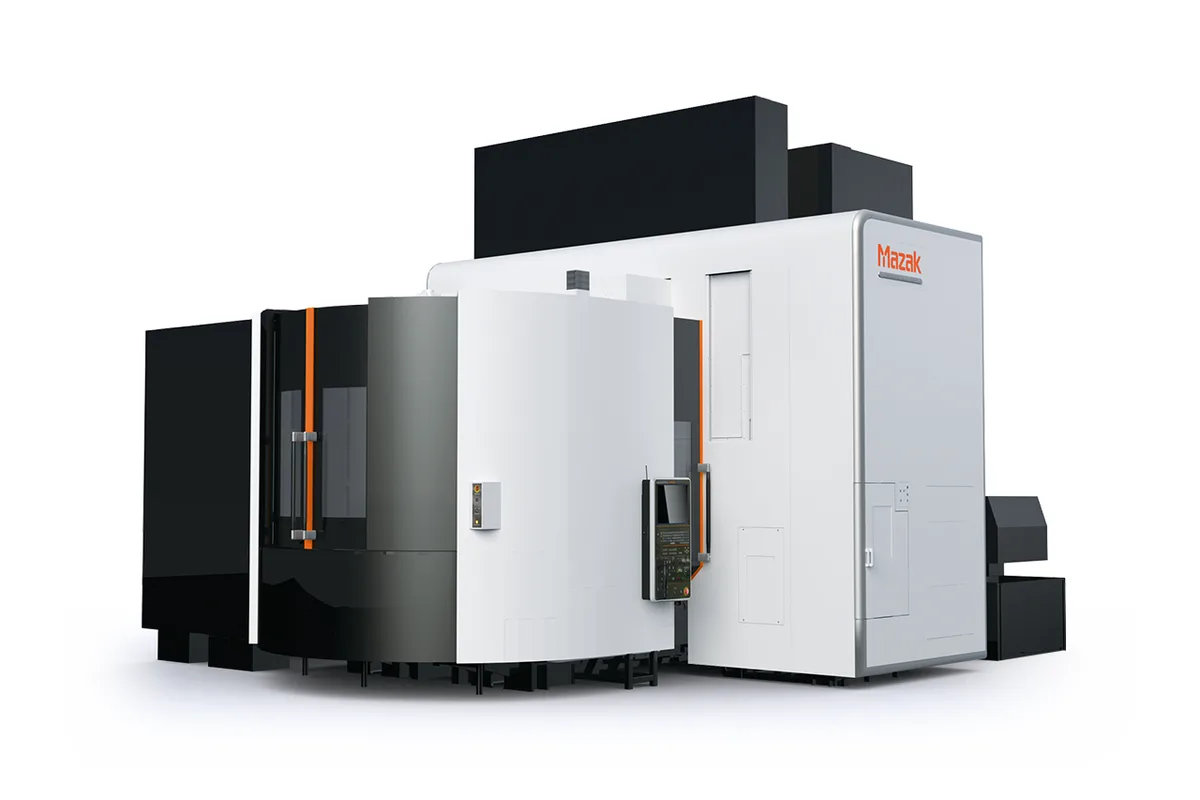

Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Y Travel
Z Travel
Spindle Taper
Tool Capacity
models in series
How much does the Mazak INTEGREX e-RAMTEC cost?
Estimated price range
Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak INTEGREX e-RAMTEC series is a double-column multi-tasking machine with an extra vertical spindle: a ram, mounted next to the B-axis milling spindle, with 35.43 in of vertical stroke for turning and milling deep inside a bore. Mazak lists three models, the INTEGREX e-RAMTEC V/8, V/10 and V/12.
The ram exists for inner diameters that a tool in the milling spindle cannot reach, however long the tool. It has its own automatic tool changer and a dedicated magazine for 40 turning and milling tools, which also allows a change to spare tools during long jobs. The milling spindle beside it is CAT No.50 at 10,000 rpm, with 30 kW (40 HP) continuous and 191 Nm (141 ft-lb) continuous, on a B-axis with 150° of travel that a roller gear cam indexes in 0.0001° increments.
The table is the turning spindle. Maximum turning diameter runs from Ø49 in (1,245 mm) to Ø93 in (2,362 mm) and table load from 5,952 lb (2,700 kg) to 15,432 lb (7,000 kg). Table speed is 250 rpm to 500 rpm and continuous torque 2,167 Nm (1,598 ft-lb) to 5,307 Nm (3,914 ft-lb), depending on the model. The C-axis positions in 0.0001° increments.
The INTEGREX e-RAMTEC V/8 is the smallest: Ø49 in (1,245 mm) of turning diameter, 74 in (1,880 mm) of X, 42 in (1,067 mm) of Y, 63 in (1,600 mm) of Z and 101,413 lb (46,000 kg). The series reaches 120 in (3,048 mm) of X and 67 in (1,702 mm) of Y, at up to 192,243 lb (87,200 kg) and 248 in (6,299 mm) tall. Set against the INTEGREX e-1250V/8, which has the same 74 in (1,880 mm) of X and 5,952 lb (2,700 kg) table load, the INTEGREX e-RAMTEC V/8 has less Y and more Z: 63 in (1,600 mm) of Z against 53 in (1,346 mm).
A 2-pallet changer exchanges pallets loaded with heavy workpieces, and an optional workpiece centering tool helps with the alignment that turning requires. Mazak's TOOL HIVE rack magazine stores over 180 tools and can be expanded after installation.
Full Specifications
| Parameter | Value |
|---|---|
| Models in Series | 3 models: INTEGREX e-RAMTEC V/8, INTEGREX e-RAMTEC V/10, INTEGREX e-RAMTEC V/12 |
| Max Turning Diameter | Ø49 in (1,245 mm) to Ø93 in (2,362 mm) |
| Max Table Load | 5,952 lb (2,700 kg) to 15,432 lb (7,000 kg) |
| Table Max Spindle Speed | 250 rpm to 500 rpm |
| Table Max Torque 40 Pct Ed | 2,954 Nm (2,179 ft-lb) (40% ED) to 6,546 Nm (4,828 ft-lb) (40% ED) |
| Table Max Torque Cont Rating | 2,167 Nm (1,598 ft-lb) (cont. rating) to 5,307 Nm (3,914 ft-lb) (cont. rating) |
| Table Spindle Motor 40 Pct Ed | 37 kW (50 HP) (40% ED) |
| Table Spindle Motor Cont Rating | 30 kW (40 HP) (cont. rating) to 45 kW (60 HP) (cont. rating) |
| Table Rapid Traverse Rate C Axis | 7 rpm to 18 rpm |
| Table Min Indexing Angle Increment C Axis | 0.0001° |
| Milling Spindle Speed | 10,000 rpm |
| Milling Spindle Torque Intermittent | 260 Nm (192 ft-lb) (40% ED) |
| Milling Spindle Torque | 191 Nm (141 ft-lb) continuous |
| Milling Spindle Power Intermittent | 37 kW (50 HP) (40% ED) |
| Milling Spindle Power | 30 kW (40 HP) continuous |
| Milling Spindle Min Indexing Angle Increment B Axis | 0.0001° |
| Spindle Taper | CAT No.50 |
| Tool Capacity | 40 tools |
| Max Tool Diameter (full magazine) | Ø5 in (127 mm) |
| Max Tool Diameter (adjacent pockets empty) | Ø10 in (254 mm) |
| Max Tool Length | 26 in (660 mm) |
| Max Tool Weight | 66 lb (30 kg) |
| X-Axis Travel | 74 in (1,880 mm) to 120 in (3,048 mm) |
| Y-Axis Travel | 42 in (1,067 mm) to 67 in (1,702 mm) |
| Z-Axis Travel | 57 in (1,448 mm) to 71 in (1,803 mm) |
| B Axis Range | 150° |
| C Axis Range | 360° |
| Rapid Traverse X | 1,575 ipm (40 m/min) to 1,654 ipm (42 m/min) |
| Rapid Traverse Y | 1,575 ipm (40 m/min) to 1,654 ipm (42 m/min) |
| Rapid Traverse Z | 1,575 ipm (40 m/min) to 1,654 ipm (42 m/min) |
| Machine Height | 203 in (5,156 mm) to 248 in (6,299 mm) |
| Machine Weight | 101,413 lb (46,000 kg) to 192,243 lb (87,200 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Ram spindle with 35.43 in of vertical stroke for deep inner-diameter turning and milling
- Dedicated ram magazine for 40 turning and milling tools with automatic tool change
- Turning table with up to 5,307 Nm (3,914 ft-lb) at continuous rating and 6,546 Nm (4,828 ft-lb) at 40% ED
- Maximum turning diameters from Ø49 in (1,245 mm) to Ø93 in (2,362 mm)
- B-axis milling spindle with 150° of travel, 10,000 rpm and 30 kW (40 HP) continuous
- 2-pallet changer for heavy workpieces, and TOOL HIVE storage for over 180 tools
Limitations
- Machines stand 203 in (5,156 mm) to 248 in (6,299 mm) tall and weigh 101,413 lb (46,000 kg) or more
- The INTEGREX e-RAMTEC V/8 turns Ø49 in (1,245 mm) with 42 in (1,067 mm) of Y, less than the Ø57 in (1,448 mm) and 49 in (1,245 mm) of the INTEGREX e-1250V/8
- Table speed is 250 rpm to 500 rpm, so small diameters are turned at low surface speed
- The 5,000 rpm and 15,000 rpm milling spindles and the workpiece centering tool are options
- Tools are limited to 26 in (660 mm) in length and 66 lb (30 kg)
Best For
Frequently Asked Questions
01
It is a second vertical spindle mounted next to the milling spindle, with a vertical stroke of 35.43 in. Mazak describes it as performing deep inner diameter turning and milling that cannot be machined even with long tools. The ram has an automatic tool changer and a dedicated magazine prepared for 40 turning and milling tools.
02
Mazak lists the INTEGREX e-RAMTEC V/8, V/10 and V/12. X travel runs from 74 in (1,880 mm) to 120 in (3,048 mm), Y from 42 in (1,067 mm) to 67 in (1,702 mm) and Z from 57 in (1,448 mm) to 71 in (1,803 mm). Maximum turning diameter is Ø49 in (1,245 mm) to Ø93 in (2,362 mm), and machine weight 101,413 lb (46,000 kg) to 192,243 lb (87,200 kg).
03
Both the INTEGREX e-RAMTEC V/8 and the INTEGREX e-1250V/8 have 74 in (1,880 mm) of X, a 5,952 lb (2,700 kg) table load and 1,654 ipm (42 m/min) rapids. The INTEGREX e-RAMTEC V/8 has 63 in (1,600 mm) of Z where the INTEGREX e-1250V/8 has 53 in (1,346 mm), but its Y is 42 in (1,067 mm) against 49 in (1,245 mm) and its turning diameter Ø49 in (1,245 mm) against Ø57 in (1,448 mm). The INTEGREX e-RAMTEC V/8 weighs 101,413 lb (46,000 kg) and the INTEGREX e-1250V/8 109,127 lb (49,499 kg).
04
Table speed is 250 rpm to 500 rpm depending on the model. Maximum torque runs from 2,954 Nm (2,179 ft-lb) to 6,546 Nm (4,828 ft-lb) at 40% ED and from 2,167 Nm (1,598 ft-lb) to 5,307 Nm (3,914 ft-lb) at continuous rating. C-axis rapid rotation is 7 rpm to 18 rpm, and the C-axis indexes in 0.0001° increments over 360°.
05
The standard milling spindle is a built-in motor unit at 10,000 rpm on CAT No.50, rated 30 kW (40 HP) continuous and 37 kW (50 HP) at 40% ED, with 191 Nm (141 ft-lb) continuous and 260 Nm (192 ft-lb) at 40% ED. A 5,000 rpm spindle for high-torque machining of difficult materials and a 15,000 rpm spindle are optional.
06
The table lists 40 tools, with a maximum diameter of Ø5 in (127 mm), or Ø10 in (254 mm) when adjacent pockets are empty, a maximum length of 26 in (660 mm) and a maximum weight of 66 lb (30 kg). For larger tool sets Mazak offers TOOL HIVE, a rack-type magazine with storage for over 180 tools that can be expanded after the first installation.
