Matsuura H.Plus-504

$375,000 - $525,000 Updated 2026-03-19

Key Specifications

X Travel

730 mm (28.7 in)

Y Travel

730 mm (28.7 in)

Z Travel

680 mm (26.8 in)

Max Spindle

12,000 RPM (optional 15,000 RPM)

Spindle Taper

BT40 (HSK-A63 optional)

Tool Capacity

40 standard (60, 90, 120 optional)

Overview

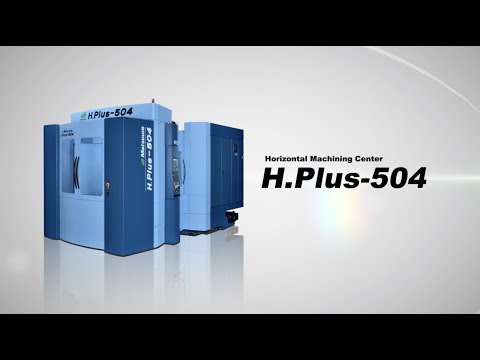

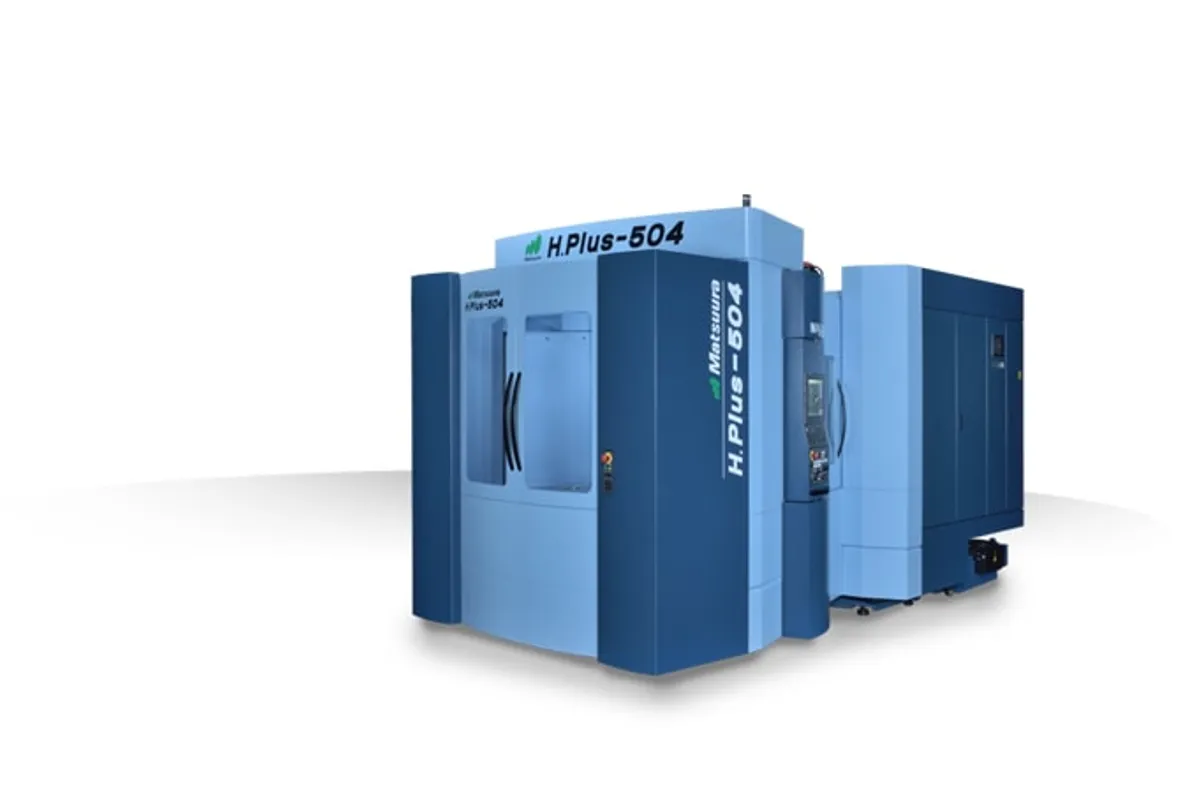

The Matsuura H.Plus-504 is a high-performance 500mm-class horizontal machining center and the 4th-generation evolution of Matsuura's 500 mm pallet HMC platform. The 04 designation signifies updated design improvements over the base H.Plus-500, including enhanced thermal stability, improved chip evacuation, and refined control software. The machine addresses the same core market as the H.Plus-500 but with incremental improvements to productivity and accuracy that matter in high-volume production environments.

Axis travel measures 730 x 730 x 680 mm (28.7 x 28.7 x 26.8 in) on X/Y/Z, identical to the H.Plus-500. The 500 x 500 mm (19.7 x 19.7 in) pallet supports up to 500 kg (1,102 lb) of workpiece and fixture weight. The standard BT40 spindle delivers 12,000 RPM with 22 kW (30 hp), with optional 15,000 RPM high-speed and HSK-A63 configurations. Rapid traverse is 50 m/min on all axes. The direct-drive B-axis rotary table provides 360-degree indexing in 0.001-degree increments for precise multi-sided access.

The H.Plus-504 retains the box-way construction that defines the H.Plus series, delivering excellent rigidity and vibration damping for heavy cuts in cast iron and steel. Matsuura's enhanced Thermal Displacement Control system uses multiple thermal sensors to compensate for spindle and structural temperature changes in real-time, maintaining positioning accuracy during long production runs. The standard 40-tool magazine is expandable to 60, 90, or 120 positions.

The 504 runs on the latest version of Matsuura's G-Tech 31i control with an updated touchscreen interface, improved diagnostics, and enhanced network connectivity for Industry 4.0 integration. Standard 2-pallet APC expands to multi-pallet LPP configuration. The H.Plus-504 competes with the Mazak HCN-5000, Okuma MB-5000HII, and DMG Mori NHX 5000 2nd Generation in the fiercely competitive 500 mm HMC segment.

Full Specifications

Parameter	Value
X-Axis Travel	730 mm (28.7 in)
Y-Axis Travel	730 mm (28.7 in)
Z-Axis Travel	680 mm (26.8 in)
Pallet Size	500 x 500 mm (19.7 x 19.7 in)
Max Spindle Speed	12,000 RPM (optional 15,000 RPM)
Spindle Taper	BT40 (HSK-A63 optional)
Spindle Motor Power	22 kW (30 hp)
Spindle Torque	150 Nm
Tool Capacity	40 standard (60, 90, 120 optional)
Pallet Capacity	2 standard (LPP multi-pallet optional)
Table Load Capacity	500 kg (1,102 lb)
Rapid Traverse Xyz	50 m/min (1,969 ipm)
B Axis Indexing	0.001 deg (full 360 deg, direct-drive)
Pallet Change Time	8 sec
Tool Change Time	1.0 sec (tool-to-tool)
Through Spindle Coolant	20 bar standard (70 bar optional)
Thermal Control	Enhanced Thermal Displacement Control
Machine Weight	9,800 kg (21,605 lb)
Floor Space Required	3,800 x 3,500 mm
CNC Control	Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen)
Mx Series	MAM72 Series
Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4	MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H
Max Work Sizemm	Ø800×H1,000 \| (Ø31.49×H39.37)
Spindle Speedrpm	12,000:BT40Standard\| 15,000:BT40Option\| 20,000:BT40Option
Travel Mm	730/730/800 \| (28.74/28.74/31.49)
Industriesautomotive And High Performance	TechnologyHorizontal Machining Centers ›

Specifications sourced from matsuurausa.com — verified 2026-03-28
