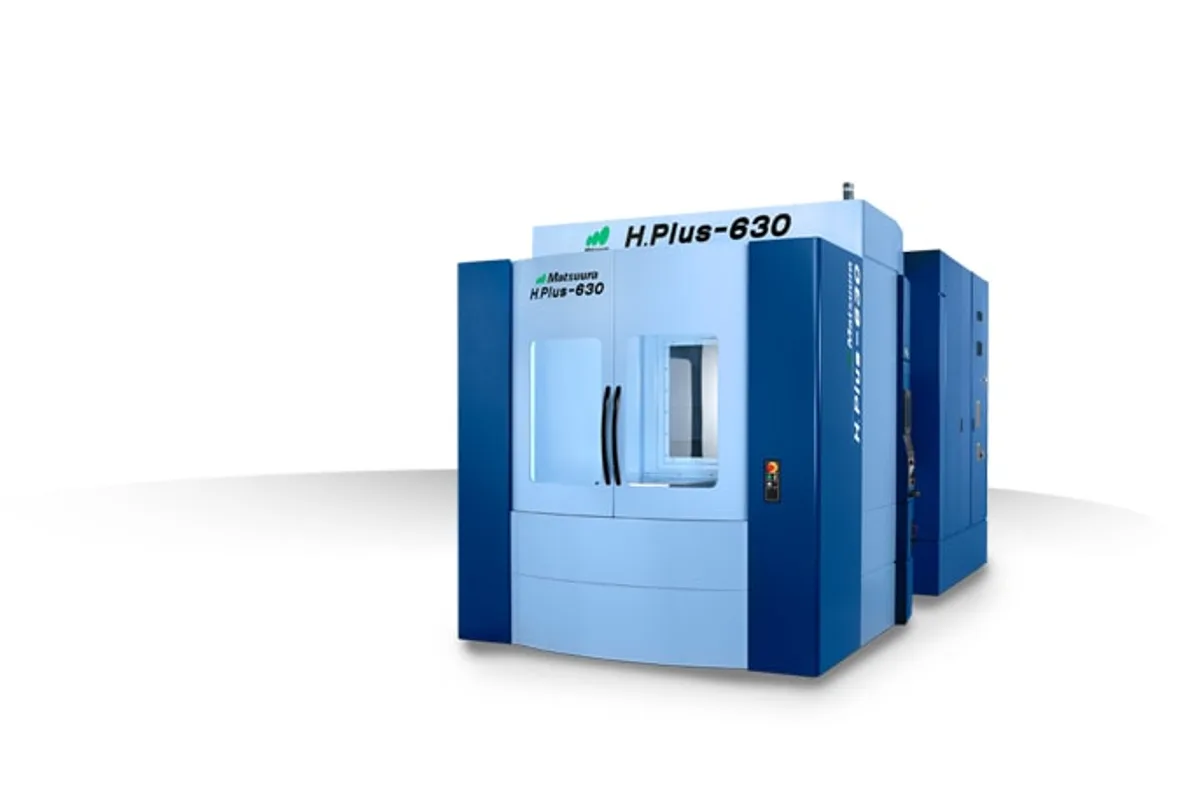

Matsuura H.Plus-630
Image: matsuurausa.com, Matsuura
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Rapid Traverse
How much does the Matsuura H.Plus-630 cost?
Estimated price range
Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Matsuura. Configuration moves it a long way.
Overview
The Matsuura H.Plus-630 is the largest H.Plus horizontal machining center, built on a 630 x 630 mm (24.8 x 24.8 in) pallet with 1,050 mm (41.3 in) of X, 920 mm (36.2 in) of Y and 990 mm (39.0 in) of Z. Parts up to Ø 1,050 × H 1,115 mm (Ø 41.33 × H 43.89 in) fit, so this is the machine in the line for big castings, large valve and pump bodies, and tall tombstones.
The spindle is BT50 Big Plus, 12,000 rpm as standard, with a 10,000 rpm BT50 version and a 15,000 rpm BT50 version as options. Tool holders are listed as SK50 / BT50 / HSK100. A 10,000 rpm option below the standard speed usually signals a spindle traded for torque, but the table gives no power or torque for either, so ask for both curves.
The B axis is a direct drive rated at 100 RPM max, with 1° indexing standard and a continuous 4th axis as an option. Without that option the machine positions in whole degrees, which suits square faces but not contoured work in B.
Tooling scales a long way: 60 tools as standard and up to 330 with the matrix magazine. Through-spindle coolant is 20 bar as standard and 70 bar as an option.
Against the MAM72-100H, which shares the 1,050 mm (41.3 in) X and 920 mm (36.2 in) Y but uses a 1,000 x 1,000 mm (39.4 x 39.4 in) pallet and lists 30 / 37 kW (40 / 50 hp) and 500 Nm, the H.Plus-630 is the choice when 630 mm pallets and a taller Z of 990 mm (39.0 in) suit the work better.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,050 mm (41.3 in) |
| Y-Axis Travel | 920 mm (36.2 in) |
| Z-Axis Travel | 990 mm (39.0 in) |
| Pallet Size | 630 x 630 mm (24.8 x 24.8 in) |
| Spindle Taper | BT50 Big Plus |
| Rapid Traverse Rate | 50 m/min (1,968 ipm) all axes |
| Tool Capacity Standard | 60 |
| Tool Capacity Max | 330 (matrix magazine) |
| Rotary Table | Direct-drive B-axis, 100 RPM max |
| X Axis | 60/60 m/min |
| Y Axis | 60/60 m/min |
| Z Axis | 60/60 m/min |
| Working Surface | 630 x 630 mm |
| Max Spindle Speed | 12,000 rpm BT50 (standard); 10,000 rpm BT50 (optional); 15,000 rpm BT50 (optional) |
| Tool Holder | SK50 / BT50 / HSK100 |
| Max Workpiece Size | Ø 1,050 × H 1,115 mm (Ø 41.33 × H 43.89 in) |
| Through Spindle Coolant | 20 bar standard (70 bar optional) |
| B Axis Indexing | 1° indexing (continuous 4th axis optional) |
Specifications sourced from matsuurausa.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 1,050 mm (41.3 in) X, 920 mm (36.2 in) Y and 990 mm (39.0 in) Z on a 630 x 630 mm (24.8 x 24.8 in) pallet
- Part envelope of Ø 1,050 × H 1,115 mm (Ø 41.33 × H 43.89 in)
- BT50 Big Plus spindle at 12,000 rpm, with 10,000 rpm and 15,000 rpm options
- 60 tools as standard, up to 330 with the matrix magazine
- Direct-drive B axis at 100 RPM max, with a continuous 4th axis optional
Limitations
- B indexes in 1° steps as standard; continuous contouring in B is an option
- No spindle power, torque or pallet load is listed
- The rapid rows disagree: 50 m/min (1,968 ipm) all axes in one row, 60/60 m/min per axis in others
- A 50-taper machine needs BT50, SK50 or HSK100 tooling, a tooling change for shops not already using them
Best For
Frequently Asked Questions
01
Up to Ø 1,050 × H 1,115 mm (Ø 41.33 × H 43.89 in), on a 630 x 630 mm (24.8 x 24.8 in) pallet. Travels are 1,050 mm (41.3 in) X, 920 mm (36.2 in) Y and 990 mm (39.0 in) Z. The table lists no pallet load, so confirm the weight limit for heavy castings.
02
BT50 Big Plus throughout: 12,000 rpm as standard, with 10,000 rpm and 15,000 rpm BT50 options. Tool holders are listed as SK50 / BT50 / HSK100. Power and torque are not given, so compare the 10,000 rpm and 12,000 rpm spindles on their curves.
03
The B axis is a direct drive at 100 RPM max with 1° indexing as standard. A continuous 4th axis is an option, and is needed for contouring or helical work in B rather than positioning between faces.
04
60 as standard, and up to 330 with the matrix magazine. On a cell running many part numbers, the matrix magazine keeps every job's tools loaded at once.
05
The H.Plus-500 has 800 mm (31.5 in) of travel on all axes, a 500 x 500 mm (19.7 x 19.7 in) pallet and parts up to Ø 850 × H 1,050 mm. The H.Plus-630 moves to a 630 x 630 mm (24.8 x 24.8 in) pallet, 1,050 mm (41.3 in) of X and a BT50 Big Plus spindle.
