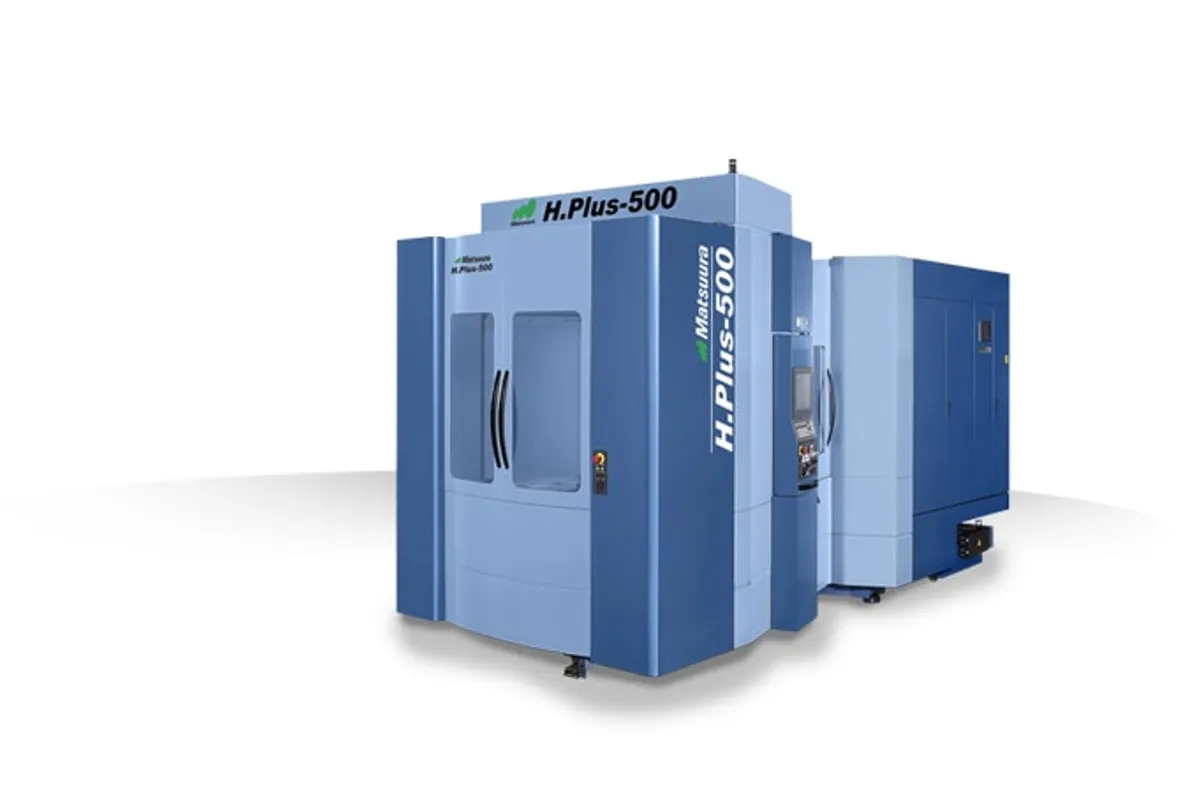

Matsuura H.Plus-500

$350,000 - $500,000 Updated 2026-03-19

Key Specifications

X Travel

730 mm (28.7 in)

Y Travel

730 mm (28.7 in)

Z Travel

680 mm (26.8 in)

Max Spindle

12,000 RPM (optional 15,000 RPM)

Spindle Taper

BT40 (HSK-A63 optional)

Tool Capacity

40 standard (60, 90, 120 optional)

Overview

The Matsuura H.Plus-500 is a 500mm-class horizontal machining center that occupies the critical middle ground in Matsuura's H.Plus HMC lineup, slotting between the compact H.Plus-405 and the larger H.Plus-630. With a 500 x 500 mm pallet, the machine addresses the broadest segment of horizontal machining work — automotive powertrain components, hydraulic manifolds, pump housings, and general industrial prismatic parts that are too large for a 400 mm pallet but do not require the 630 mm envelope.

Axis travel measures 730 x 730 x 680 mm (28.7 x 28.7 x 26.8 in) on X/Y/Z, providing a generous work envelope relative to the pallet size. The standard spindle is a BT40 taper running at 12,000 RPM with 22 kW (30 hp) of power. A 15,000 RPM high-speed option is available for aluminum-intensive applications, and HSK-A63 tooling can be specified for improved high-speed rigidity and repeatability. Rapid traverse runs at 50 m/min on all linear axes, keeping non-cutting time to a minimum during positioning moves.

The H.Plus-500 uses box-way construction on all axes for maximum rigidity and vibration damping during heavy interrupted cuts. The standard tool magazine holds 40 tools, expandable to 60, 90, or 120 positions for extended unmanned operation. Tool-to-tool change time is 1.0 seconds, and pallet change completes in 8 seconds. Through-spindle coolant runs at 20 bar standard with a 70 bar high-pressure option for deep-hole drilling. Table load capacity is 500 kg (1,102 lb). The B-axis indexes in 1-degree increments through a full 360 degrees via a direct-drive rotary table.

The machine runs on Matsuura's G-Tech 31i control (FANUC 31i-B5 based) with a touchscreen interface that provides the same user experience found across the H.Plus lineup. Standard 2-pallet configuration can be expanded to multi-pallet cells through the Linear Pallet Pool (LPP) system. At approximately 9,500 kg (20,944 lb), the H.Plus-500 is a substantial machine that competes directly with the Mazak HCN-5000, Okuma MB-5000H, Makino a61nx, and DMG Mori NHX 5000 in one of the most hotly contested segments of the HMC market.

Full Specifications

Parameter	Value
X-Axis Travel	730 mm (28.7 in)
Y-Axis Travel	730 mm (28.7 in)
Z-Axis Travel	680 mm (26.8 in)
Pallet Size	500 x 500 mm (19.7 x 19.7 in)
Max Spindle Speed	12,000 RPM (optional 15,000 RPM)
Spindle Taper	BT40 (HSK-A63 optional)
Spindle Motor Power	22 kW (30 hp)
Spindle Torque	150 Nm
Tool Capacity	40 standard (60, 90, 120 optional)
Pallet Capacity	2 standard (LPP multi-pallet optional)
Table Load Capacity	500 kg (1,102 lb)
Rapid Traverse Xyz	50 m/min (1,969 ipm)
B Axis Indexing	1 deg (full 360 deg, direct-drive)
Pallet Change Time	8 sec
Tool Change Time	1.0 sec (tool-to-tool)
Through Spindle Coolant	20 bar standard (70 bar optional)
Machine Weight	9,500 kg (20,944 lb)
Floor Space Required	3,800 x 3,500 mm
CNC Control	Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen)
Mx Series	MAM72 Series
Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4	MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H
Max Work Sizemm	Ø850×H1,050 \| (Ø33.46×H41.33)
Spindle Speedrpm	12,000:BT50Standard\| 15,000:BT50Option
Travel Mm	800/800/800 \| (31.49/31.49/31.49)
Hplus 500	H.Plus-500
Industriesautomotive And High Performance	TechnologyHorizontal Machining Centers ›

Specifications sourced from matsuurausa.com — verified 2026-03-28

Strengths & Limitations

Strengths

500 mm pallet size covers the broadest range of horizontal machining work without the floor space demands of a 630 mm class machine
Box-way construction on all axes provides excellent rigidity and vibration damping for heavy interrupted cuts in cast iron and steel
Direct-drive B-axis eliminates backlash for accurate indexing and contouring on multi-sided parts
Scalable from 2-pallet to multi-pallet LPP cell configuration, allowing the machine to grow with production demands
1.0-second tool-to-tool and 8-second pallet change times minimize non-cutting time in high-volume production
Matsuura G-Tech 31i touchscreen control provides consistent user experience across the entire H.Plus family

Limitations

BT40 spindle limits aggressive roughing capability compared to BT50 competitors in the 500 mm pallet class
Matsuura's North American HMC market presence is smaller than Mazak, Makino, or Okuma, affecting resale value and parts availability in some regions
Standard 40-tool magazine may require upgrading for high-mix production requiring frequent tool changes
Higher acquisition cost than comparable Korean or Taiwanese 500 mm HMCs, though build quality and longevity justify the premium

Best For

Automotive Tier 1-2 suppliers running production volumes of powertrain housings, transmission cases, and engine components on tombstone fixtures Hydraulic and pneumatic component manufacturers machining valve bodies and manifold blocks requiring multi-sided horizontal access Aerospace subcontractors producing medium-sized structural components and housings in aluminum and titanium alloys Job shops with mixed production that need a versatile 500 mm HMC with automation growth potential through the LPP system Production cells requiring reliable unmanned operation with expandable tool and pallet capacity for extended lights-out shifts

Frequently Asked Questions

01 What does a Matsuura H.Plus-500 cost?

New H.Plus-500 pricing typically ranges from $350,000 to $500,000 for a standard 2-pallet configuration. Adding the Linear Pallet Pool for multi-pallet automation and expanding the tool magazine to 90 or 120 positions can push the total cell cost past $650,000. Used machines in good condition trade between $150,000 and $300,000 depending on age and hours.

02 How does the H.Plus-500 compare to the Mazak HCN-5000?

Both are 500 mm pallet HMCs with BT40 spindles. The Mazak HCN-5000 has a larger installed base in North America and stronger resale market. The Matsuura H.Plus-500 differentiates itself with box-way construction versus the Mazak roller guide design, and the LPP multi-pallet system for flexible automation. Both are excellent machines. The choice often comes down to local dealer support and service response times.

03 Can the H.Plus-500 be upgraded to BT50?

No. The H.Plus-500 is designed around BT40/HSK-A63 tooling. If you need BT50 capability for heavy roughing in steel and cast iron, look at the H.Plus-630 which offers a BT50 Big Plus spindle with up to 700 Nm of torque. The H.Plus-500 compensates with adequate rigidity from its box-way design for most production applications.

04 What automation options are available for the H.Plus-500?

Standard configuration includes a 2-pallet automatic pallet changer. The Linear Pallet Pool (LPP) system expands capacity to multiple pallets for extended unmanned production. Combined with up to 120 tools in the expanded magazine, the H.Plus-500 can run overnight and weekend shifts without operator intervention.
