Koike Aronson ShopProXHD

Q: How much does the Koike Aronson ShopProXHD cost?

The price estimate for the Koike Aronson ShopProXHD is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/koike-aronson-shopproxhd#price; the request is passed to Koike Aronson or an authorised dealer.

Specs verified 2026-10-05 · koike.com Updated 2026-10-05

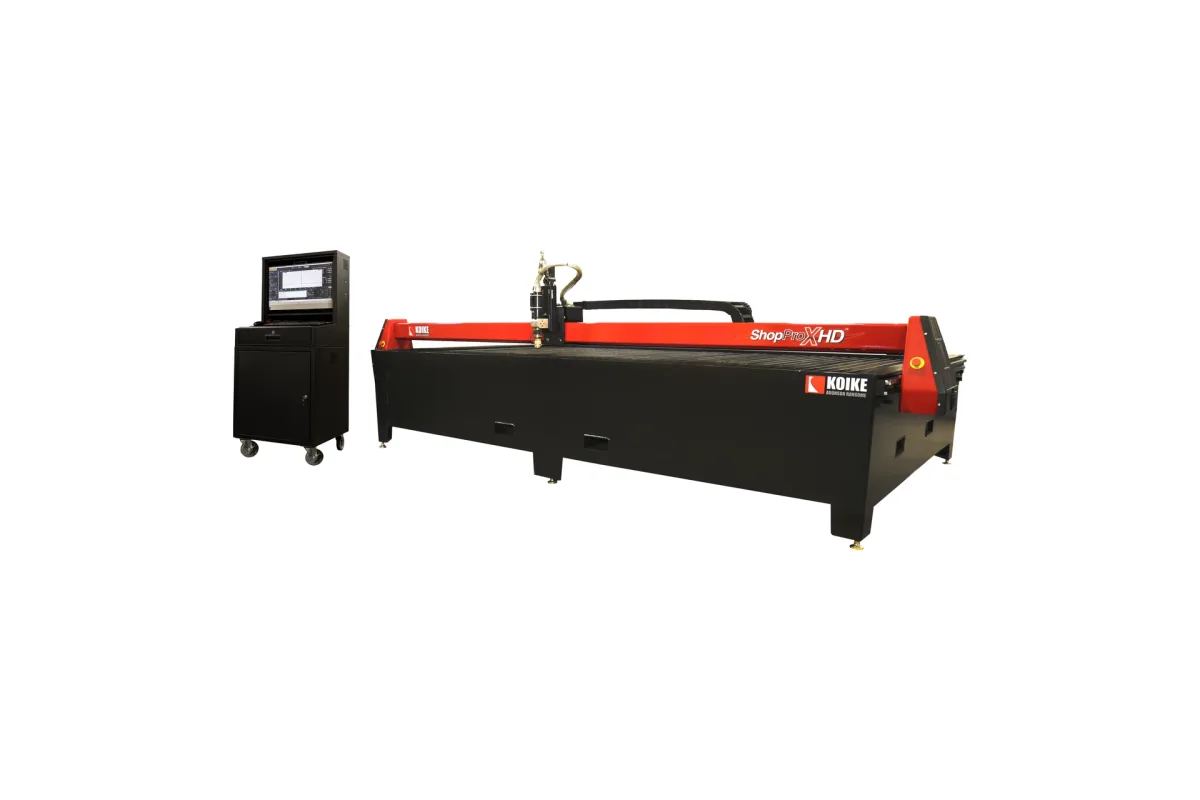

Koike Aronson ShopProXHD CNC plasma cutting table

Image: koike.com, Koike Aronson

Key Specifications

Tool Capacity

Rapid Traverse

1,000 ipm (25.4 m/min)

Repeatability

0.0015 in (0.04 mm)

effective cutting area

SPXHD-48: 4 ft x 8 ft (1.2 m x 2.4 m); SPXHD-510: 5 ft x 10 ft (1.5 m x 3.0 m); SPXHD-612: 6 ft x 12 ft (1.8 m x 3.7 m)

effective cutting width

SPXHD-48: 96 in (2,438 mm); SPXHD-510: 120 in (3,048 mm); SPXHD-612: 144 in (3,658 mm)

effective cutting length

SPXHD-48: 48 in (1,219 mm); SPXHD-510: 60 in (1,524 mm); SPXHD-612: 72 in (1,829 mm)

How much does the Koike Aronson ShopProXHD cost?

Price estimate

Uncertain

We do not have a price for the Koike Aronson ShopProXHD that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Koike Aronson ShopProXHD is the servo-driven step up from the ShopPro table, built as the SPXHD-48, SPXHD-510 and SPXHD-612. The largest has an effective cutting area of 6 ft x 12 ft (1.8 m x 3.7 m), a size the base ShopPro does not reach. Plasma systems from 45 to 200 amp are offered and the table capacity is 2 in (51 mm) of mild steel.

Weight tells most of the story. The SPXHD-510 is 4,500 lb (2,041 kg) where the ShopPro SP-510 is 3,500 lb (1,588 kg), and the water table holds 580 gallons (2,195 L) against 220 gallons (833 L). That mass sits under a gantry moved by three 550 oz-in NEMA-34 servo motors through precision helical 10:1 gearboxes, with a helical rack on both sides. Rapid traverse is 1,000 ipm (25.4 m/min) and repeatability 0.0015 in (0.04 mm).

The table can be ordered as a water table or a downdraft table. A downdraft table needs a fume collector and ducting; a water table needs 390 gallons (1,476 L) to 815 gallons (3,085 L) of water depending on size, and a floor that takes the filled weight.

Machine power is still 115/1/60 at 15 amp, with the plasma supply on its own service. A manual plasma bevel station is offered for bevels along the rail axis, adjustable mechanically from 0 to 45°, alongside the oxy-fuel torch, the pneumatic scribe and the ShopPipe attachment for pipe up to 6 in (152 mm) in diameter.

Full Specifications

Parameter	Value
Effective Cutting Area	SPXHD-48: 4 ft x 8 ft (1.2 m x 2.4 m); SPXHD-510: 5 ft x 10 ft (1.5 m x 3.0 m); SPXHD-612: 6 ft x 12 ft (1.8 m x 3.7 m)
Effective Cutting Width	SPXHD-48: 96 in (2,438 mm); SPXHD-510: 120 in (3,048 mm); SPXHD-612: 144 in (3,658 mm)
Effective Cutting Length	SPXHD-48: 48 in (1,219 mm); SPXHD-510: 60 in (1,524 mm); SPXHD-612: 72 in (1,829 mm)
Rapid Traverse Rate	1,000 ipm (25.4 m/min)
Machine Width	SPXHD-48: 132 in (3,353 mm); SPXHD-510: 156 in (3,962 mm); SPXHD-612: 180 in (4,572 mm)
Machine Length	SPXHD-48: 71 in (1,803 mm); SPXHD-510: 83 in (2,108 mm); SPXHD-612: 95 in (2,413 mm) (CNC not included)
Machine Weight	SPXHD-48: 3,850 lb (1,746 kg); SPXHD-510: 4,500 lb (2,041 kg); SPXHD-612: 5,200 lb (2,359 kg)
Tool Capacity	2
Water Capacity	SPXHD-48: 390 gallons (1,476 L); SPXHD-510: 580 gallons (2,195 L); SPXHD-612: 815 gallons (3,085 L)
Table Capacity	2 in (51 mm) mild steel
Table Type	Water or downdraft
Plasma Systems	45-200 amp plasma systems
Power Requirement	115/1/60 @ 15 amp
CNC Control	FlashCut CNC 21 in panel PC
Drive System	Servo, rack and pinion drive system
Servo Motors	(3) 550 oz-in NEMA-34
Gear Reduction	(3) precision helical 10:1 gearboxes
Linear Guidance	25 mm profile linear rail, 30 mm gantry
Gear Engagement	Direct drive helical rack and pinion
Gantry Carriage	Solid steel construction
Repeatability	0.0015 in (0.04 mm)
Frame Construction	7 gauge mild steel
Shoppipe Max Pipe Diameter	6 in (152 mm) with 1/2 in (12.7 mm) wall (optional ShopPipe attachment)

Specifications sourced from koike.com — verified 2026-10-05

Strengths & Limitations

Strengths

Servo drive: three 550 oz-in NEMA-34 servo motors through helical 10:1 gearboxes
Sizes up to the SPXHD-612 with 6 ft x 12 ft (1.8 m x 3.7 m) of effective cutting area
Plasma systems from 45 to 200 amp, including the liquid-cooled 200 amp class
Choice of water or downdraft table
Machine power stays at 115/1/60 at 15 amp

Limitations

Table capacity is 2 in (51 mm) of mild steel whatever plasma system is fitted

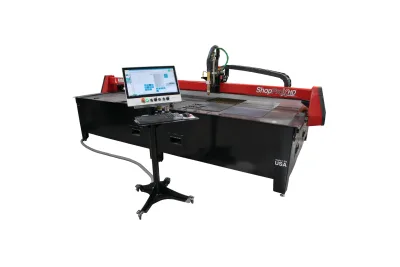

Rapid traverse is 1,000 ipm (25.4 m/min), half the 2,000 ipm (50.8 m/min) of the ShopProXHD Katana
The manual bevel station works in the rail axis only and is set mechanically, so contour bevels are not possible
Weighs 3,850 lb (1,746 kg) to 5,200 lb (2,359 kg) empty, with up to 815 gallons (3,085 L) of water on top in the water-table version

Best For

Job shops cutting plate up to 2 in on 5 x 10 or 6 x 12 ft stock Shops moving from air plasma to a 200 amp oxygen plasma system Straight weld-prep bevels along the rail axis Mixed plate and pipe work with the ShopPipe attachment

Frequently Asked Questions

01 What sizes is the ShopProXHD made in?

Three: the SPXHD-48 with 4 ft x 8 ft (1.2 m x 2.4 m) of effective cutting area, the SPXHD-510 with 5 ft x 10 ft (1.5 m x 3.0 m) and the SPXHD-612 with 6 ft x 12 ft (1.8 m x 3.7 m). Machine width runs from 132 in (3,353 mm) to 180 in (4,572 mm) and machine length, without the CNC, from 71 in (1,803 mm) to 95 in (2,413 mm).

02 Which plasma systems fit the ShopProXHD?

Koike lists 45-200 amp plasma systems for this table. The product page names the Hypertherm Powermax series and the MAXPRO200, which Koike describes as engineered for heavy-duty, high capacity automation. Table capacity remains 2 in (51 mm) of mild steel.

03 Is the ShopProXHD a water table or a downdraft table?

Either. The table type is listed as water or downdraft. Water capacity is 390 gallons (1,476 L) on the SPXHD-48, 580 gallons (2,195 L) on the SPXHD-510 and 815 gallons (3,085 L) on the SPXHD-612, which matters for floor loading and for filling and draining.

04 Can the ShopProXHD cut bevels?

Only straight ones. The optional manual plasma bevel station bevels in the rail axis, with a non-contour mechanical adjustment from 0 to 45°. Programmed contour beveling is found on Koike's gantry machines, not on this table.

05 How accurate is the ShopProXHD?

Machine repeatability is listed at 0.0015 in (0.04 mm). The motion parts behind it are 25 mm profile linear rail with a 30 mm rail on the gantry, direct drive helical rack and pinion and a solid steel gantry carriage on a 7 gauge mild steel frame.
