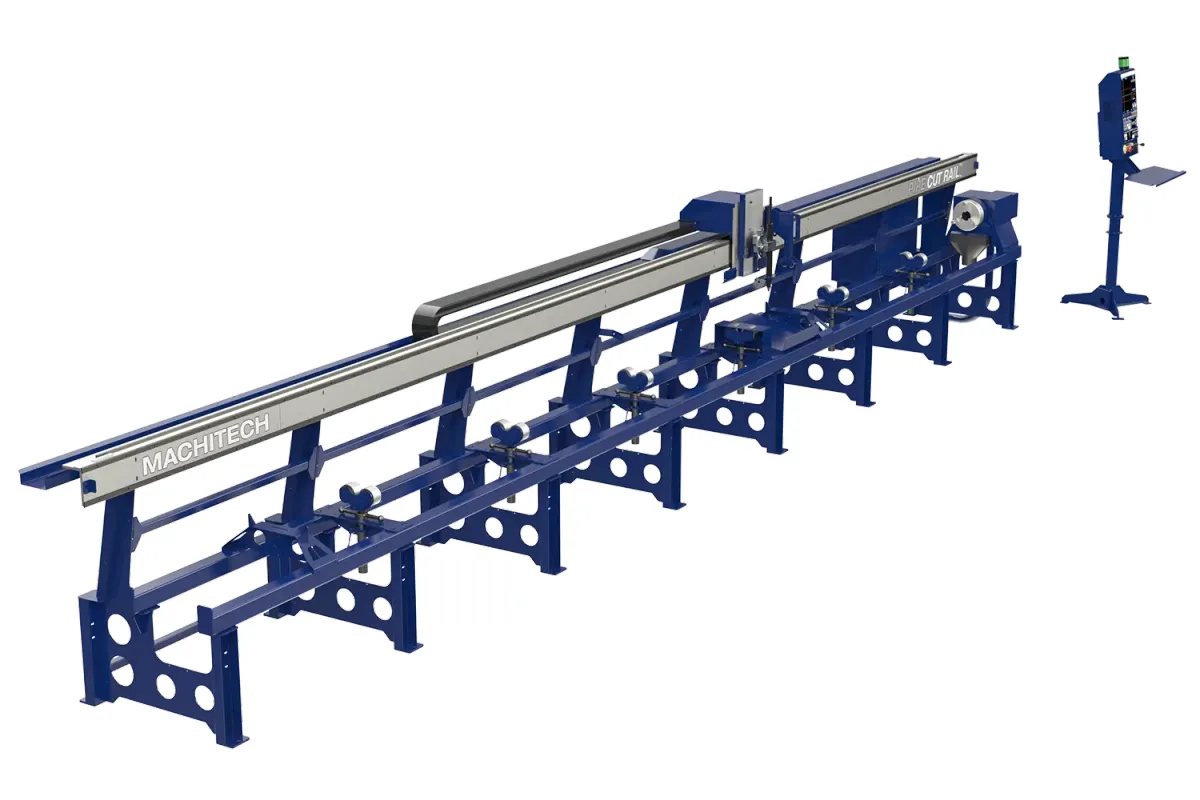

Machitech Pipe Cut Rail
Image: machitech.com, Machitech Automation
Key Specifications
Accuracy
Repeatability
min pipe diameter
max pipe diameter
plasma source
cutting zone length
How much does the Machitech Pipe Cut Rail cost?
Price estimate
We do not have a price for the Machitech Pipe Cut Rail that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Handrail is what the Machitech Pipe Cut Rail is built for. It is the smallest of Machitech's pipe machines, taking round pipe from 1.3 in (33 mm) to 8 in (203 mm) in a cutting zone of 21 ft or 24 ft, and it runs on Hypertherm Powermax air plasma only.
Railing work is repetitive and light: copes where a rail meets a post, mitres at corners, and holes for pickets. None of it needs high-definition plasma or a 5-axis head, and the machine is stripped back to match. The spec table lists the 5-axis bevel head and fume extraction as not available. A manual bevel head is included for mitres and saddles.
The mechanics are simple on purpose. A linear gantry carries the torch along the pipe on a double v-bearing system, which grips the rail from top and bottom to stop vertical play. Pipe is loaded from the front onto 6 fixed roller supports, each adjusted by hand for height and alignment, and a pressure roller arm holds the material down during the cut. The chuck drives rotation and is set and clamped manually.
Stated performance is 500 ipm (12,700 mm/min) maximum cutting speed with 0.002 in (0.05 mm) positional accuracy and 0.001 in (0.03 mm) repeatability, the same table figures as the larger pipe machines. Workpiece weight is rated at 25 lbs/ft. Programming differs from the rest of the family: this model uses Hypertherm Rotary Tube Pro, a parametric tool that needs no 3D CAD, where the Pipe Cut SL uses PypeServer. Torch height control is automatic, and the control is the Machitech NX4.
Full Specifications
| Parameter | Value |
|---|---|
| Min Pipe Diameter | 1.3 in (33 mm) |
| Max Pipe Diameter | 8 in (203 mm) |
| Plasma Source | Hypertherm Powermax45XP to 125 |
| Cutting Zone Length | 21 ft or 24 ft |
| Support Rollers | 6 units |
| Max Cutting Speed | 500 ipm (12,700 mm/min) |
| Positioning Accuracy | 0.002 in (0.05 mm) |
| Repeatability | 0.001 in (0.03 mm) |
| Workpiece Weight | 25 lbs/ft |
| CNC Control | Machitech NX4 CNC |
| Software | Hypertherm Rotary Tube Pro |
| Chuck | Manual chuck height and clamping |
| Fume Extraction | Not available |
| Manual Bevel Head | Included |
| Bevel Head 5 Axis | Not available |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Sized for railing work: 1.3 in (33 mm) to 8 in (203 mm) pipe
- Manual bevel head included for mitres and saddles
- Front loading onto 6 height-adjustable roller supports
- Rotary Tube Pro software needs no 3D CAD experience
- Automatic torch height control and magnetic torch breakaway
Limitations
- No fume extraction is available
- No 5-axis bevel head is available
- Air plasma only (Powermax45XP to 125)
- Cutting zone is 21 ft or 24 ft; the 42 ft zone is offered on the Pipe Cut SL
- Chuck and supports are adjusted manually
Best For
Frequently Asked Questions
01
Handrail fabrication. Machitech describes it as designed for accurate handrail and pipe cutting, with a rigid rail system, chuck-driven rotation, fixed roller supports, a manual bevel system and automatic torch height control.
02
Diameters from 1.3 in (33 mm) to 8 in (203 mm), in a cutting zone of 21 ft or 24 ft. Workpiece weight is rated at 25 lbs/ft, and the pipe rests on 6 roller supports.
03
No. The spec table lists fume extraction and the 5-axis bevel head as not available on this model. Both are offered on the Pipe Cut SL, which also takes pipe up to 12 in (305 mm).
04
Hypertherm Rotary Tube Pro CAD/CAM software, which imports from 3D CAD or builds tubes and branches from parametric input. The plasma source is a Hypertherm Powermax45XP to 125. The control is the Machitech NX4.
