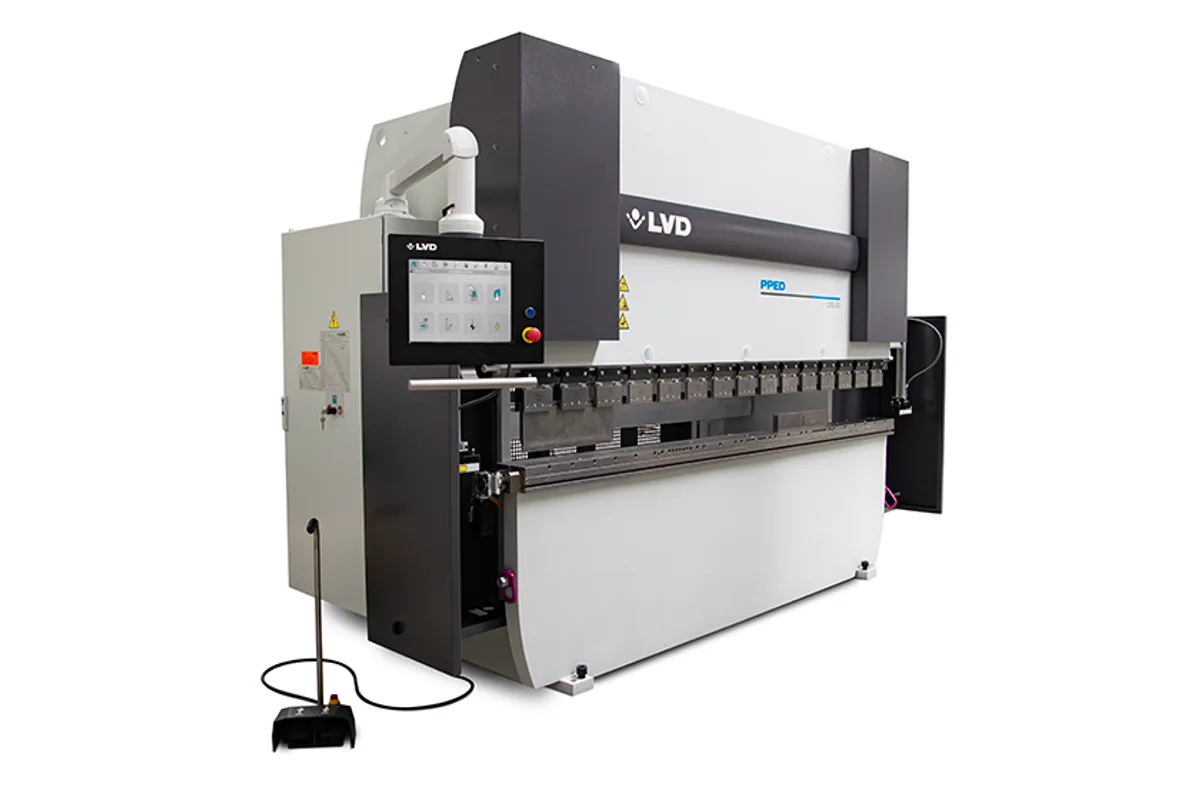

LVD PPED 165/40
Image: lvdgroup.com, LVD
Key Specifications
pressing force
bending length
width between columns
ram stroke
open height
throat depth
How much does the LVD PPED 165/40 cost?
Price estimate
We do not have a price for the LVD PPED 165/40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Four-metre bending starts here in the PPED line. The LVD PPED 165/40 puts 1,650 kN on a 4,000 mm (157.5 in) working length, and it is the lightest-force machine LVD sells in this series at that length.
That combination defines its use. Spread over the whole bed, 1,650 kN is a thin-sheet force: long cladding panels, trays, door skins, light sections. Shorter parts in heavier gauge can still use the full tonnage on part of the bed. The table's limit of 1,000 kN/m applies to those concentrated loads.
The uprights are 3,150 mm (124.0 in) apart. A full-length part therefore reaches into the frames, where the gap is 250 mm (9.8 in). If long parts with deep flanges are the main work, the PPED 200/40 has a 300 mm gap on the same bed.
Nothing in the drive changes with the extra length. The PPED 165/30 and this machine share an 18 kW motor, a 300 L tank and speeds of 110 mm/s approach, 10 mm/s working and 100 mm/s return. Stroke is 200 mm (7.9 in), open height 500 mm (19.7 in).
On a four-metre bed, order the version with crowning. LVD makes CNC crowning standard on PPED-5 and PPED-7 models of this size, and it is the feature that keeps the angle constant from the ends to the middle.
Full Specifications
| Parameter | Value |
|---|---|
| Pressing Force | 1,650 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Width Between Columns | 3,150 mm (124.0 in) |
| Ram Stroke | 200 mm (7.9 in) |
| Open Height | 500 mm (19.7 in) |
| Throat Depth | 250 mm (9.8 in) |
| Table Width | 180 mm (7.1 in) |
| Max Table Load | 1,000 kN/m |
| Working Height | 970 mm (38.2 in) |
| Approach Speed | 110 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 100 mm/s |
| Motor Power | 18 kW |
| Oil Tank Capacity | 300 L |
Specifications sourced from lvdgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 mm (157.5 in) working length from an 18 kW machine
- 110 mm/s approach speed carried over from the three-metre model
- 3,150 mm (124.0 in) between uprights
- CNC crowning standard on the PPED-5 and PPED-7 versions
- 4-axis backgauge (X, R, Z1, Z2) available as standard equipment of the version
Limitations
- 1,650 kN is modest for a four-metre bed
- 250 mm (9.8 in) gap restricts flange depth on full-length parts
- 500 mm (19.7 in) of open height
- No machine weight in LVD's table for planning the foundation
Best For
Frequently Asked Questions
01
It depends on thickness and die opening, which LVD's table does not address. The force is the same as on the three-metre PPED 165/30, so on a full-length bend less is available for each metre. The next step in this length is the PPED 200/40 with 2,000 kN.
02
3,150 mm (124.0 in) between the uprights, with a 250 mm (9.8 in) gap in the side frames for parts that run the full 4,000 mm (157.5 in).
03
They are an option. LVD describes front supports that can be positioned quickly along the entire bending line. For long, thin blanks they are worth having, since the sheet otherwise hangs from the die.
04
Approach 110 mm/s, working 10 mm/s, return 100 mm/s. In CE countries LVD supplies the machine with a safety system as standard, and the working speed is limited to the safety norm.
