LICO LNT-65S

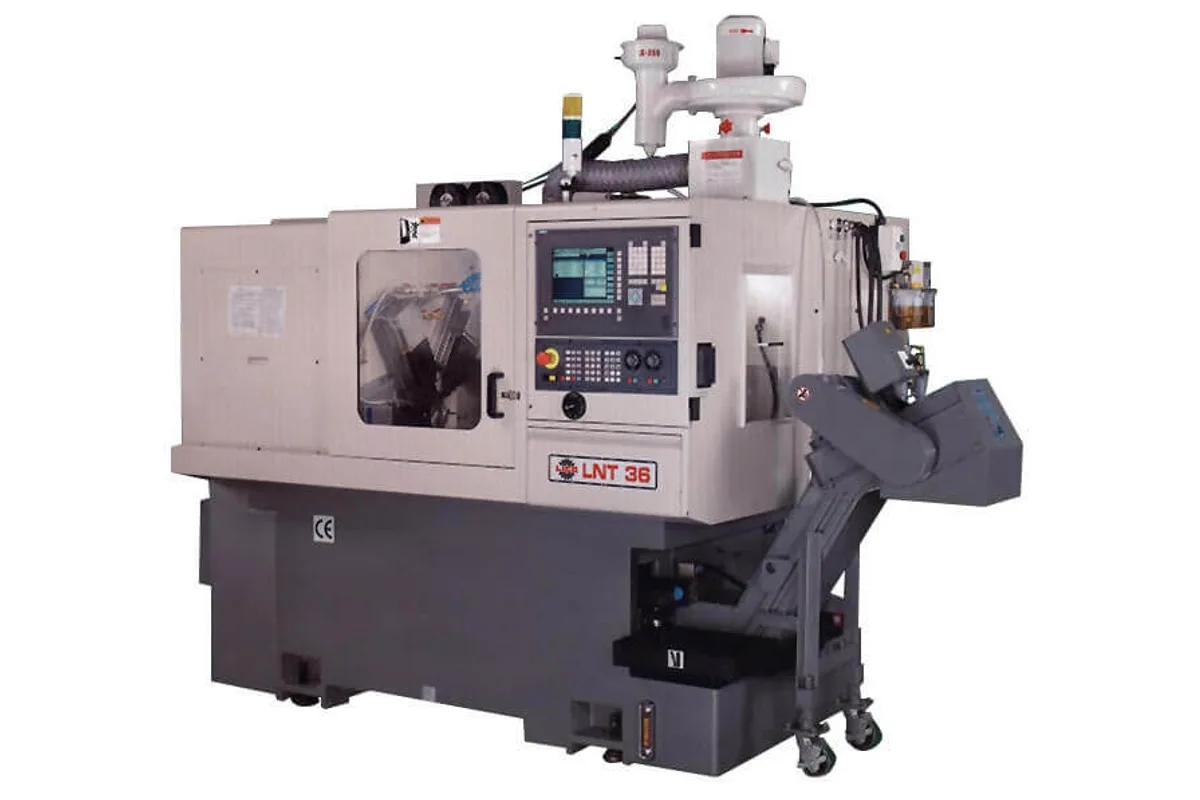

Image: licomachinery.com, LICO
Key Specifications
Max Spindle
Spindle Power
bar capacity
spindle center height
collet chuck type
spindle nose
How much does the LICO LNT-65S cost?
Price estimate
We do not have a price for the LICO LNT-65S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The LICO LNT-65S is the largest multi-slide CNC automatic in the LNT S series, with a 65 mm (2.56 in) collet bar capacity and a 4,000 rpm spindle on an ISO A2-6 nose. LICO names plumbing fittings, vehicle and aviation parts among the work the series is meant for, and names aluminum, brass, steels, high alloy steels and stainless steels as materials.
Bar this size asks more of the spindle than of the slides. The through hole is 78 mm (3.1 in) with a 66 mm (2.6 in) draw tube, the collet chuck is an F72, and the motor is 20 kW (27 HP) with the S840Dsl control or 15 kW (20 HP) with the M730. That is the same motor rating as the LNT-51S, which runs to 4,500 rpm.
The bed is described as rib reinforced, with the Z-axis slide base and bed in one piece and a wide span between the Z-axis linear ways. Those statements matter more here than on the small sizes, because the listed weight is the same 3,200 kg (7,040 lb) net across the series while the bar is heavier.
Tool travels are no larger than on the smaller models. The main turret has 160 mm (6.3 in) of X travel and the compound slide 70 mm (2.75 in), so the machine suits short parts of large diameter, not shafts. For the back end, the pick-off device is listed with a 4 in chuck and a TNS42E65 collet chuck among its options, each with a Ø65 capacity in the table.
Services to plan for: 30 kVA of connected load, a 200 L coolant tank with a 1 kW (1.3 hp) pump, and a 30 L hydraulic tank.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | 65 mm (2.56 in) |
| Spindle Center Height | 1,000 mm (40 in) |
| Collet Chuck Type | F72 (65) |
| Spindle Nose | ISO A2-6 |
| Spindle Bore | 78 mm (3.1 in) spindle / 66 mm (2.6 in) draw tube |
| Spindle Motor Power | 20 kW (27 HP) with S840Dsl; 15 kW (20 HP) with M730 |
| Max Spindle Speed | 4,000 rpm |
| Compound Slide Travel | Z 115 mm (4.52 in) / X 70 mm (2.75 in) |
| Compound Slide Rapid Traverse | Z 25 m/min (984 ipm) / X 15 m/min (591 ipm) |
| Compound Slide Working Feed | 5 m/min (197 ipm) |
| Resolution | 0.001 mm (0.0001 in) |
| Turret Stations | 8 |
| Turret Tool Shank | VDI-30 x 55 / □20 mm / Ø25 mm |
| Main Turret X Travel | 160 mm (6.3 in) |
| Main Turret Z Travel Lnts T3 | 750 mm (29.53 in) (LNTS-T3 version) |
| Turning Tool Section | 20 mm (3/4 in) square |
| Turret Indexing Time | 0.28 sec / 180° - 0.6 sec |
| Second Turret Stations | 8 (Turret #2 / T2E Turret) |
| Third Turret Travel | Z 200 mm (7.9 in) / X 150 mm (5.9 in) |
| Pick Off Collet Chuck Type | TNS42 / TNS42E65 / HAINBUCH32 / 4 in chuck |
| Pick Off Max Chuck Capacity | Ø42 / Ø65 / Ø32 / Ø65 mm |
| Pick Off Live Tool Motor Power | 3.3 kW (4.4 HP) with S840Dsl; 3.7 kW (5 HP) with M730 |
| Pick Off Speed Max | 3,000 rpm |
| Back Machining Tool Section | 20 mm square |
| Back Machining Boring Bar Max | 25 mm (1.0 in) |
| Machine Dimensions | 2,804 x 1,848 x 1,935 mm (110 x 72 x 76 in) (L x W x H) |
| Machine Weight | 3,200 kg (7,040 lb) net; 4,000 kg (8,800 lb) gross |
| Hydraulic Tank Capacity | 30 L |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Coolant Tank Capacity | 200 L |
| Coolant Pump Motor | 1 kW (1.3 hp) |
| Lubrication | 2 L, 10 c.c. / 10 min |
| Power Requirement | 30 kVA |
Specifications sourced from licomachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 65 mm (2.56 in) bar capacity, the largest in the LNT S series
- Spindle through hole of 78 mm (3.1 in) on an ISO A2-6 nose with an F72 collet chuck
- 20 kW (27 HP) spindle motor with the S840Dsl control
- One-piece Z-axis slide base and bed, and automatic lubrication to all slideways
- High pressure coolant and a chip conveyor with cart are available as optional accessories
Limitations
- Maximum spindle speed is 4,000 rpm, the lowest of the four sizes; the LNT-36S reaches 6,000 rpm
- Motor rating is no higher than on the LNT-51S, which is listed at the same 20 kW (27 HP) with the S840Dsl
- Main turret X travel is 160 mm (6.3 in), the same as on the smaller models
- With the M730 control the spindle motor is 15 kW (20 HP)
Best For
Frequently Asked Questions
01
The collet bar capacity is 65 mm (2.56 in), using an F72 collet chuck. The spindle through hole measures 78 mm (3.1 in) and the draw tube through hole 66 mm (2.6 in).
02
Maximum spindle speed is 4,000 rpm. The smaller LNT-51S is listed at 4,500 rpm with the same motor rating of 20 kW (27 HP) with the S840Dsl control or 15 kW (20 HP) with the M730.
03
Two of the four pick-off chucks in the table are listed with a Ø65 capacity: the TNS42E65 collet chuck and the 4 in chuck. The TNS42 and HAINBUCH32 are smaller. The capacities row reads Ø42 / Ø65 / Ø32 / Ø65 mm, and the pick-off runs to 3,000 rpm.
04
05
LICO says the LNT series is ideal for machining all kinds of materials and names aluminum, brass, steels, high alloy steels and stainless steels. The page gives no cutting data, so cycle times for a given part have to come from LICO.
