Koike Aronson VersaGraph Extreme

Specs verified 2026-10-05 · koike.com Updated 2026-10-05

Image: koike.com, Koike Aronson

Key Specifications

Rapid Traverse

1,400 ipm (35.6 m/min)

Accuracy

.015 in (0.38 mm) (compensated machine motion in 72 in, measured with laser interferometer)

Repeatability

.005 in (0.13 mm)

effective cutting width

2500: 96 in (2,438 mm); 3100: 120 in (3,048 mm); 3700: 144 in (3,658 mm); 5000: 192 in (4,877 mm); 6300: 240 in (6,096 mm); 7500: 288 in (7,315 mm)

effective cutting width 2 slave stations

2500: 120 in (3,048 mm); 3100: 144 in (3,658 mm); 3700: 168 in (4,267 mm); 5000: 216 in (5,486 mm); 6300: 264 in (6,706 mm); 7500: 312 in (7,925 mm)

distance between floor mount pads

2500: 171 in (4,343 mm); 3100: 195 in (4,953 mm); 3700: 219 in (5,563 mm); 5000: 267 in (6,782 mm); 6300: 315 in (8,001 mm); 7500: 363 in (9,220 mm)

How much does the Koike Aronson VersaGraph Extreme cost?

Price estimate

Uncertain

We do not have a price for the Koike Aronson VersaGraph Extreme that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

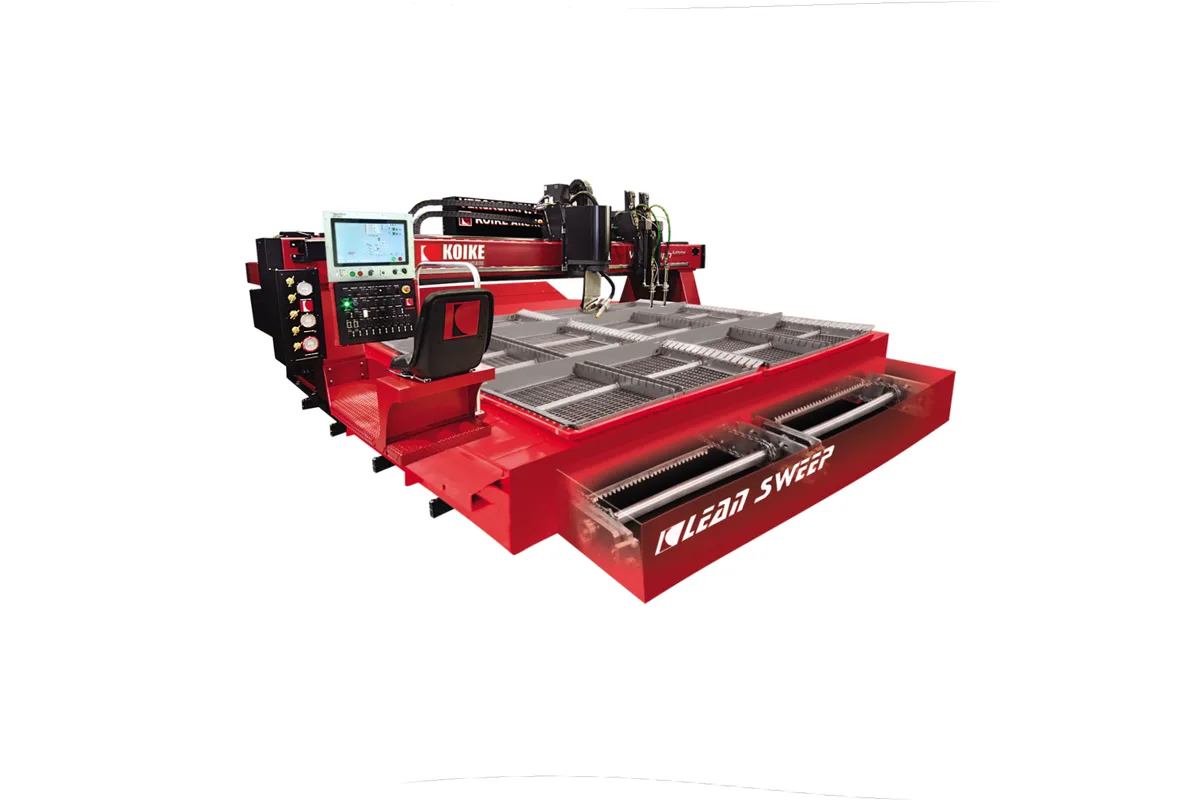

The Koike Aronson VersaGraph Extreme is the widest and heaviest gantry in the maker's plasma and oxy-fuel range. Six models are listed, from the 2500 with 96 in (2,438 mm) of effective cutting width to the 7500 with 288 in (7,315 mm), twice the width of the largest MasterGraph. Table capacity is 12 in (305 mm) and plasma systems run from 200 to 800 amp.

It is the only Koike gantry here that lists 4 plasma or marker stations and two full-contour plasma bevel heads as an option. Together with up to 10 oxy-fuel stations, 9 slave stations and 10 tools, that suits a plant that cuts several plates or several strips at once across a very wide table. The oxy-fuel gas system is Servo Gas, rated for 10 in (254 mm) of thickness.

Koike publishes motion accuracy for this model: .015 in (0.38 mm) accuracy and .005 in (0.13 mm) repeatability, as compensated machine motion in 72 in measured with a laser interferometer, and the machines are tested to ISO 230-2. Rapid traverse is 1,400 ipm (35.6 m/min) and maximum contour speed 600 ipm (15.2 m/min), from 6 hp (4.5 kW) AC servo drives on the X and Y axes.

The rail is floor mounted, a 37 KG triple machined section that can be extended for more cutting length or for additional machines on a common rail. At 437 in (11,100 mm) of machine width on the 7500, the building bay and crane coverage need checking early. The control is the Hypertherm Edge Connect and the power requirement is 480/3/60 at 30 AMP. The brochure prints an effective cutting length that does not agree with the maker's other gantry tables, so it is left out here; the product page quotes cutting lengths of 10 to 100 ft.

Full Specifications

Parameter	Value
Effective Cutting Width	2500: 96 in (2,438 mm); 3100: 120 in (3,048 mm); 3700: 144 in (3,658 mm); 5000: 192 in (4,877 mm); 6300: 240 in (6,096 mm); 7500: 288 in (7,315 mm)
Effective Cutting Width 2 Slave Stations	2500: 120 in (3,048 mm); 3100: 144 in (3,658 mm); 3700: 168 in (4,267 mm); 5000: 216 in (5,486 mm); 6300: 264 in (6,706 mm); 7500: 312 in (7,925 mm)
Distance Between Floor Mount Pads	2500: 171 in (4,343 mm); 3100: 195 in (4,953 mm); 3700: 219 in (5,563 mm); 5000: 267 in (6,782 mm); 6300: 315 in (8,001 mm); 7500: 363 in (9,220 mm)
Machine Rail Gauge	2500: 189 in (4,801 mm); 3100: 213 in (5,410 mm); 3700: 237 in (6,020 mm); 5000: 285 in (7,239 mm); 6300: 333 in (8,458 mm); 7500: 381 in (9,677 mm)
Machine Width	2500: 245 in (6,223 mm); 3100: 269 in (6,833 mm); 3700: 293 in (7,442 mm); 5000: 341 in (8,661 mm); 6300: 389 in (9,881 mm); 7500: 437 in (11,100 mm)
Machine Rail Support	Floor mounted
Table Capacity	12 in (305 mm)
Rapid Traverse Rate	1,400 ipm (35.6 m/min)
Contour Speed Max	600 ipm (15.2 m/min)
Positioning Accuracy	.015 in (0.38 mm) (compensated machine motion in 72 in, measured with laser interferometer)
Repeatability	.005 in (0.13 mm)
CNC Control	Hypertherm Edge Connect
Drive System	6 hp (4.5 kW) AC servo
Max Number of Tools	10
Max Slave Stations	9
Max Plasma or Marker Stations	4
Max Oxy Fuel Stations	10
Plasma Systems	200-800 amp plasma systems
Oxy Fuel Gas System	Servo Gas (10 in (254 mm) max thickness)
Power Requirement	480/3/60 @ 30 AMP

Specifications sourced from koike.com — verified 2026-10-05

Strengths & Limitations

Strengths

Effective cutting width up to 288 in (7,315 mm) on the 7500
Up to 4 plasma or marker stations and 10 oxy-fuel stations
Published motion accuracy of .015 in (0.38 mm) with .005 in (0.13 mm) repeatability, tested to ISO 230-2
Two full-contour plasma bevel heads can be fitted as an option
Table capacity of 12 in (305 mm) and plasma systems from 200 to 800 amp

Limitations

Machine width of 245 in (6,223 mm) to 437 in (11,100 mm) needs a wide bay
The Servo Gas oxy-fuel system is rated for 10 in (254 mm) of thickness, below the 12 in (305 mm) table capacity
Needs 480/3/60 power; no other voltage is listed
Bevel heads, oxy-fuel stations and marking station are options

Best For

Shipbuilding and service-center plate up to 24 ft wide Multi-plasma production with up to 4 plasma or marker stations Two-head contour beveling of wide plate Heavy oxy-fuel strip cutting with up to 10 stations

Frequently Asked Questions

01 How wide is the VersaGraph Extreme?

Effective cutting width is 96 in (2,438 mm) on the 2500, 120 in (3,048 mm) on the 3100, 144 in (3,658 mm) on the 3700, 192 in (4,877 mm) on the 5000, 240 in (6,096 mm) on the 6300 and 288 in (7,315 mm) on the 7500. A second column for 2 slave stations runs from 120 in (3,048 mm) to 312 in (7,925 mm).

02 How many torches can the VersaGraph Extreme carry?

The table lists a maximum of 10 tools, 9 slave stations, 10 oxy-fuel stations and 4 plasma or marker stations. Koike's product page also offers two full-contour plasma bevel heads as an option.

03 How accurate is the VersaGraph Extreme?

Koike states machine motion accuracy of .015 in (0.38 mm) and repeatability of .005 in (0.13 mm), as compensated machine motion in 72 in, measured with a laser interferometer. All machines are tested to ISO 230-2 standards.

04 What control, drives and power does it use?

The machine CNC is the Hypertherm Edge Connect. The drive system is 6 hp (4.5 kW) AC servo, and the brochure names 18 Amp Bosch/Rexroth drives. The power requirement is 480/3/60 at 30 AMP, with the plasma systems on their own supply.

05 How does it differ from the MasterGraph EX2?

In width and in station count. The MasterGraph EX2 stops at 144 in (3,658 mm) of effective cutting width with 5 slave stations and lists 2 plasma or marker stations and 8 oxy-fuel stations. The VersaGraph Extreme reaches 288 in (7,315 mm) and lists 4 and 10. Both have 1,400 ipm (35.6 m/min) rapid traverse.
