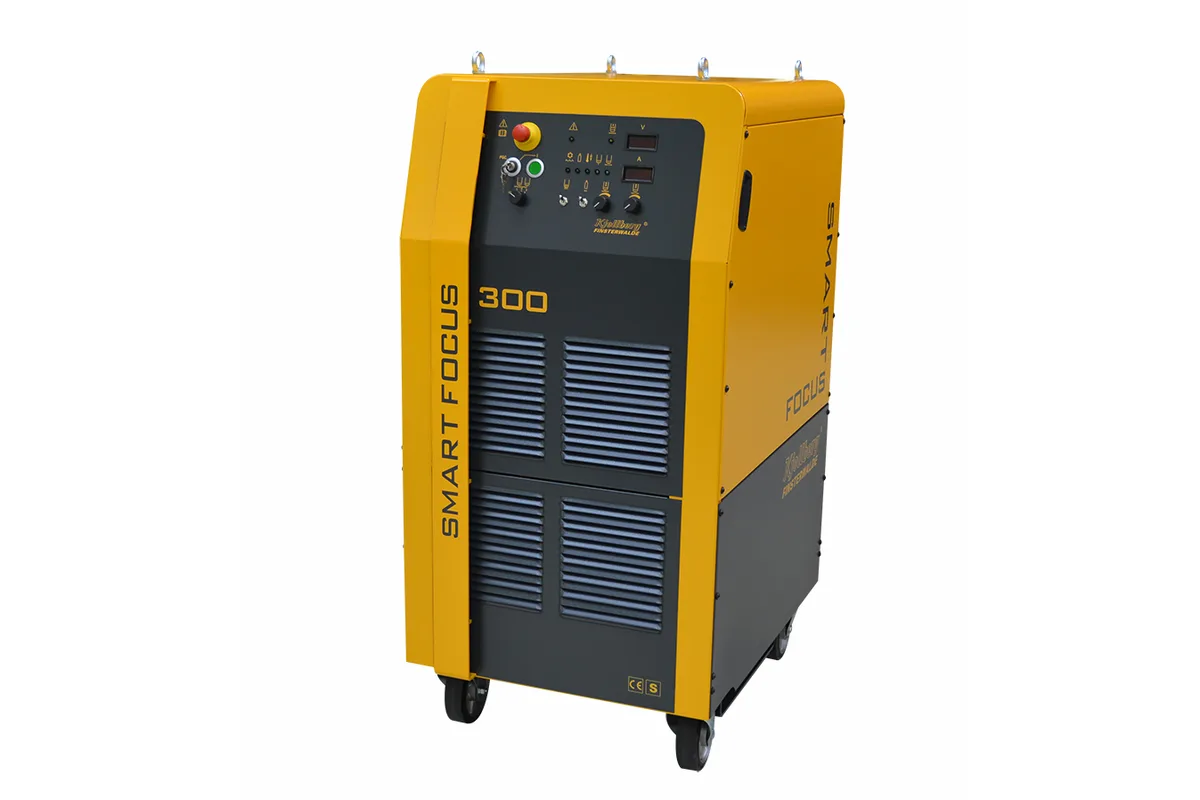

Kjellberg Smart Focus 300
Image: kjellberg.de, Kjellberg
Key Specifications
cutting current
marking current
cutting range maximum
cutting range recommended
piercing
duty cycle
How much does the Kjellberg Smart Focus 300 cost?
Price estimate
We do not have a price for the Kjellberg Smart Focus 300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Kjellberg Smart Focus 300 covers medium and heavy plate in the Smart Focus series: 35 - 300 A of cutting current, a maximum cutting thickness of 80 mm (3.1 in) and a recommended range of 1 - 60 mm (0.04 - 2.4 in). Kjellberg's listing describes it as the model for consistent results in series production.
Its recommended range is the argument for it. The 60 mm that the Smart Focus 200 lists as its maximum is, on this unit, the top of the band recommended for regular work. Piercing rises as well, to 40 mm (1.6 in). A shop that has been running the Smart Focus 200 at its limit gets the same plate back inside the comfortable range.
The step costs supply capacity more than floor space. Cabinet size is unchanged at 1030 x 680 x 1450 mm. Weight goes to 488 kg (1,076 lb), the slow fuse to 125 A and the connected load to max. 79 kVA, all on 3x 400 V, 50 Hz and at a 100 % duty cycle rated at an ambient temperature of 40 °C.
Torches are the same as on the smaller units, a PerCut 2000 machine torch with a PerCut 4000 quick change head. The plasma gas row lists O2, Ar / H2, N2 and air, and swirl gases are O2, N2, F5 and Air, with F5 being forming gas. Marking uses 10 - 50 A.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Current | 35 - 300 A |
| Marking Current | 10 - 50 A |
| Cutting Range Maximum | 80 mm (3.1 in) |
| Cutting Range Recommended | 1 - 60 mm (0.04 - 2.4 in) |
| Piercing | 40 mm (1.6 in) |
| Duty Cycle | 100 % (ambient temperature 40 °C) |
| Plasma Machine Torch | PerCut 2000 |
| Quick Change Head | PerCut 4000 |
| Torch Clamping Diameter | 50.8 mm (2.0 in) |
| Plasma Gases | O2, Ar / H2, N2, air |
| Marking Gases | Ar, N2, Air |
| Swirl Gases | O2, N2, F5, Air |
| Mains Voltage | 3x 400 V, 50 Hz |
| Fuse Slow | 125 A |
| Connected Load | max. 79 kVA |
| Machine Dimensions | 1030 x 680 x 1450 mm (40.6 x 26.8 x 57.1 in) |
| Machine Weight | 488 kg (1,076 lb) |
Specifications sourced from kjellberg.de — verified 2026-10-06
Strengths & Limitations
Strengths
- Recommended cutting range of 1 - 60 mm (0.04 - 2.4 in), with a maximum of 80 mm (3.1 in)
- Piercing listed at 40 mm (1.6 in)
- Cutting current of 35 - 300 A at a 100 % duty cycle
- Same 1030 x 680 x 1450 mm cabinet as the Smart Focus 200
- Contour Cut, HiFinox and Ar/H2 Mix technologies are listed for the unit
Limitations
- Needs a 125 A slow fuse and a connected load of max. 79 kVA
- Piercing ends at 40 mm, short of the 60 mm top of the recommended range
- Still uses the PerCut 2000 machine torch; the PerCut 4000 machine torch is listed for the Smart Focus 400
- Weighs 488 kg, in a cabinet that is placed once and stays put
Best For
Frequently Asked Questions
01
The maximum is 80 mm (3.1 in). The recommended range is 1 - 60 mm and piercing is listed at 40 mm. Between the piercing figure and the maximum, cuts are started from the plate edge.
02
The Smart Focus 200 lists 35 - 200 A, a maximum of 60 mm and piercing at 30 mm. The Smart Focus 300 lists 35 - 300 A, a maximum of 80 mm and piercing at 40 mm. Both use the same cabinet size; the 300 needs a 125 A slow fuse.
03
It is listed for 3x 400 V, 50 Hz with a 125 A slow fuse and a connected load of max. 79 kVA. Kjellberg notes that other voltages and frequencies are available upon request. The power source weighs 488 kg.
04
The plasma gas row lists O2, Ar / H2, N2 and air. The series brochure lists Ar, N2 and Air as marking gases and O2, N2, F5 and Air as swirl gases. Gas supply is either the manual PGE-300 or the automated PGV-300.
