Johnford Vertical Machining Centers (VMC)

Johnford DMC-4100S

Q: How much does the Johnford DMC-4100S cost?

The price estimate for the Johnford DMC-4100S is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/johnford-dmc-4100s#price; the request is passed to Johnford or an authorised dealer.

Specs verified 2026-10-04 · johnford.com.tw Updated 2026-10-04

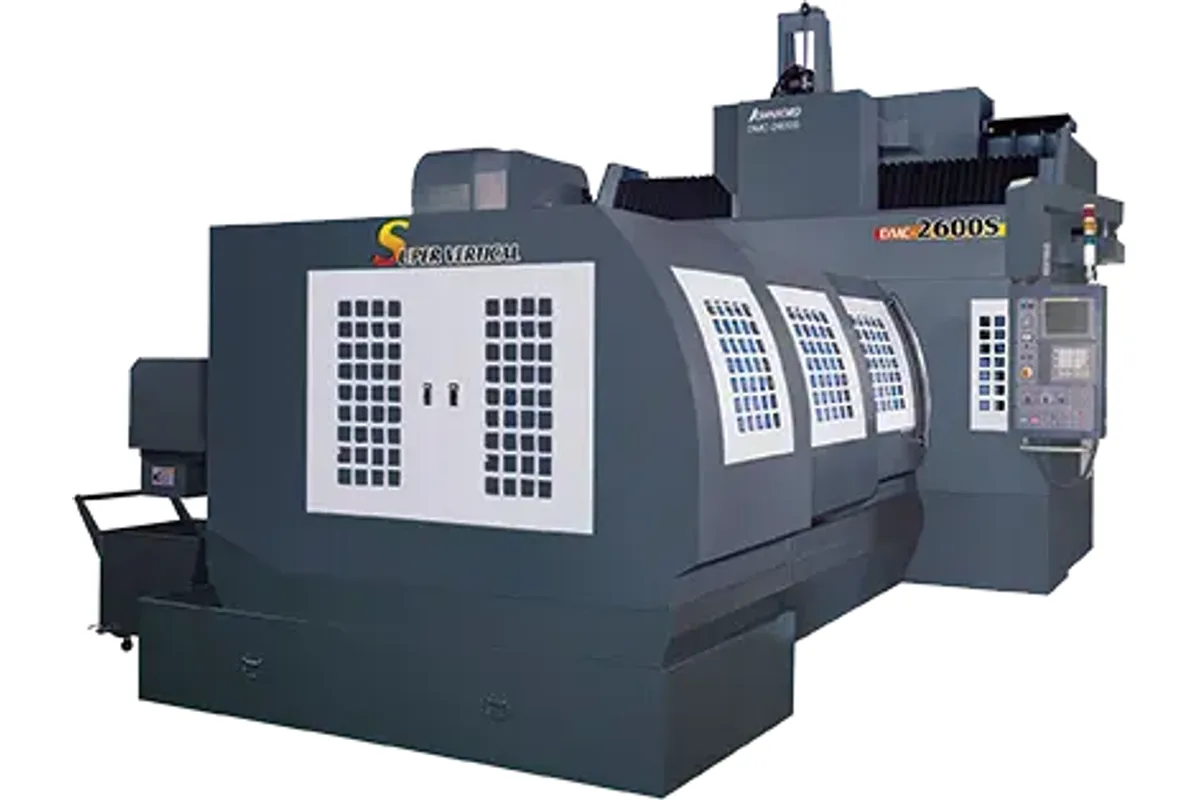

Johnford DMC-S series (the picture the maker shows for Medium DMC-S; DMC-2600S shown)

Image: johnford.com.tw, Johnford

Key Specifications

Spindle Taper

BT-40 / CAT-40; HSK A63(Opt.)

Tool Capacity

Arm type 24 ; 32 / 40 (Opt.)

Table Size

4,200 x 1,500 mm (165.4 x 59 in)

Spindle Power

7.5 / 11 kW (10.1 / 14.8 hp) Hi Lo Gear; 18.5 / 23 kW (24.8 / 30.8 hp) Built-in

distance between columns

1,796 mm (70.7 in)

x axis travel

4,100 mm (161.4 in)

How much does the Johnford DMC-4100S cost?

Price estimate

Uncertain

We do not have a price for the Johnford DMC-4100S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

At four metres the DMC-S frame becomes a different installation. The Johnford DMC-4100S has 4,100 mm (161.4 in) of X travel and a 4,200 x 1,500 mm (165.4 x 59 in) table, and it weighs 37,500 kg (82,500 lb). The DMC-3100S, one size down, weighs 26,000 kg (57,270 lb). Length grows to 11,590 mm (456.3 in) and height to 4,013 mm (158 in).

So the planning questions come first: crane capacity, foundation, door height, and the route into the building. The working figures are familiar from the rest of the frame. Y is 1,778 mm (70 in), Z is 800 mm (31.5 in), and the distance between columns is 1,796 mm (70.7 in).

This is the 40-taper version. A BT-40 / CAT-40 spindle on a 70 mm (2.8 in) bearing turns at 8,000 or 10,000 rpm, with 12,000 rpm optional. The geared motor is 7.5 / 11 kW (10.1 / 14.8 hp) and the built-in alternative 18.5 / 23 kW (24.8 / 30.8 hp). On a four-metre table that points to work where the area matters more than the chip load: aluminium structural parts, large fixture plates, drilling and tapping patterns in long rails.

One limit does not scale with the table. The load rating is 10,000 kg (22,000 lb), unchanged from the DMC-2100S, which has roughly half the table length. Long steel parts reach that figure quickly. Johnford raises the rating only on the next two lengths, to 12,000 kg (26,400 lb) on the DMC-5100S and 14,000 kg (30,800 lb) on the DMC-6100S.

Full Specifications

Parameter	Value
Distance Between Columns	1,796 mm (70.7 in)
Table Size	4,200 x 1,500 mm (165.4 x 59 in)
X Axis Travel	4,100 mm (161.4 in)
Y Axis Travel	1,778 mm (70 in)
Z Axis Travel	800 mm (31.5 in)
Distance Spindle Nose to Table	150~950 mm (5.9~37.4 in)
Spindle Taper	BT-40 / CAT-40; HSK A63(Opt.)
Spindle Bearing Diameter	70 mm (2.8 in)
Spindle Speed	8,000, 10,000; 12,000 rpm (Opt.)
Spindle Motor Power	7.5 / 11 kW (10.1 / 14.8 hp) Hi Lo Gear; 18.5 / 23 kW (24.8 / 30.8 hp) Built-in
Rapid Traverse Xyz	12 / 12 / 12 m/min (472 / 472 / 472 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Max Tool Diameter Adjacent Pockets	Ø75 mm (Ø3 in)
Tool Capacity	Arm type 24 ; 32 / 40 (Opt.)
Max Tool Diameter (full magazine)	Ø100 mm (Ø4 in)
Max Tool Length	320 mm (12.6 in)
Max Tool Weight	10 kg (22 lb)
Tool Selection	Bi-direction random type, Shortest path
Max Table Load	10,000 kg (22,000 lb)
Machine Dimensions	11,590 x 4,600 x 4,013 mm (456.3 x 181.1 x 158 in)
Machine Weight	37,500 kg (82,500 lb)

Specifications sourced from johnford.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

4,100 mm (161.4 in) of X travel over a 4,200 x 1,500 mm (165.4 x 59 in) table
Spindle speeds of 8,000 and 10,000 rpm, with 12,000 rpm as an option
37,500 kg (82,500 lb) of machine under a 40-taper spindle
Standard Fanuc 0i-MF PLUS control with a 10.4 in LCD and Manual Guide i

Limitations

Table load stays at 10,000 kg (22,000 lb) despite the four-metre table
11,590 x 4,600 x 4,013 mm (456.3 x 181.1 x 158 in) footprint needs a planned foundation
Tools no longer than 320 mm (12.6 in) and no heavier than 10 kg (22 lb)
Rapids of 12 m/min (472 ipm) make long X moves slow

Best For

Aluminium structural parts and plates up to 4,100 mm long Drilling and tapping patterns along rails and beams Several smaller parts set up along one long table

Frequently Asked Questions

01 Why is the DMC-4100S so much heavier than the DMC-3100S?

The maker's table gives 37,500 kg (82,500 lb) for the DMC-4100S and 26,000 kg (57,270 lb) for the DMC-3100S, and the height rises from 3,883 mm (152.9 in) on the DMC-3100S to 4,013 mm (158 in). The page does not explain the change in construction; the figures show that the three longest S models form a heavier group.

02 What load can the DMC-4100S table carry?

10,000 kg (22,000 lb). That is the same rating as the shortest model of the frame, so parts that are heavy for their length need checking against it.

03 Is there a wider machine with the same X travel as the DMC-4100S?

Yes: the DMC-4100P has 4,100 mm (161.4 in) of X with 2,300 mm (90.5 in) of Y, a 4,200 x 2,050 mm (165.3 x 80.7 in) table rated 13,000 kg (28,600 lb), and weighs 42,200 kg (92,840 lb).

04 What spindle power does the DMC-4100S offer?

7.5 / 11 kW (10.1 / 14.8 hp) with the Hi Lo Gear drive, or 18.5 / 23 kW (24.8 / 30.8 hp) with the built-in spindle. For more power on the same frame, the DMC-4100SH has a 22 / 26 kW (29.5 / 34.9 hp) geared 50-taper spindle.
